252R Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 5.62"L X 3.25"W

Part	Weight [custom]	Weight [custom]	Features	Color	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Design	Height [z]	Height [z]	Ratings	Thickness	Thickness	Material	Material Flammability Rating

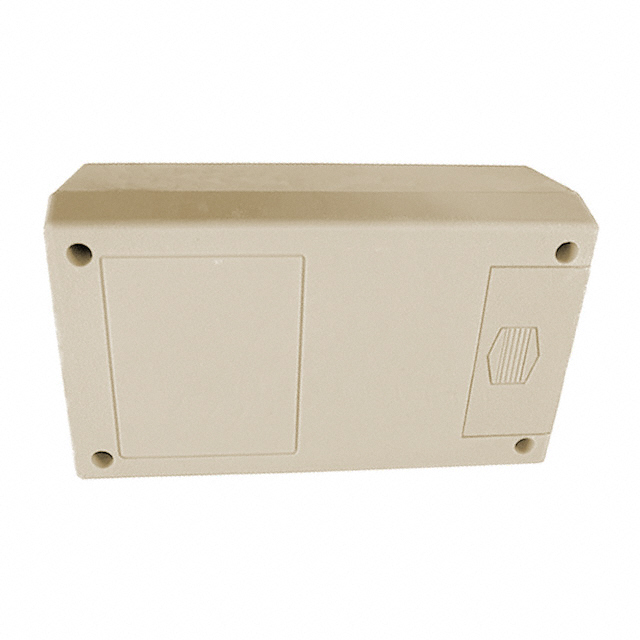

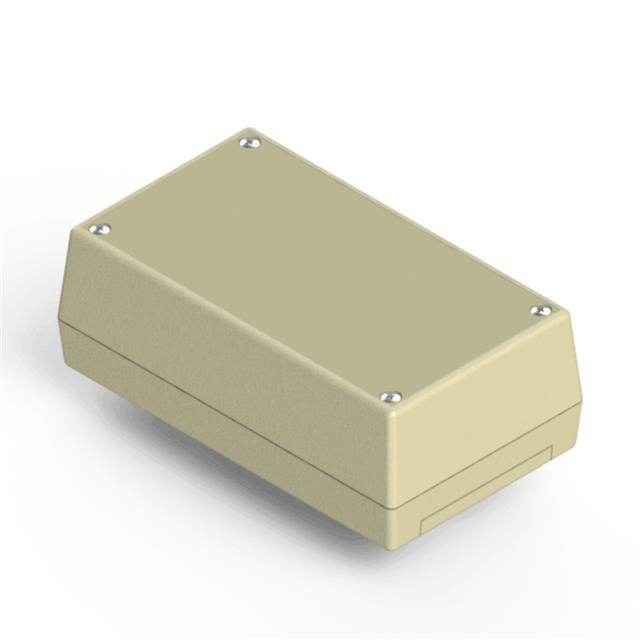

Serpac 252RI,AL	131.1 g	0.289 lb	9V Battery Compartment Front Access PCB Supports	Almond	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	50.8 mm	2 in	IP40 NEMA 1	2.54 mm	0.1 in	ABS Plastic	UL94 HB

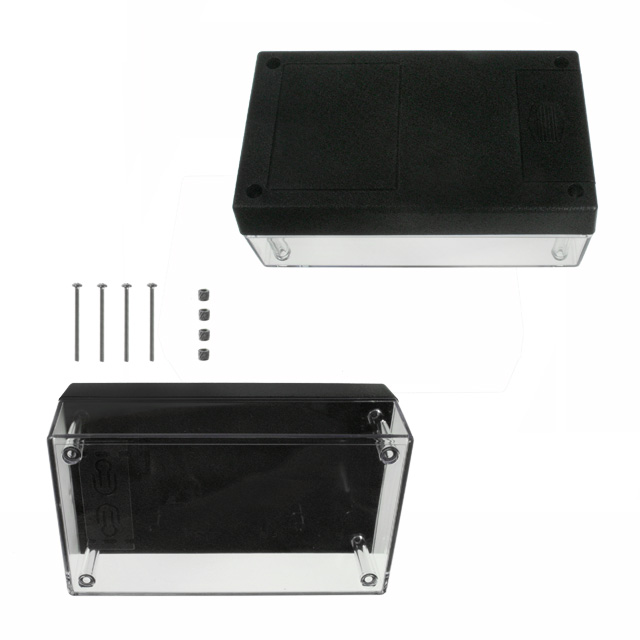

Serpac 252RC,BK	131.1 g	0.289 lb	9V Battery Compartment Front Access PCB Supports	Black Clear Cover/Door	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	50.8 mm	2 in	IP40 NEMA 1	2.54 mm	0.1 in	Plastic Polycarbonate

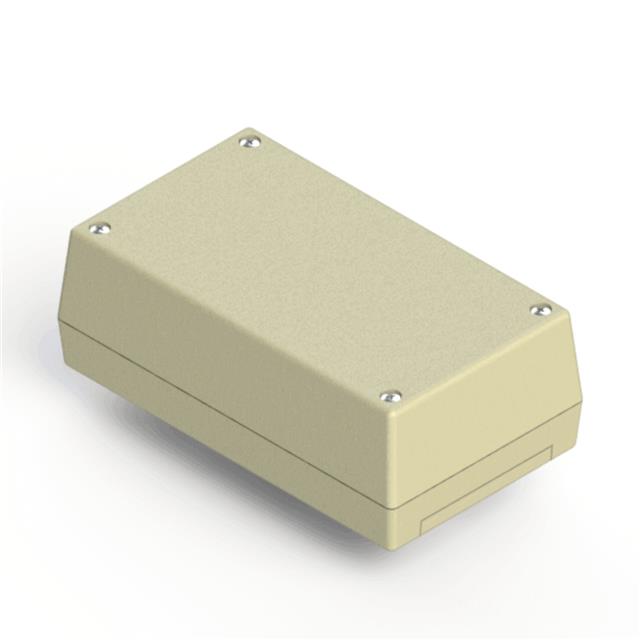

Serpac 252R,AL	131.1 g	0.289 lb	9V Battery Compartment Front Access PCB Supports	Almond	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	50.8 mm	2 in	IP40 NEMA 1	2.54 mm	0.1 in	ABS Plastic	UL94 HB

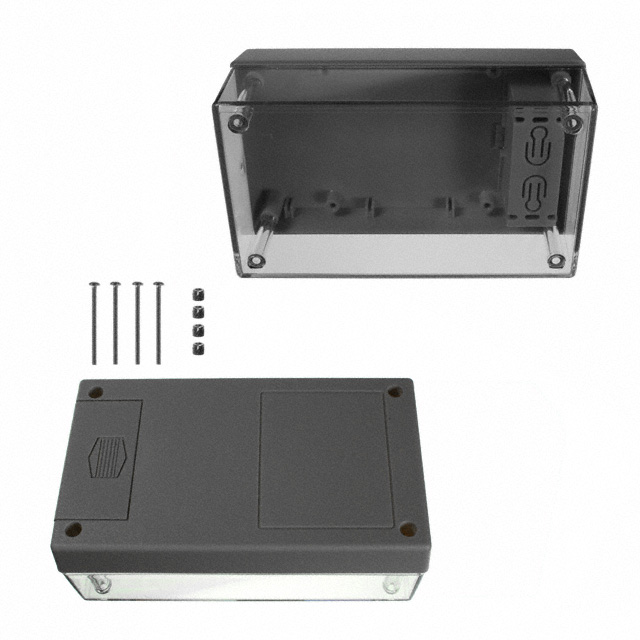

Serpac 252RC,AL	131.1 g	0.289 lb	9V Battery Compartment Front Access PCB Supports		Box	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	50.8 mm	2 in	IP40 NEMA 1	2.54 mm	0.1 in	Plastic Polycarbonate

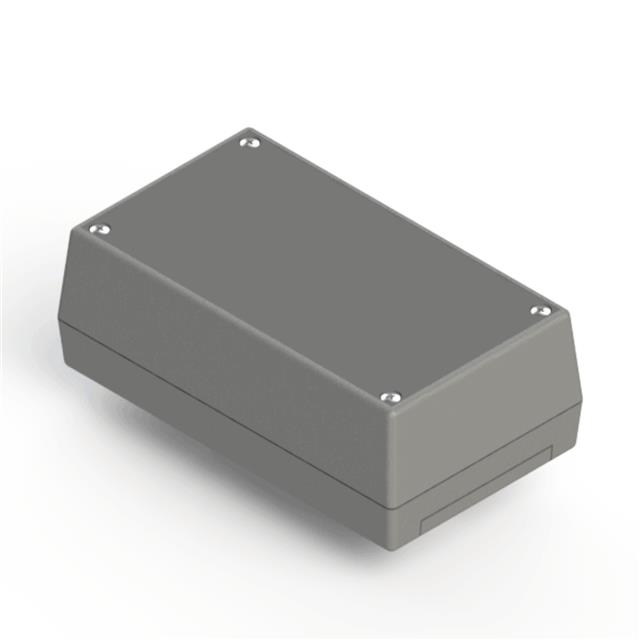

Serpac 252RI,GY	131.1 g	0.289 lb	9V Battery Compartment Front Access PCB Supports	Gray	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	50.8 mm	2 in	IP40 NEMA 1	2.54 mm	0.1 in	ABS Plastic	UL94 HB

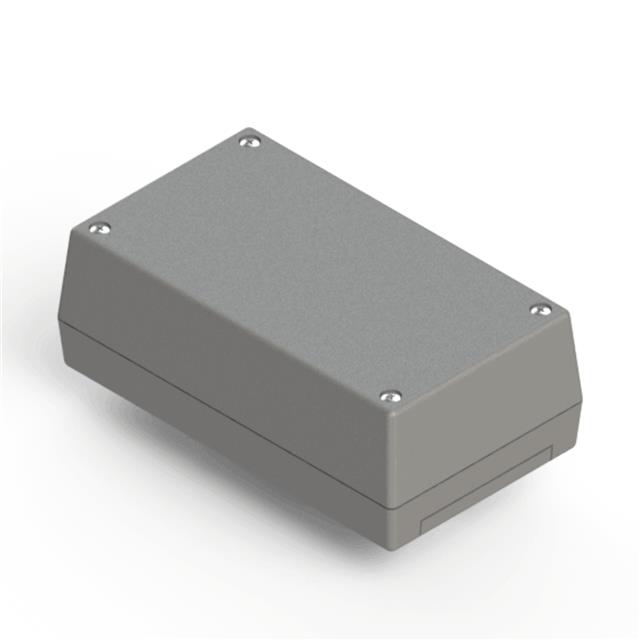

Serpac 252R,GY	131.1 g	0.289 lb	9V Battery Compartment Front Access PCB Supports	Gray	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	50.8 mm	2 in	IP40 NEMA 1	2.54 mm	0.1 in	ABS Plastic	UL94 HB

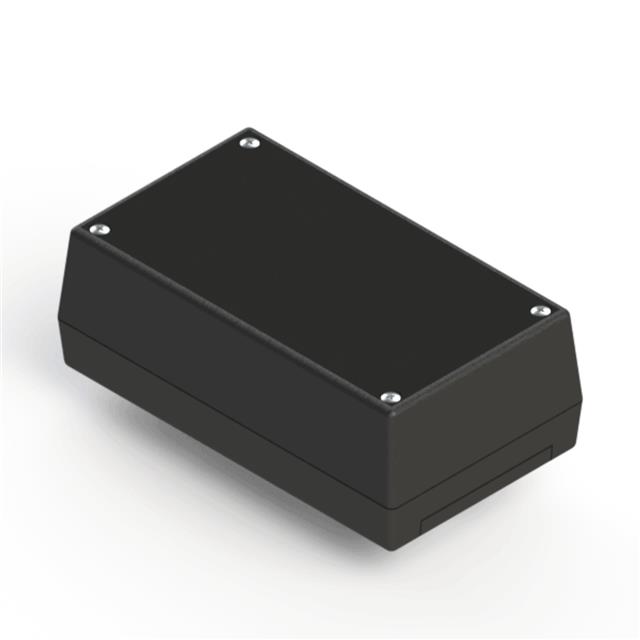

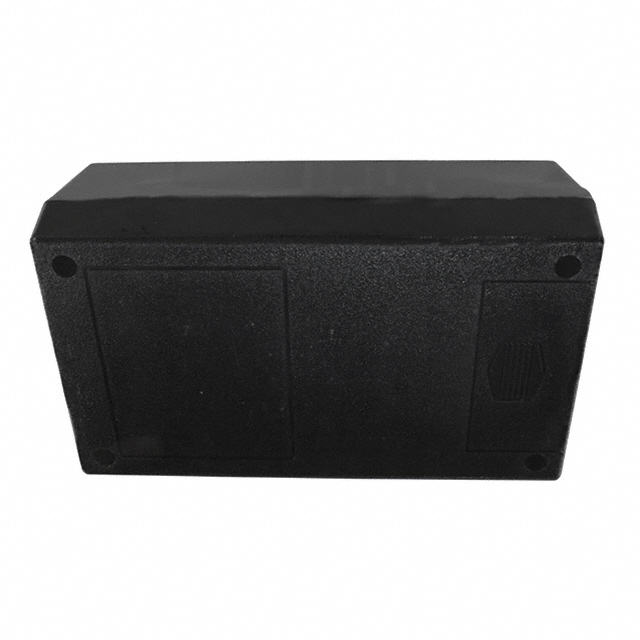

Serpac 252RI,BK	131.1 g	0.289 lb	9V Battery Compartment Front Access PCB Supports	Black	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	50.8 mm	2 in	IP40 NEMA 1	2.54 mm	0.1 in	ABS Plastic	UL94 HB

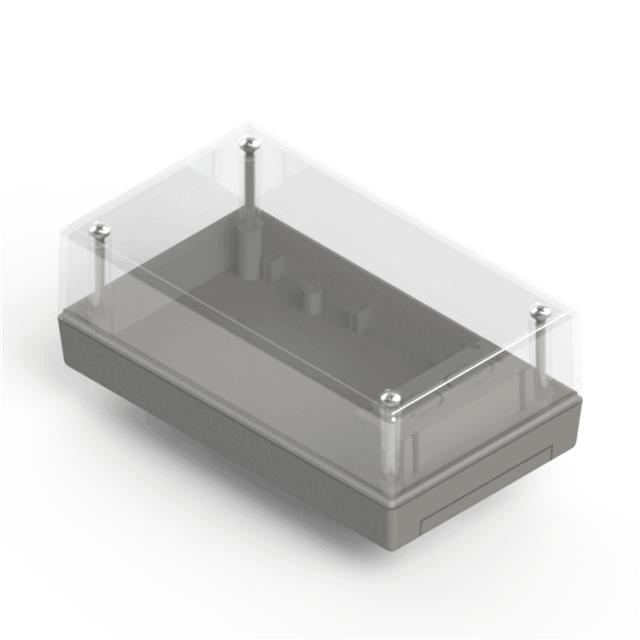

Serpac 252RC,GY	131.1 g	0.289 lb	9V Battery Compartment Front Access PCB Supports	Clear Cover/Door Gray	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	50.8 mm	2 in	IP40 NEMA 1	2.54 mm	0.1 in	Plastic Polycarbonate

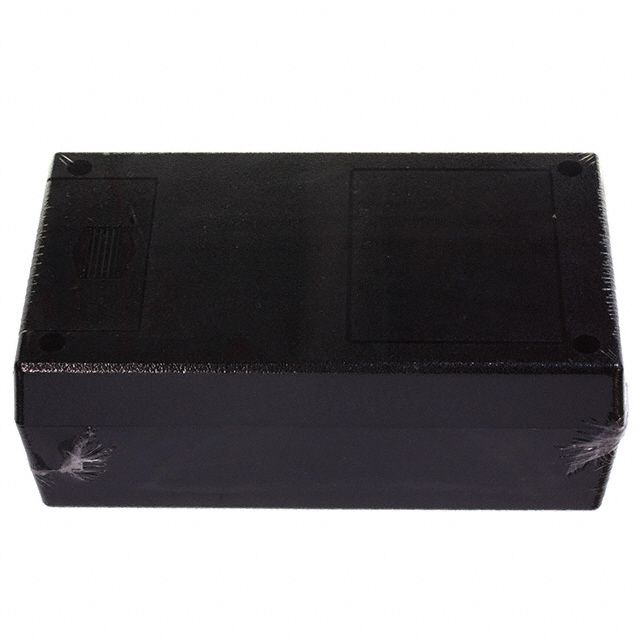

Serpac 252R,BK	131.1 g	0.289 lb	9V Battery Compartment Front Access PCB Supports	Black	Box	5.62 "	142.75 mm	82.55 mm	3.25 "	18.3 in²	118 cm²	Hand Held Split Sides	50.8 mm	2 in	IP40 NEMA 1	2.54 mm	0.1 in	ABS Plastic	UL94 HB
