PIM90 Series
Manufacturer: PULS, LP
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 91W
| Part | Minimum Load Required | Applications | Current - Output (Max) [Max] | Features | Input Type | Standard Number | Approval Agency | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Voltage - Isolation | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Output 1 | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

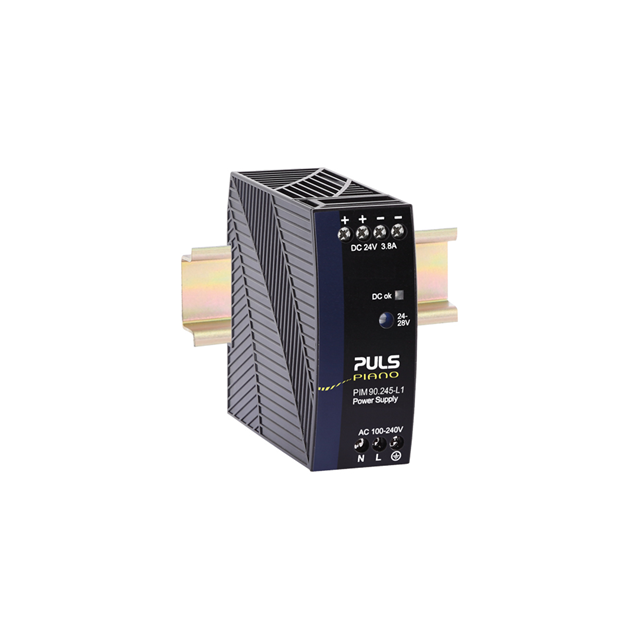

 PULS, LP | Industrial ITE (Commercial) Laboratory | 3.8 A | Adjustable Output Universal Input | AC | 61010-1 62368-1 UL 508 | CB CE cULus EAC | 90 VAC | 264 VAC | 500 V | 1 | 1.42 in | 90 mm | 91 mm | 3.58 in | 3.54 " | 36 mm | 70 °C | -25 °C | 93.8 % | 24 V | 91 W | |

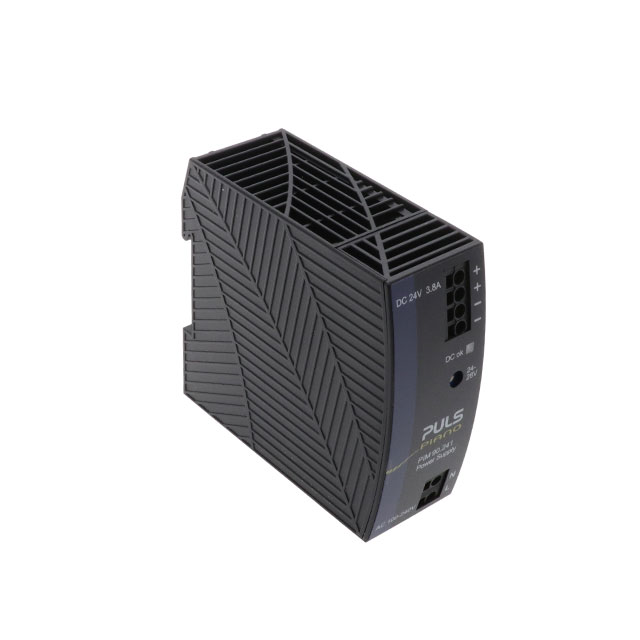

 PULS, LP | ITE (Commercial) Laboratory | 3.8 A | Adjustable Output PFC Universal Input | AC | 61010-1 62368-1 | CB CE cULus | 90 VAC | 264 VAC | 1 | 1.42 in | 90 mm | 91 mm | 3.58 in | 3.54 " | 36 mm | 70 °C | -10 °C | 93.8 % | 24 V | 91 W |
