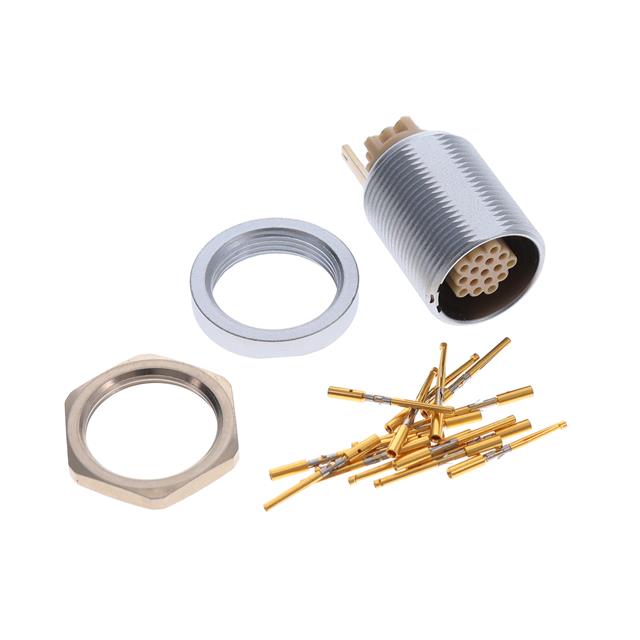

G53LAC-P Series
Manufacturer: ODU
Beta
⌘K
PANEL RECEPTACLE, STY G5, SER L,
| Part | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Fastening Type | Mounting Feature | Shell Finish | Shell Material | Connector Type | Current Rating (Amps) | Contact Finish - Mating | Features | Ingress Protection | Voltage Rating | Insert Material | Mounting Type | Contact Material | Termination | Number of Positions | Orientation | Primary Material | Shell Size - Insert | Shielding | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Push-Pull | Bulkhead - Front or Rear Side Nut | Chrome over Nickel | Brass | Receptacle Female Sockets | 10 A | Gold | Medical (IEC 60601 (2 MOOP/2 MOPP)) | IP50 - Dust Protected | 48 VDC | Polyetheretherketone (PEEK) | Panel Mount | Brass | Crimp | 16 | A | Metal | 3 TPI | Shielded | Silver | |
Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Push-Pull | Bulkhead - Front or Rear Side Nut | Chrome over Nickel | Brass | Receptacle Female Sockets | 6 A | Gold | Ground | IP50 - Dust Protected | 300 VDC | Polyetheretherketone (PEEK) | Panel Mount Through Hole | Brass | Solder | 30 | A | Metal | 3 TPI | Unshielded | Silver | |
Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Push-Pull | Bulkhead - Front or Rear Side Nut | Chrome over Nickel | Brass | Receptacle Female Sockets | 7.5 A | Gold | Ground | IP50 - Dust Protected | 300 VDC | Polyetheretherketone (PEEK) | Panel Mount | Brass | 30 | A | Metal | 3 TPI | Unshielded | Silver | ||
Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Push-Pull | Bulkhead - Front or Rear Side Nut | Chrome over Nickel | Brass | Receptacle Female Sockets | 7.5 A | Gold | Ground | IP50 - Dust Protected | 300 VDC | Polyetheretherketone (PEEK) | Panel Mount | Brass | 26 | A | Metal | 3 TPI | Unshielded | Silver | ||
Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Push-Pull | Bulkhead - Front or Rear Side Nut | Chrome over Nickel | Brass | Receptacle Female Sockets | 7.5 A | Gold | Ground | IP50 - Dust Protected | 333 V | Polyetheretherketone (PEEK) | Panel Mount | Brass | 20 | A | Metal | 3 TPI | Unshielded | Silver | ||
Industrial Medical Military Testing Equipment & Measurement | 120 °C | -40 C | Push-Pull | Bulkhead - Front or Rear Side Nut | Chrome over Nickel | Brass | Receptacle Female Sockets | 12 Amps | Gold | Ground | IP50 - Dust Protected | 450 V | Polyetheretherketone (PEEK) | Panel Mount | Brass | 10 | A | Metal | 3 TPI | Unshielded | Silver |
