814 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

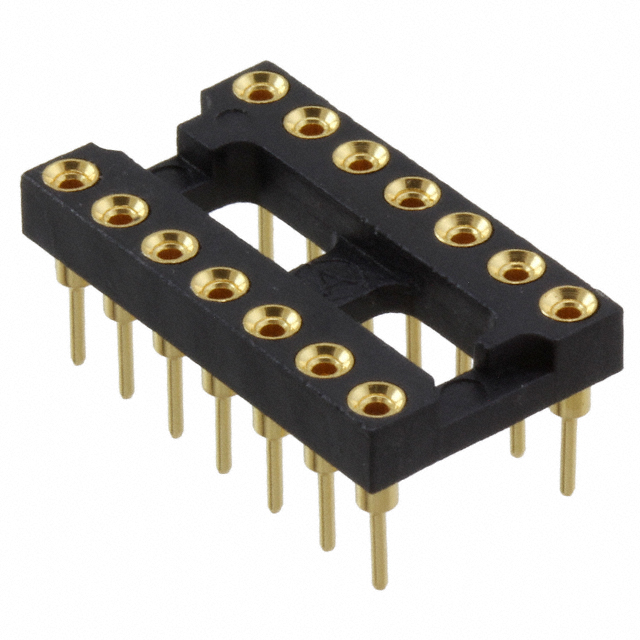

CONN IC DIP SOCKET 14POS GOLD
| Part | Current Rating (Amps) | Contact Resistance | Material Flammability Rating | Termination Post Length | Termination Post Length | Number of Positions or Pins (Grid) | Type | Type | Type | Contact Material - Post [custom] | Mounting Type | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Housing Material | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Material - Mating | Pitch - Post | Pitch - Post | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 3 A | 10 mOhm | UL94 V-0 | 0.125 in | 3.18 mm | 14 | 7.62 mm | 0.3 in | DIP | Copper Alloy | Through Hole | Solder | -55 C | 105 ░C | Open Frame | Polyester | 0.1 " | 2.54 mm | Gold | Beryllium Copper | 0.1 in | 2.54 mm | |||
 TE Connectivity AMP Connectors | 10 mOhm | UL94 V-0 | 0.125 in | 3.18 mm | 14 | 7.62 mm | 0.3 in | DIP | Copper | Through Hole | Solder | -55 C | 105 ░C | Open Frame | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | Gold | Beryllium Copper | 0.1 in | 2.54 mm | Gold | Flash | Flash |
