9LG0812 Series

Catalog

DC FAN AXIAL BALL BEARING 12V 10.8V TO 13.2V 36.3CFM 31DB 80 X 80 X 25.2MM LONG LIFE/LOW POWER CONSUMPTION/HIGH AIR FLOW/HIGH STATIC PRESSURE

Part	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Approval Agency	Bearing Type	Weight	Weight	Width [y]	Fan Type	Air Flow	Air Flow	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [z]	Size / Dimension [x]	Noise	Termination	Voltage - Rated	Static Pressure	Static Pressure	Features	RPM

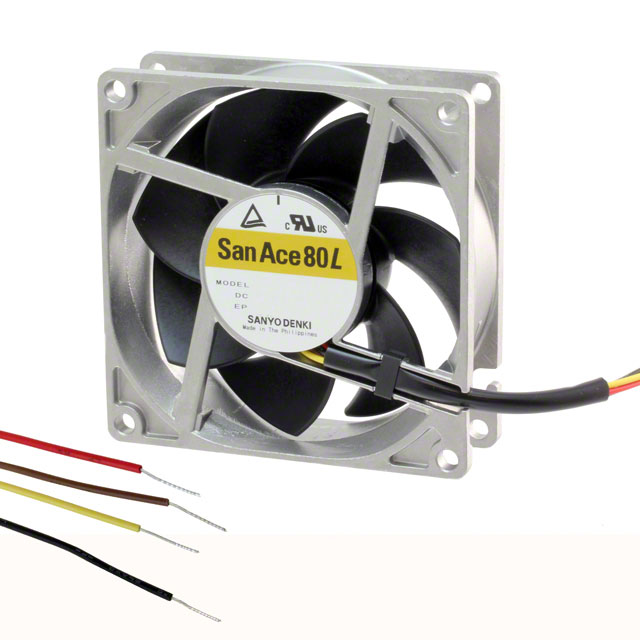

Sanyo Denki America Inc. 9LG0812P4H001	120 mA	Aluminum	180000 Hrs	10.8 VDC	13.2 VDC	Plastic	CSA TUV UL	Ball	130.18 g	0.287 lb	25 mm	Tubeaxial	36.3 CFM	1.02 m³/min	1.44 W	-20 ░C	70 °C	80 mm	80 mm	31 dB(A)	4 Wire Leads	12 VDC	42.3 Pa	0.17 in H2O	Locked Rotor Protection PWM Control Speed Sensor (Tach)	3700 RPM

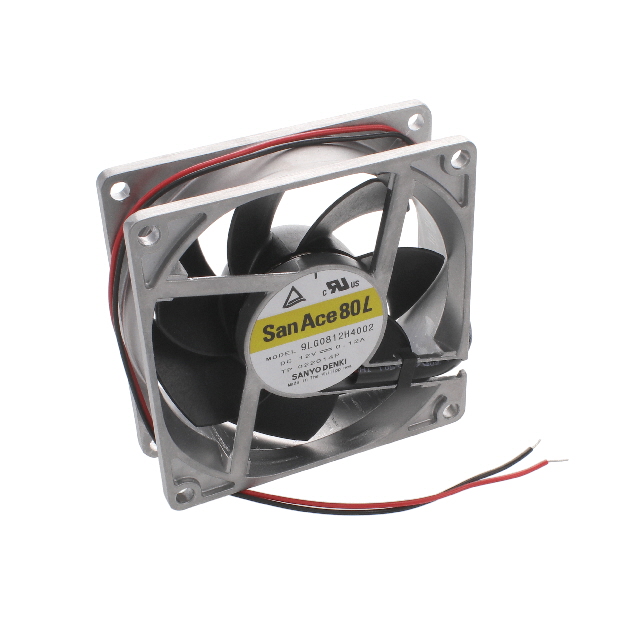

Sanyo Denki America Inc. 9LG0812H4002	120 mA	Aluminum	180000 Hrs	10.8 VDC	13.2 VDC	Plastic	CSA TUV UL	Ball			25 mm	Tubeaxial	36.3 CFM	1.02 m³/min	1.44 W	-20 ░C	70 °C	80 mm	80 mm	31 dB(A)	2 Wire Leads	12 VDC	42.3 Pa	0.17 in H2O		3700 RPM
