TS3L500AE Series

3.3-V, 2:1 (SPDT), 8-channel gigachannel LAN switch with LED switch & enhanced ESD protection

Catalog

3.3-V, 2:1 (SPDT), 8-channel gigachannel LAN switch with LED switch & enhanced ESD protection

Part	Supplier Device Package	On-State Resistance (Max) [Max]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	-3db Bandwidth	Switch Circuit	Mounting Type	Applications	Multiplexer/Demultiplexer Circuit	Package / Case	Number of Channels	Features

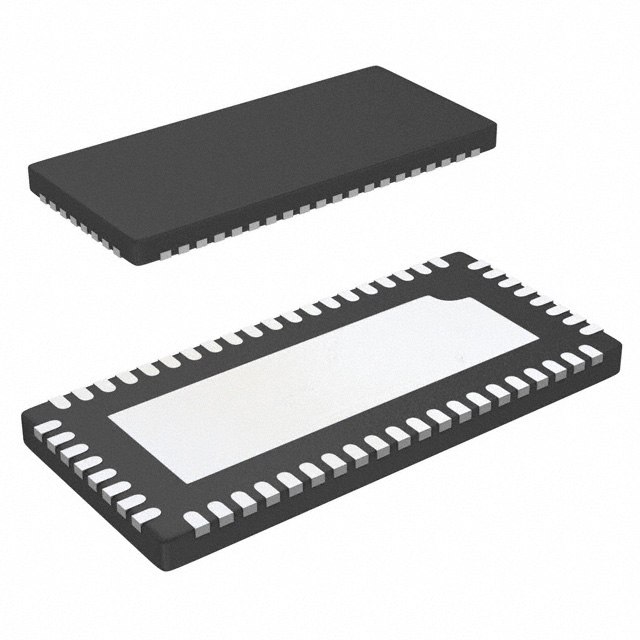

Texas Instruments TS3L500AERHUR	56-WQFN (5x11)	8 Ohm	3.6 V	3 V	85 °C	-40 °C	950 MHz	SPDT	Surface Mount	Networking	2:1	56-WFQFN Exposed Pad	11	10/100 1000 Base-T LVDS LVPECL
Texas Instruments TS3L500RHUR	56-WQFN (5x11)	6 Ohms	3.6 V	3 V	85 °C	-40 °C	1.1 GHz	SPDT	Surface Mount	Networking	2:1	56-WFQFN Exposed Pad	11	10/100 1000 Base-T LVDS LVPECL
Texas Instruments TS3L500RHURG4	56-WQFN (5x11)	6 Ohms	3.6 V	3 V	85 °C	-40 °C	1.1 GHz	SPDT	Surface Mount	Networking	2:1	56-WFQFN Exposed Pad	11	10/100 1000 Base-T LVDS LVPECL

Catalog

3.3-V, 2:1 (SPDT), 8-channel gigachannel LAN switch with LED switch & enhanced ESD protection

Key Features

• Wide Bandwidth (BW = 950 MHz Typ)Low Crosstalk (XTALK= –37 dB Typ)Low Bit-to-Bit Skew (tsk(o)= 100 ps Max)Low and Flat ON-State Resistance(ron= 4Typ, ron(flat)= 0.5Typ)Low Input/Output Capacitance(CON= 8 pF Typ)Rail-to-Rail Switching on Data I/O Ports(0 to 3.6 V)VCCOperating Range From 3 V to 3.6 VLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Performance8-kV IEC61000-4-2, Contact Discharge on Switch IOs3-kV Human Body Model Per JESD22-A114E14-kV Human Body Model (Switch Pins to GND)APPLICATIONS10/100/1000 Base-T Signal SwitchingDifferential (LVDS, LVPECL) Signal SwitchingAudio/Video SwitchingHub and Router Signal SwitchingWide Bandwidth (BW = 950 MHz Typ)Low Crosstalk (XTALK= –37 dB Typ)Low Bit-to-Bit Skew (tsk(o)= 100 ps Max)Low and Flat ON-State Resistance(ron= 4Typ, ron(flat)= 0.5Typ)Low Input/Output Capacitance(CON= 8 pF Typ)Rail-to-Rail Switching on Data I/O Ports(0 to 3.6 V)VCCOperating Range From 3 V to 3.6 VLatch-Up Performance Exceeds 100 mA Per JESD 78, Class IIESD Performance8-kV IEC61000-4-2, Contact Discharge on Switch IOs3-kV Human Body Model Per JESD22-A114E14-kV Human Body Model (Switch Pins to GND)APPLICATIONS10/100/1000 Base-T Signal SwitchingDifferential (LVDS, LVPECL) Signal SwitchingAudio/Video SwitchingHub and Router Signal Switching

Description

The TS3L500AE is a 16-bit to 8-bit multiplexer/demultiplexer LAN switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides additional I/Os for switching status indicating LED signals and includes high ESD protection. The device provides a low and flat ON-state resistance (ron) and an excellent ON-state resistance match. Low input/output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T. This device can be used to replace mechanical relays in LAN applications. It also can be used to route signals from a 10/100 Base-T ethernet transceiver to the RJ-45 LAN connectors in laptops or in docking stations. The TS3L500AE is a 16-bit to 8-bit multiplexer/demultiplexer LAN switch with a single select (SEL) input. SEL controls the data path of the multiplexer/demultiplexer. The device provides additional I/Os for switching status indicating LED signals and includes high ESD protection. The device provides a low and flat ON-state resistance (ron) and an excellent ON-state resistance match. Low input/output capacitance, high bandwidth, low skew, and low crosstalk among channels make this device suitable for various LAN applications, such as 10/100/1000 Base-T. This device can be used to replace mechanical relays in LAN applications. It also can be used to route signals from a 10/100 Base-T ethernet transceiver to the RJ-45 LAN connectors in laptops or in docking stations.
