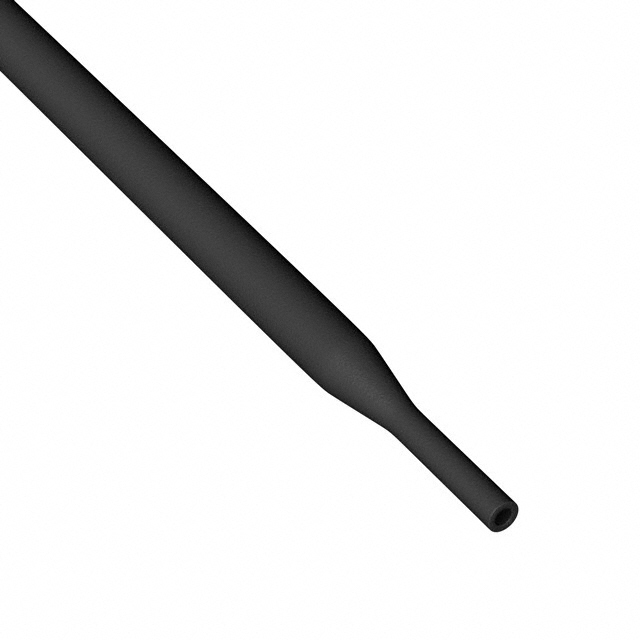

Q2-Z-5/8 Series

Manufacturer: Qualtek

Catalog

HEATSHRINK 5/8"-48" BLACK 1=1PC

Part	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Length [x]	Length [x]	Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life	Shrink Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Features	Material	Length	Length	Length
Qualtek Q2-Z-5/8-01-QB48IN-5	0.027 in	0.69 mm	8 mm	0.315 in	4 ft	1.22 m	Tubing Flexible	Black	-55 C	125 °C	0.63 in	16 mm	40 °C	14 °F	-50 °F	40 °C	144 Months	70 °C	1	2	Flame Retardant	Polyolefin (PO)
Qualtek Q2-Z-5/8-01-MS50FT	0.027 in	0.69 mm	8 mm	0.315 in			Tubing Flexible	Black	-55 C	125 °C	0.63 in	16 mm	40 °C	14 °F	-50 °F	40 °C	144 Months	70 °C	1	2	Flame Retardant	Polyolefin (PO)	50 ft	15.2 m
Qualtek Q2-Z-5/8-01-SS200FT	0.027 in	0.69 mm	8 mm	0.315 in			Tubing Flexible	Black	-55 C	125 °C	0.63 in	16 mm	40 °C	14 °F	-50 °F	40 °C	144 Months	70 °C	1	2	Flame Retardant	Polyolefin (PO)	200 ft	61 m
Qualtek Q2-Z-5/8-01-QB6IN-14	0.027 in	0.69 mm	8 mm	0.315 in			Tubing Flexible	Black	-55 C	125 °C	0.63 in	16 mm	40 °C	14 °F	-50 °F	40 °C	144 Months	70 °C	1	2	Flame Retardant	Polyolefin (PO)	0.5 '	152.4 mm	6 "
