749806 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

D SUB CONNECTOR, DB15, 15 CONTACTS, RECEPTACLE, CRIMP, DA, AMPLIMITE HDP-20 SERIES, STEEL BODY

Part	Voltage Rating	Dielectric Material	Color	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Connector Type	Contact Finish	Termination	Current Rating (Amps)	Mounting Type	Connector Style	Number of Rows [custom]	Flange Feature	Contact Finish Thickness	Shell Size, Connector Layout	Contact Type	Features	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout [x]

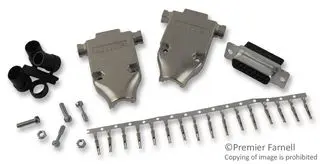

TE Connectivity AMP Connectors 749806-8	250 V	Glass Filled Nylon Polyamide (PA)	Black	Phosphor Bronze	-55 C	105 ░C	UL94 V-0	15	Receptacle Female Sockets	Gold	Crimp	Varies by Wire Gauge	Free Hanging (In-Line)	D-Sub	2	4-40 Cable Side Male Short Screw	Flash	2	Signal	Shielded
TE Connectivity AMP Connectors 749806-2	250 V	Glass Filled Nylon Polyamide (PA)	Black	Phosphor Bronze	-55 C	105 ░C	UL94 V-0	15	Receptacle Female Sockets	Gold	Crimp	Varies by Wire Gauge	Free Hanging (In-Line)	D-Sub	2	4-40 Cable Side Male Short Screw	Flash	2	Signal	Shielded
TE Connectivity AMP Connectors 749806-1	250 V	Glass Filled Nylon Polyamide (PA)	Black	Phosphor Bronze	-55 C	105 ░C	UL94 V-0	9	Receptacle Female Sockets	Gold	Crimp	Varies by Wire Gauge	Free Hanging (In-Line)	D-Sub	2	4-40 Cable Side Male Short Screw	Flash		Signal	Shielded	1	DE E

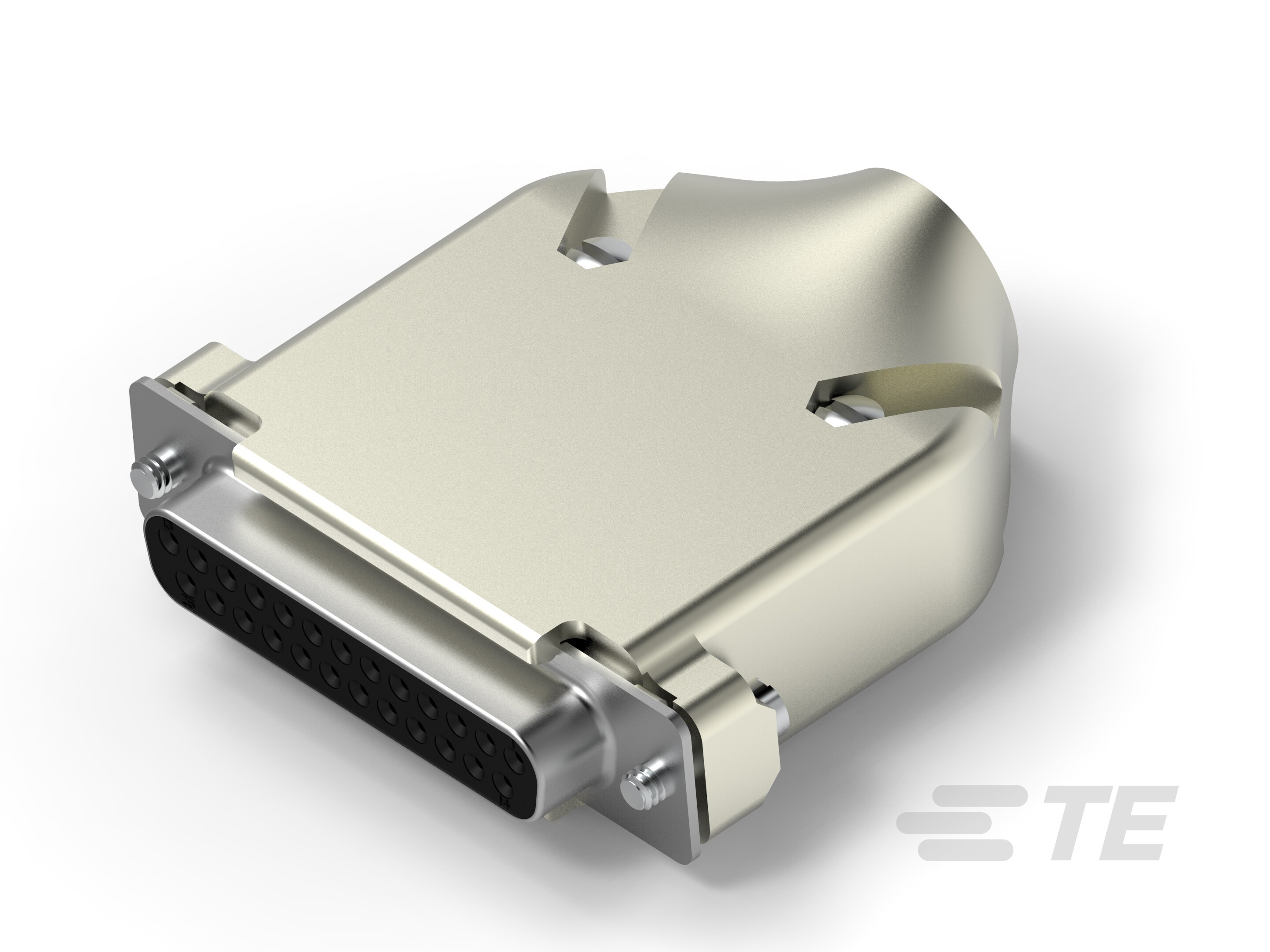

TE Connectivity AMP Connectors 749806-9	250 V	Glass Filled Nylon Polyamide (PA)	Black	Phosphor Bronze	-55 C	105 ░C	UL94 V-0	25	Receptacle Female Sockets	Gold	Crimp	Varies by Wire Gauge	Free Hanging (In-Line)	D-Sub	2	4-40 Cable Side Male Short Screw	Flash		Signal	Shielded			B DB	3
