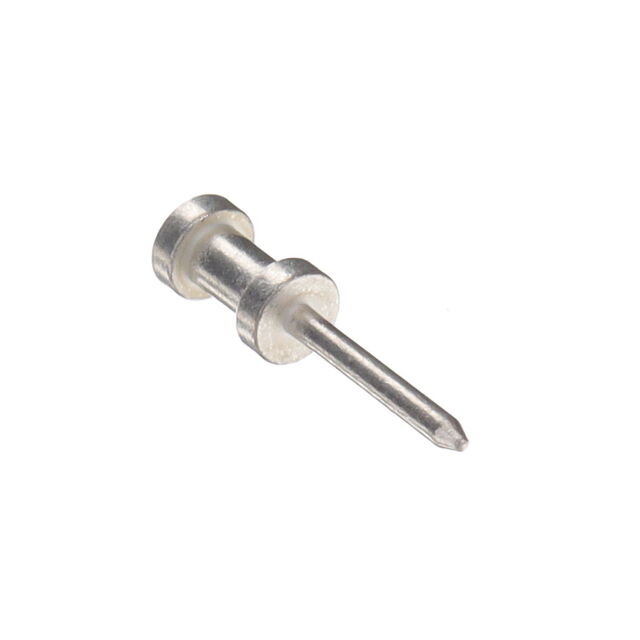

3132-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .030DIA GOLD
| Part | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Insulation | Length - Overall [x] | Length - Overall [x] | Terminal Type | Contact Material | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Mounting Type | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Length - Above Flange [x] | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Above Flange [diameter] | Pin Size - Above Flange |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 1.52 mm | 0.06 in | Non-Insulated | 10.03 mm | 0.395 " | PC Pin | Brass Alloy | Wire | 0.093 in | 2.36 mm | Gold | Free Hanging (In-Line) | Crimp | 0.125 " | 3.18 mm | 0.24 in | 6.1 mm | 50 µin | 1.27 µm | 0.03 in | 0.76 mm |
 Mill-Max Manufacturing Corp. | 1.52 mm | 0.06 in | Non-Insulated | 10.03 mm | 0.395 " | PC Pin | Brass Alloy | Wire | 0.093 in | 2.36 mm | Gold | Free Hanging (In-Line) | Crimp | 0.125 " | 3.18 mm | 0.24 in | 6.1 mm | 10 Áin | 0.25 Ám | 0.03 in | 0.76 mm |
 Mill-Max Manufacturing Corp. | 1.52 mm | 0.06 in | Non-Insulated | 10.03 mm | 0.395 " | PC Pin | Brass Alloy | Wire | 0.093 in | 2.36 mm | Tin | Free Hanging (In-Line) | Crimp | 0.125 " | 3.18 mm | 0.24 in | 6.1 mm | 200 Áin | 5.08 Ám | 0.03 in | 0.76 mm |
