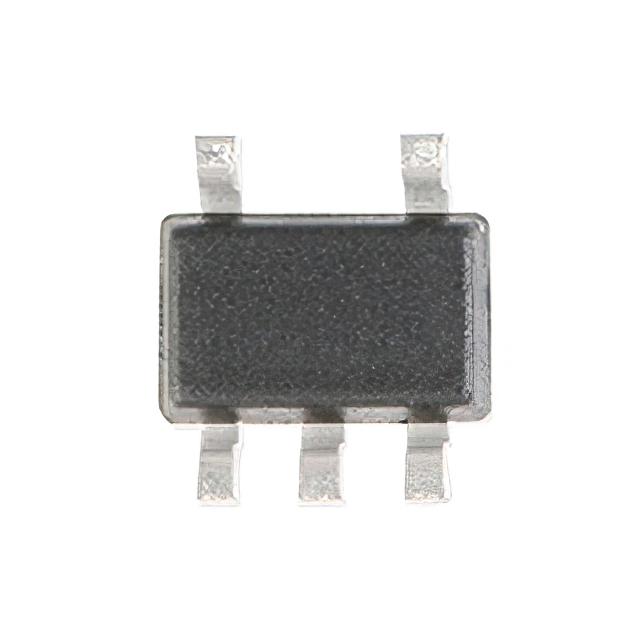

74LVC1G00 Series
Manufacturer: UMW
Catalog
IC GATE NAND 1CH 2-INP SC70-5
| Part | Max Propagation Delay | Max CL | Logic Type | Current - Quiescent (Max) | Input Logic Level - High | Current - Output High | Current - Output Low | Mounting Type | Number of Inputs | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Package Name | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Number of Circuits |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
10 ns | 15 pF | NAND Gate | 10 µA | 1.7 V | 32 mA | 32 mA | Surface Mount | 2 | 5-TSSOP SC-70-5 SOT-353 | -40 °C | 105 °C | SC-70-5 | 1.65 V | 5.5 V | 1 | |
10 ns | 15 pF | NAND Gate | 10 µA | 1.7 V | 32 mA | 32 mA | Surface Mount | 2 | -40 °C | 105 °C | SOT-23-5 | 1.65 V | 5.5 V | 1 |
