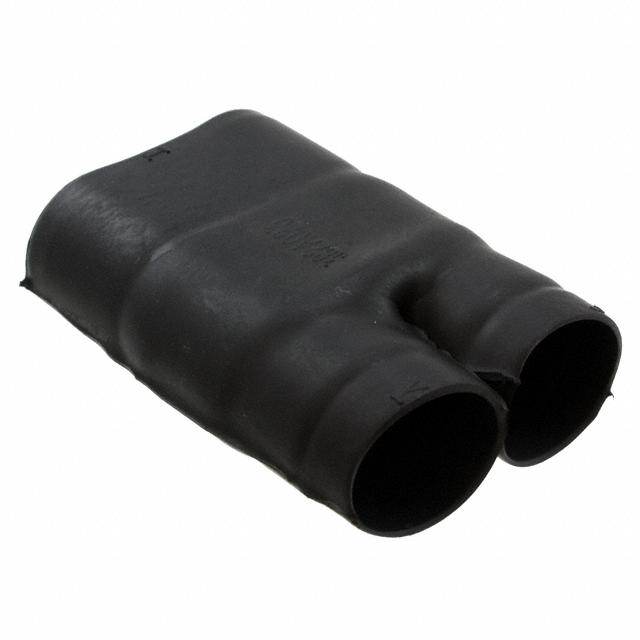

382A023 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

MOLDED PARTS

Part	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Shell Size - Insert	Small Recovered Length [x]	Small Recovered Length [x]	Type	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Color	Large Recovered Length	Large Recovered Length	Material	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]
TE Connectivity Aerospace, Defense and Marine 382A023-100/180-0
TE Connectivity Aerospace, Defense and Marine 382A023-25/86-0	1.06 in	26.92 mm	6.1 mm	0.24 "	23	1.7 in	43.18 mm	Boot Transition - Breakout 2:1 (Y)	0.488 in	12.4 mm	Black	38.1 mm	1.5 in	Elastomer Semi-Rigid	0.52 in	13.21 mm
TE Connectivity Aerospace, Defense and Marine 382A023-25/225-CS-2078-0

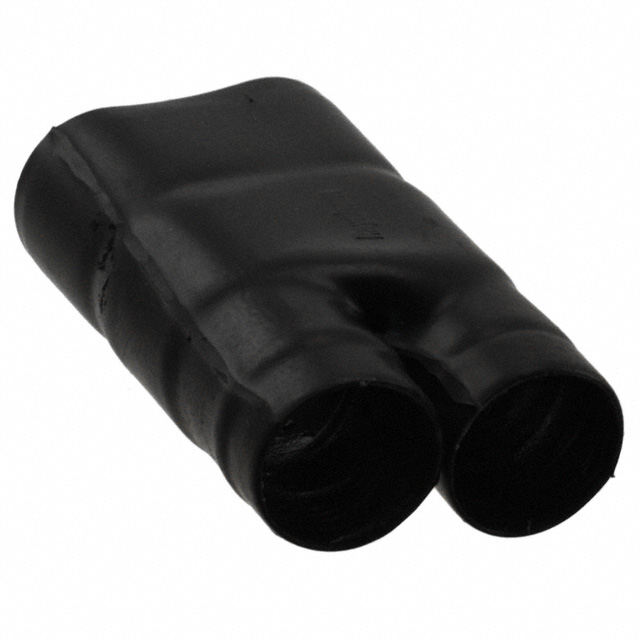

TE Connectivity Aerospace, Defense and Marine 382A023-3/42-0	1.06 in	26.92 mm	6.1 mm	0.24 "	23	1.7 in	43.18 mm	Boot Transition - Breakout 2:1 (Y)	0.488 in	12.4 mm	Black	38.1 mm	1.5 in	Polyolefin (PO) Semi-Rigid	0.52 in	13.21 mm
TE Connectivity Aerospace, Defense and Marine 382A023-3-00/42-0
TE Connectivity Aerospace, Defense and Marine 382A023-3-00-0	1.06 in	26.92 mm	6.1 mm	0.24 "	23	1.7 in	43.18 mm	Boot Transition - Breakout 2:1 (Y)	0.49 in	12.45 mm	Black	38.1 mm	1.5 in	Polyolefin (PO) Semi-Rigid	0.52 in	13.21 mm
TE Connectivity Aerospace, Defense and Marine 382A023-5-0
TE Connectivity Aerospace, Defense and Marine 382A023-100/86-0	1.06 in	26.92 mm	6.1 mm	0.24 "	23	1.7 in	43.18 mm	Boot Transition - Breakout 2:1 (Y)	0.49 in	12.45 mm	Black	38.1 mm	1.5 in	Polyolefin (PO) Semi-Flexible Halogen Free	0.52 in	13.21 mm
TE Connectivity Aerospace, Defense and Marine 382A023-25/42-0	1.06 in	26.92 mm	6.1 mm	0.24 "	23	1.7 in	43.18 mm	Boot Transition - Breakout 2:1 (Y)	0.49 in	12.45 mm	Black	38.1 mm	1.5 in	Elastomer Fluid Resistant	0.52 in	13.21 mm
TE Connectivity Aerospace, Defense and Marine 382A023-4/86-0-CS8242
