YB02 Series

Catalog

LED PANEL INDICATOR AMB 24V

Part	Ratings	Lens Size [diameter]	Current	Lens Transparency	Panel Cutout Shape	Termination Style	Lens Style	Type	Lens Color	Lamp Color	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Current [custom]	Current [custom]	Voltage
NKK Switches YB02KW01-5D24-JB	DC	16 mm	10 mA	Diffused	Round	Quick Connect - 0.110" (2.8mm)	Round with Flat Top	LED	Amber	Amber	24 V	16 mm	0.63 in
NKK Switches YB02KW01-28-FB		16 mm		Diffused	Round	Quick Connect - 0.110" (2.8mm)	Round with Flat Top	Incandescent	Green	Green	28 V	16 mm	0.63 in
NKK Switches YB02KW01-6G-JB		16 mm	30 mA	Diffused	Round	Quick Connect - 0.110" (2.8mm)	Round with Flat Top	LED	Blue	Blue	3.3 V	16 mm	0.63 in
NKK Switches YB02VA001		15 mm	26 mA	Clear	Round	Quick Connect - 0.110" (2.8mm)	Round with Flat Top	LED	White	Red	1.9 V	16 mm	0.63 in	IP65
NKK Switches YB02KW01-5C-JC		15 mm	40 mA	Clear	Round	Quick Connect - 0.110" (2.8mm)	Round with Flat Top	LED	Red	Red	1.9 V	16 mm	0.63 in
NKK Switches YB02KW01-5C24-JC
NKK Switches YB02KW01-5D12-JD	AC	15 mm	20 mA	Clear	Round	Quick Connect - 0.110" (2.8mm)	Round with Flat Top	LED	Amber	Amber	12 V	16 mm	0.63 in
NKK Switches YB02KW01-1E05-JE		16 mm			Round	Quick Connect - 0.110" (2.8mm)	Round with Flat Top					16 mm	0.63 in

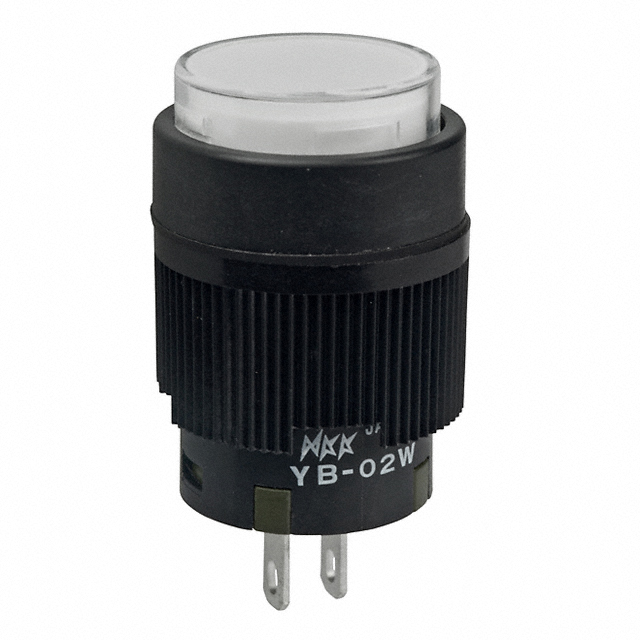

NKK Switches YB02WKW01-2CF24-JB	AC	15 mm		Clear	Round	Quick Connect - 0.110" (2.8mm)	Round with Flat Top	LED	White	Green Red		16 mm	0.63 in		10 mA	10 mA	24V Green 24V Red
NKK Switches YB02WKW01-5C24-JC	AC	15 mm	10 mA	Clear	Round	Quick Connect - 0.110" (2.8mm)	Round with Flat Top	LED	Red	Red	24 V	16 mm	0.63 in
