2029167 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

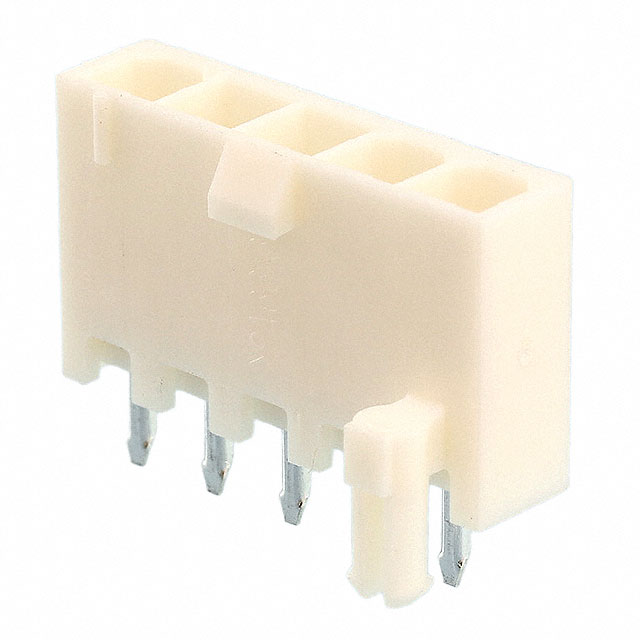

CONN HEADER VERT 5POS 4.2MM
| Part | Contact Material | Contact Length - Post | Contact Length - Post | Pitch - Mating | Pitch - Mating | Contact Shape | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Termination | Voltage Rating | Style | Connector Type | Applications | Number of Rows | Mounting Type | Current Rating (Amps) | Number of Positions Loaded | Contact Type | Insulation Height | Insulation Height | Material Flammability Rating | Shrouding | Insulation Color | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Brass | 3.5 mm | 0.138 in | 4.2 mm | 0.165 in | Square | Tin | -40 °C | 105 ░C | Locking Ramp | Solder | 600 VAC | Board to Cable/Wire | Header | General Purpose Industrial Lighting | 1 | Through Hole | 9 A | All | Male Pin | 12.8 mm | 0.504 in | UL94 V-0 | Shrouded - 4 Wall | White | Nylon Polyamide (PA) |
