QYW09225048 Series
Manufacturer: YS TECH USA
Beta
⌘K

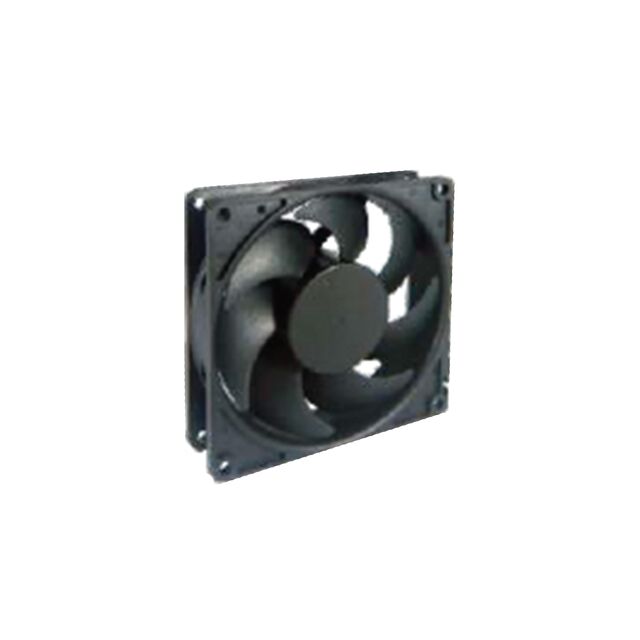

FAN AXIAL 92X25MM 48VDC WIRE
| Part | Material - Blade | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Current Rating (Amps) | Power (Watts) | Bearing Type | Size / Dimension [y] | Size / Dimension [x] | Fan Type | Static Pressure | Static Pressure | Noise | Voltage - Rated | Termination | Air Flow | Air Flow | Width [y] | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 YS TECH USA | Polybutylene Terephthalate (PBT) | 75000 Hrs | 56 VDC | 24 VDC | 70 mA | 3.36 W | Ball | 92 mm | 92 mm | Tubeaxial | 67.7 Pa | 0.272 in H2O | 35 dB | 48 VDC | 2 Wire Leads | 50.3 CFM | 1.41 mł/min | 25 mm | 4000 RPM |
YS TECH USA | Polybutylene Terephthalate (PBT) | 40 °C 60000 Hrs | 56 VDC | 24 VDC | 0.18 A | 8.64 W | Ball | 92 mm | 92 mm | Tubeaxial | 50.3 dB(A) | 48 VDC | 2 Wire Leads | 92.5 CFM | 2.59 m³/min | 25 mm | 7000 RPM |
