395-038 Series
Manufacturer: EDAC Inc.
Catalog

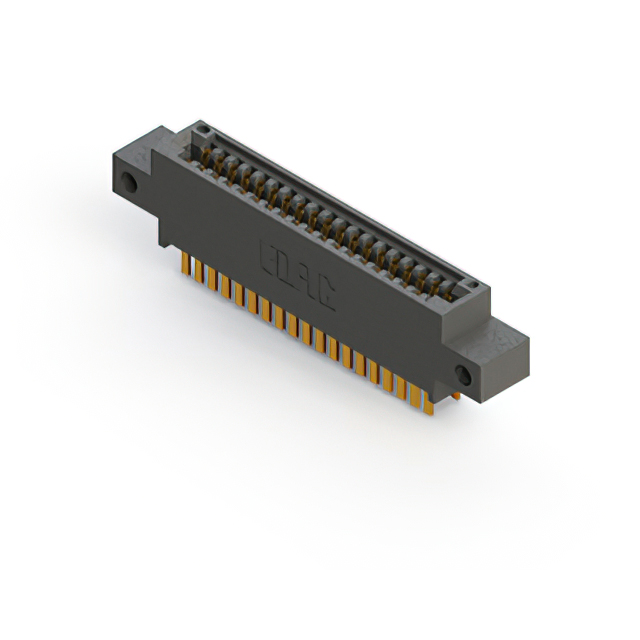

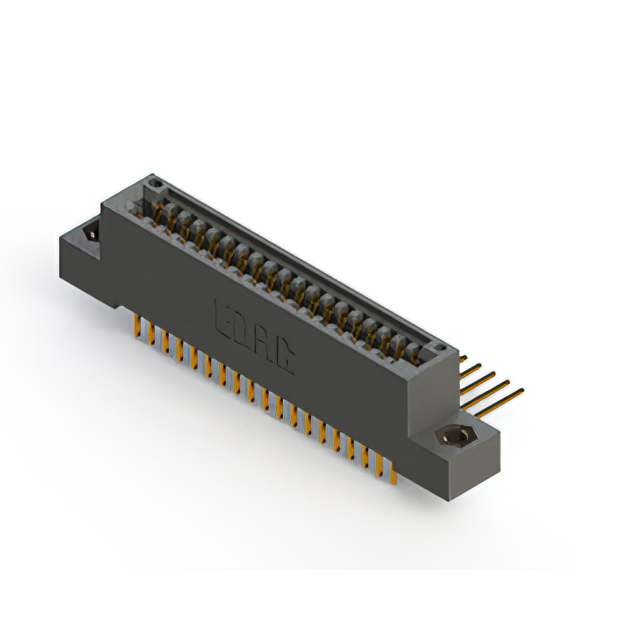

CONN EDGE DUAL FMALE 38POS 0.100
...
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Material - Insulation | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Card Type | Flange Feature | Read Out | Contact Finish | Features | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Rows | Color | Termination Rows | Gender | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Board Edge Straddle Mount | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Dual | Gold | Card Extender | 38 | 19 | 2 | Black | 2 | Female | ||
 EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | M3 Threaded Insert Top Mount Opening | Dual | Gold | 38 | 19 | 2 | Black | 2 | Female | |||
 EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | Side Mount Opening Unthreaded | Dual | Gold | 38 | 19 | 2 | Black | 2 | Female | 3.25 mm | 0.128 in | |
 EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Dual | Gold | Card Guides | 38 | 19 | 2 | Black | 2 | Female | ||
 EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Dual Edge | 4-40 Flush Mount Threaded Insert Top Opening | Dual | Gold | Card Guides | 38 | 19 | 2 | Black | 2 | Female | ||
 EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Single Edge | Single | Gold | 38 | 38 | 1 | Black | 1 | Female | 3.25 mm | 0.128 in | ||
 EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Single | Gold | Card Guides | 38 | 38 | 1 | Black | 1 | Female | ||
 EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Dual Edge | Side Mount Opening Unthreaded | Dual | Gold | 38 | 19 | 2 | Black | 2 | Female | 3.25 mm | 0.128 in | |
 EDAC Inc. | Through Hole | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Wire Wrap | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Single | Gold | Card Guides | 38 | 38 | 1 | Black | 1 | Female | ||
 EDAC Inc. | Board Edge Straddle Mount | -40 °C | 105 ░C | 2.54 mm | 0.1 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | Polyester Thermoplastic | Copper Alloy | 10 Áin | 0.25 Ám | Solder | Non Specified - Dual Edge | 4-40 Threaded Insert Top Mount Opening | Dual | Gold | 38 | 19 | 2 | Black | 2 | Female |
