C6RRS-4 Series

Catalog

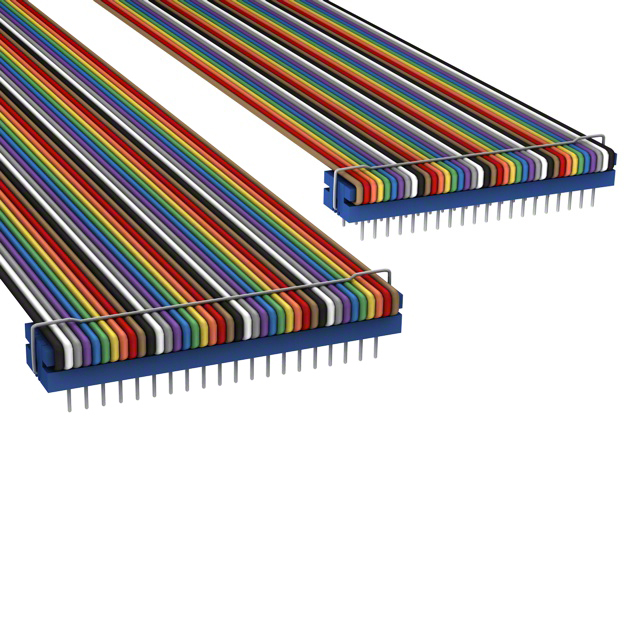

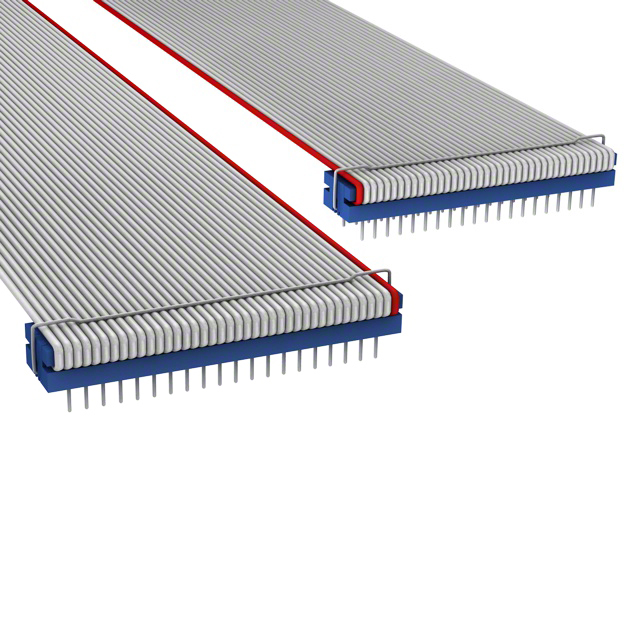

DIP CABLE - CDR40S/AE40M/CDR40S

Part	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Length	Length	Length	Color	Features	Shielding	Pitch - Connector	Pitch - Connector	Usage	Pitch - Cable	Pitch - Cable	Contact Finish	Cable Termination	Number of Rows [custom]	Number of Positions	Length [x]	Length [x]
CW Industries C6RRS-4006M	2.54 µm	100 µin	DIP to DIP	152.4 mm	0.5 '	6 "	Multiple Ribbon	Strain Relief	Unshielded	0.1 in	2.54 mm	Board In Socket (0.6")	0.05 in	1.27 mm	Tin	IDC	2	40
CW Industries C6RRS-4018M	2.54 µm	100 µin	DIP to DIP				Multiple Ribbon	Strain Relief	Unshielded	0.1 in	2.54 mm	Board In Socket (0.6")	0.05 in	1.27 mm	Tin	IDC	2	40	457.2 mm	1.5 ft
CW Industries C6RRS-4036M	2.54 µm	100 µin	DIP to DIP	91.44 cm	3 ft		Multiple Ribbon	Strain Relief	Unshielded	0.1 in	2.54 mm	Board In Socket (0.6")	0.05 in	1.27 mm	Tin	IDC	2	40
CW Industries C6RRS-4006G	2.54 µm	100 µin	DIP to DIP	152.4 mm	0.5 '	6 "		Strain Relief	Unshielded	0.1 in	2.54 mm	Board In Socket (0.6")	0.05 in	1.27 mm	Tin	IDC	2	40
CW Industries C6RRS-4018G	2.54 µm	100 µin	DIP to DIP					Strain Relief	Unshielded	0.1 in	2.54 mm	Board In Socket (0.6")	0.05 in	1.27 mm	Tin	IDC	2	40	457.2 mm	1.5 ft
CW Industries C6RRS-4036G	2.54 µm	100 µin	DIP to DIP	91.44 cm	3 ft			Strain Relief	Unshielded	0.1 in	2.54 mm	Board In Socket (0.6")	0.05 in	1.27 mm	Tin	IDC	2	40
