822K Series
Manufacturer: NorComp Inc.
Beta
⌘K
CIRCULAR CONNECTOR, QUIK-LOQ 822K SERIES, PANEL MOUNT RECEPTACLE, 3 CONTACTS, SOLDER SOCKET
| Part | Backshell Material, Plating | Mounting Feature | Contact Material | Connector Type | Shielding | Fastening Type | Color | Insert Material | Current Rating (Amps) | Primary Material | Mounting Type | Shell Finish | Ingress Protection | Shell Material | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Voltage Rating | Contact Finish - Mating | Number of Positions | Cable Opening [Max] | Cable Opening [Min] | Features | Termination | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass Chrome | Bulkhead - Front Side Nut | Copper Alloy | Receptacle Female Sockets | Shielded | Push-Pull | Silver | Polyphenylene Sulfide (PPS) | 17 A | Metal | Panel Mount | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 800 V | Gold | |||||||||||
 NorComp Inc. | Brass Chrome | Copper Alloy | Plug Male Pins | Shielded | Push-Pull | Black Silver | Polyphenylene Sulfide (PPS) | 15 A | Metal | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 610 V | Gold | 4 | 0.205 in 5.2 mm | 0.169 " 4.3 mm | Backshell Strain Relief | ||||||||
 NorComp Inc. | Bulkhead - Front Side Nut | Copper Alloy | Receptacle Female Sockets | Shielded | Push-Pull | Silver | Polyphenylene Sulfide (PPS) | 17 A | Metal | Panel Mount Right Angle Through Hole | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 800 V | Gold | Solder | |||||||||||
NorComp Inc. | Brass Chrome | Bulkhead - Front Side Nut | Copper Alloy | Receptacle Female Sockets | Shielded | Push-Pull | Silver | Polyphenylene Sulfide (PPS) | 30 A | Metal | Panel Mount | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 700 VDC | Gold | 2 | ||||||||||

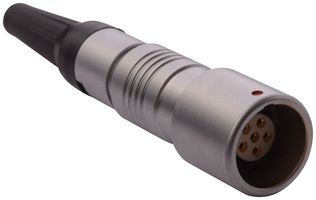

 NorComp Inc. | Brass Chrome | Copper Alloy | Receptacle Female Sockets | Shielded | Push-Pull | Black Silver | Polyphenylene Sulfide (PPS) | 12 Amps | Metal | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 450 V | Gold | 6 | 0.283 " | 0.248 " | Backshell Strain Relief | 7.2 mm | 6.3 mm | ||||||
NorComp Inc. | Bulkhead - Front Side Nut | Copper Alloy | Receptacle Female Sockets | Shielded | Push-Pull | Silver | Polyphenylene Sulfide (PPS) | 12 Amps | Metal | Panel Mount Right Angle Through Hole | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 450 V | Gold | 6 | Solder | ||||||||||
NorComp Inc. | Brass Chrome | Copper Alloy | Plug Male Pins | Shielded | Push-Pull | Black Silver | Polyphenylene Sulfide (PPS) | 30 A | Metal | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 700 VDC | Gold | 2 | 0.205 in 5.2 mm | 0.169 " 4.3 mm | Backshell Strain Relief | ||||||||
NorComp Inc. | Brass Chrome | Copper Alloy | Plug Male Pins | Shielded | Push-Pull | Black Silver | Polyphenylene Sulfide (PPS) | 15 A | Metal | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 700 VDC | Gold | 2 | 0.283 " | 0.248 " | Backshell Strain Relief | 7.2 mm | 6.3 mm | ||||||
NorComp Inc. | Brass Chrome | Copper Alloy | Plug Male Pins | Shielded | Push-Pull | Black Silver | Polyphenylene Sulfide (PPS) | 17 A | Metal | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 700 VDC | Gold | 2 | 0.323 " | 0.287 in | Backshell Strain Relief | 8.2 mm | 7.3 mm | ||||||
NorComp Inc. | Brass Chrome | Copper Alloy | Plug Male Pins | Shielded | Push-Pull | Black Silver | Polyphenylene Sulfide (PPS) | 17 A | Metal | Free Hanging (In-Line) | Nickel | IP67 - Dust Tight Waterproof | Brass | Keyed | -40 C | 200 °C | 7 µin | 0.178 µm | 610 V | Gold | 4 | Backshell Strain Relief | 5.3 mm | 0.244 " | 6.2 mm | 0.209 in |
