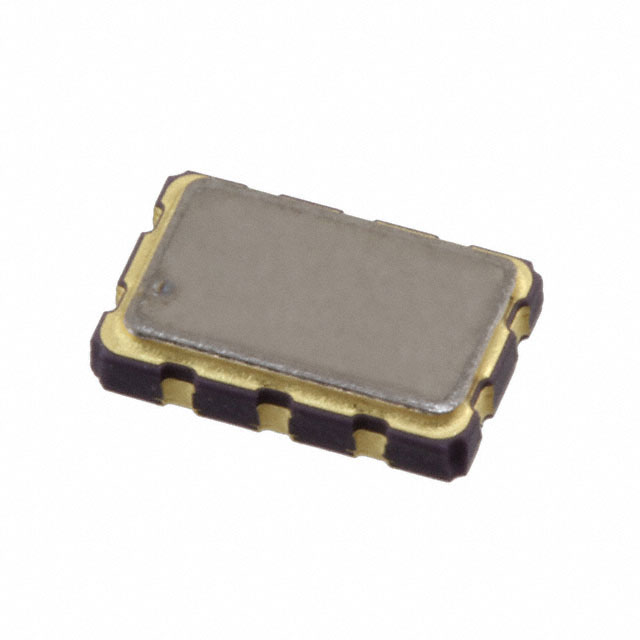

XUL535 Series

Manufacturer: Renesas Electronics Corporation

Catalog

CLCC 5.00X3.20X1.10 MM, 2.54MM P

Part	Current - Supply (Max) [Max]	Function	Output	Voltage - Supply	Frequency	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Frequency Stability	Package / Case	Base Resonator [custom]
Renesas Electronics Corporation XUL535875.000000X	122 mA	Enable/Disable	LVDS	3.3 V	875 MHz	-20 ░C	70 °C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
Renesas Electronics Corporation XUL535156.250000I	97 mA	Enable/Disable	LVDS	3.3 V	156.25 MHz	-40 C	85 °C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
Renesas Electronics Corporation XUL535805.625000I	122 mA	Enable/Disable	LVDS	3.3 V	805.625 MHz	-40 C	85 °C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
Renesas Electronics Corporation XUL535078.125000I	97 mA	Enable/Disable	LVDS	3.3 V	78.125 MHz	-40 C	85 °C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
Renesas Electronics Corporation XUL535350.000000I	97 mA	Enable/Disable	LVDS	3.3 V	350 MHz	-40 C	85 °C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
Renesas Electronics Corporation XUL535212.500JS6I8	97 mA	Enable/Disable	LVDS	3.3 V	212.5 MHz	-40 C	85 °C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
Renesas Electronics Corporation XUL535312.500000I	97 mA	Enable/Disable	LVDS	3.3 V	312.5 MHz	-40 C	85 °C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
Renesas Electronics Corporation XUL535040.000000I	97 mA	Enable/Disable	LVDS	3.3 V	40 MHz	-40 C	85 °C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
Renesas Electronics Corporation XUL535800.000000X	122 mA	Enable/Disable	LVDS	3.3 V	800 MHz	-20 ░C	70 °C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
Renesas Electronics Corporation XUL535100.000000K	97 mA	Enable/Disable	LVDS	3.3 V	100 MHz	-40 C	105 ░C	1.2 mm	0.047 "	XO (Standard)	3.2 mm	0.126 in	5 mm	0.197 in	Surface Mount	50 ppm	6-SMD No Lead	Crystal
