MRX108 Series

Catalog

SWITCH ROTARY 2-8POS 2A 125V

Part	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Features	Number of Poles per Deck	Voltage Rating - AC	Actuator Type	Termination Style	Circuit per Deck	Contact Timing	Index Stops	Depth Behind Panel [z]	Mounting Type	Angle of Throw	Number of Decks [custom]	Voltage Rating - DC	Contact Material	Actuator Length [x]
NKK Switches MRX108-BC	0.25 in	1 A 2 A	Sealed - Flux Protection	1	125 V	Knob	PC Pin	SP8T	Non-Shorting (BBM)	Adjustable	27.3 mm	Panel Mount Through Hole	45 °	1	30 V	Silver Alloy	14.3 mm

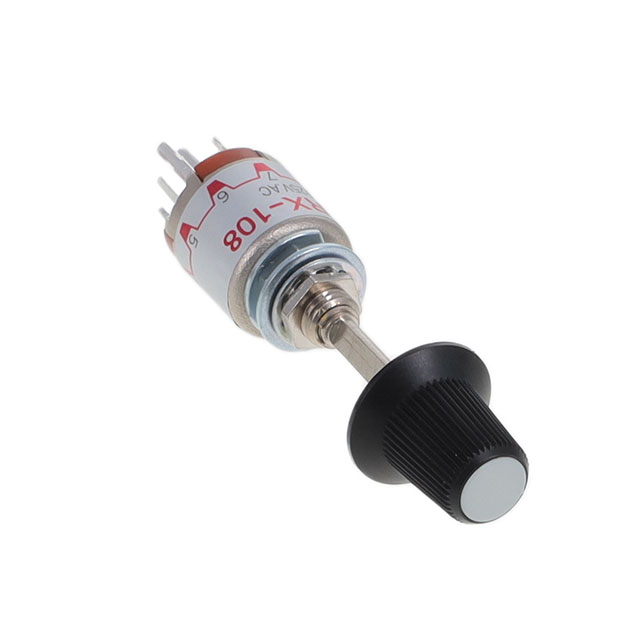

NKK Switches MRX108-BB	0.25 in	1 A 2 A	Sealed - Flux Protection	1	125 V	Knob	PC Pin	SP8T	Non-Shorting (BBM)	Adjustable	27.3 mm	Panel Mount Through Hole	45 °	1	30 V	Silver Alloy	14.3 mm
NKK Switches MRX108-BG	0.25 in	1 A 2 A	Sealed - Flux Protection	1	125 V	Knob	PC Pin	SP8T	Non-Shorting (BBM)	Adjustable	27.3 mm	Panel Mount Through Hole	45 °	1	30 V	Silver Alloy	14.3 mm
