W3B2S Series

Manufacturer: Sumitomo Electric Interconnect Products, Inc.

Catalog

HEATSHRINK 0.189" BLACK FOOT

Part	Spool Size [x]	Spool Size [x]	Type	Features	Material	Inner Diameter - Recovered	Inner Diameter - Recovered	Length	Color	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Shrinkage Ratio	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Spool Size	Spool Size	Inner Diameter - Supplied
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/16 BLACK SPL	609.6 m	2000 ft	Tubing Flexible	Adhesive Lined Flame Retardant	Polyolefin (PO)	1.5 mm	0.059 "	Enter Number of Feet in Order Quantity	Black	1.09 mm	0.043 in	110 °C	4.8 mm	0.189 in	-55 C	125 °C	3 to 1
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/2 BLACK SPL	152.4 m	500 ft	Tubing Flexible	Adhesive Lined Flame Retardant	Polyolefin (PO)			Enter Number of Feet in Order Quantity	Black	1.4 mm	0.055 in	110 °C	12.7 mm	0.5 "	-55 C	125 °C	3 to 1	3.99 mm	0.157 "

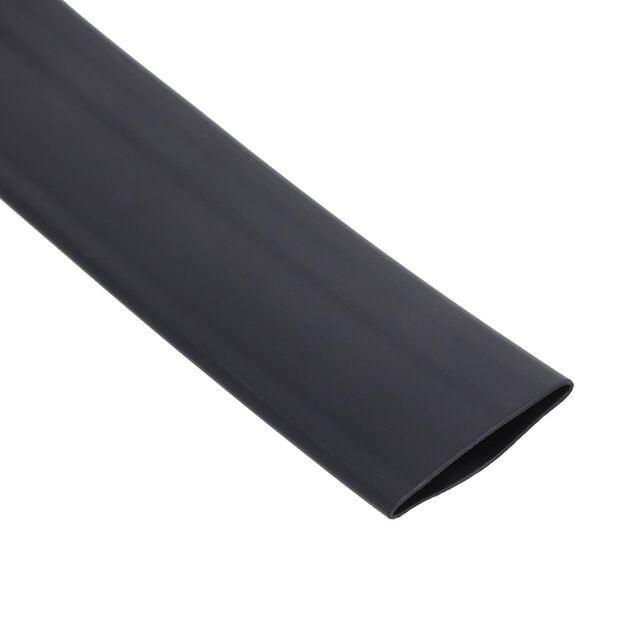

Sumitomo Electric Interconnect Products, Inc. W3B2S 24/8 BLACK SPL			Tubing Flexible	Adhesive Lined Flame Retardant	Polyolefin (PO)			Enter Number of Feet in Order Quantity	Black	2.54 mm	0.1 in	110 °C		0.94 in	-55 C	125 °C	3 to 1	8.13 mm	0.32 in	91.4 m	300 ft	23.88 mm
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/8 BLACK SPL	152.4 m	500 ft	Tubing Flexible	Adhesive Lined Flame Retardant	Polyolefin (PO)			Enter Number of Feet in Order Quantity	Black	1.3 mm	0.051 in	110 °C	9.5 mm	0.374 "	-55 C	125 °C	3 to 1	3 mm	0.118 in
Sumitomo Electric Interconnect Products, Inc. W3B2S 40/13 BLACK SPL	121.9 m	400 ft	Tubing Flexible	Adhesive Lined Flame Retardant	Polyolefin (PO)			Enter Number of Feet in Order Quantity	Black	2.49 mm	0.098 in	110 °C		1.575 "	-55 C	125 °C	3 to 1	13 mm	0.512 in			40.01 mm

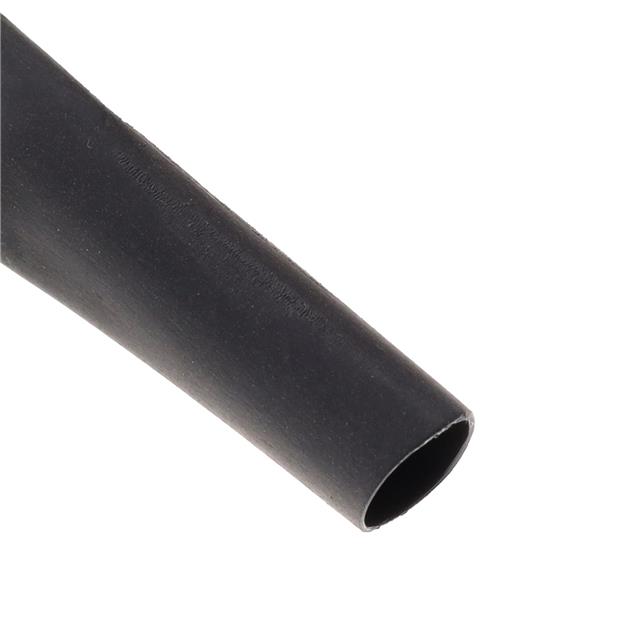

Sumitomo Electric Interconnect Products, Inc. W3B2S 1/4 BLACK SPL	304.8 m	1000 ft	Tubing Flexible	Adhesive Lined Flame Retardant	Polyolefin (PO)			Enter Number of Feet in Order Quantity	Black	1.19 mm	0.047 in	110 °C	6.4 mm	0.252 in	-55 C	125 °C	3 to 1	2.01 mm	0.079 in
Sumitomo Electric Interconnect Products, Inc. W3B2S 1/8 BLACK SPL			Tubing Flexible	Adhesive Lined Flame Retardant	Polyolefin (PO)			Enter Number of Feet in Order Quantity	Black	0.94 mm	0.037 in	110 °C	3.18 mm	0.125 in	-55 C	125 °C	3 to 1	1.02 mm	0.04 "	1066.8 m	3500 ft
Sumitomo Electric Interconnect Products, Inc. W3B2S 3/4 BLACK SPL	121.9 m	400 ft	Tubing Flexible	Adhesive Lined Flame Retardant	Polyolefin (PO)			Enter Number of Feet in Order Quantity	Black	1.8 mm	0.071 in	110 °C	19 mm	0.748 in	-55 C	125 °C	3 to 1	5.99 mm	0.236 in
