823-22 Series

Catalog

CONN SPRING PISTON 48POS PCB

...

Part	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Material	Number of Contacts	Row Spacing	Row Spacing	Connector Type	Number of Rows [custom]	Pitch	Pitch	Contact Finish	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 823-22-048-10-004101	20 µin	0.51 µm	Through Hole	Copper Alloy	48	2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold

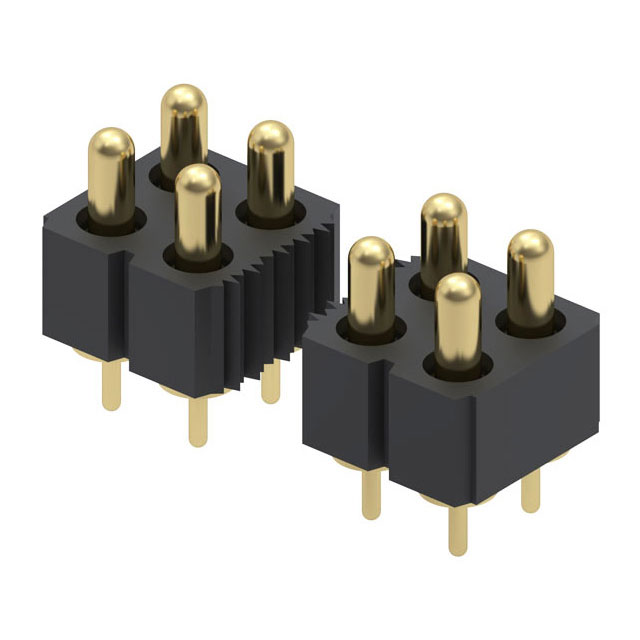

Mill-Max Manufacturing Corp. 823-22-014-10-003101	20 µin	0.51 µm	Through Hole	Copper Alloy		2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold	14

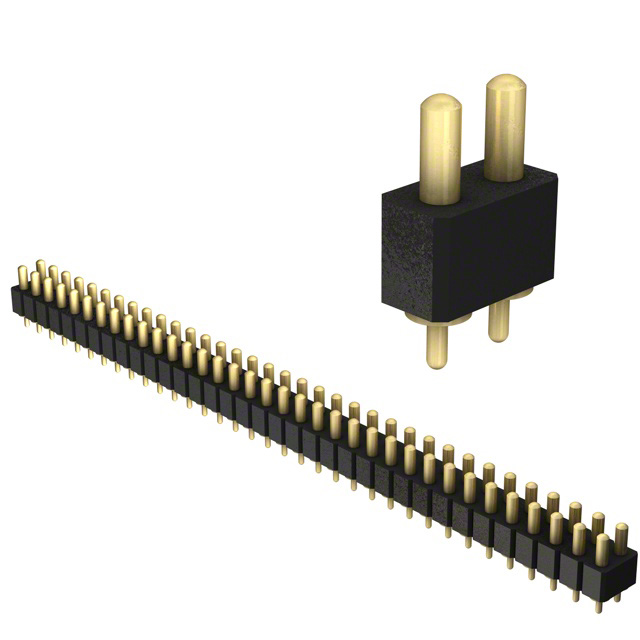

Mill-Max Manufacturing Corp. 823-22-070-10-004101	20 µin	0.51 µm	Through Hole	Copper Alloy	70	2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold

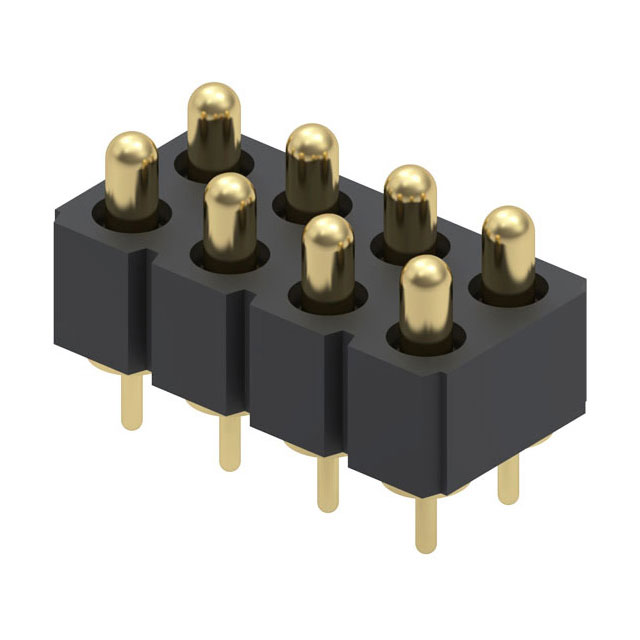

Mill-Max Manufacturing Corp. 823-22-008-10-002101	20 µin	0.51 µm	Through Hole	Copper Alloy	8	2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold

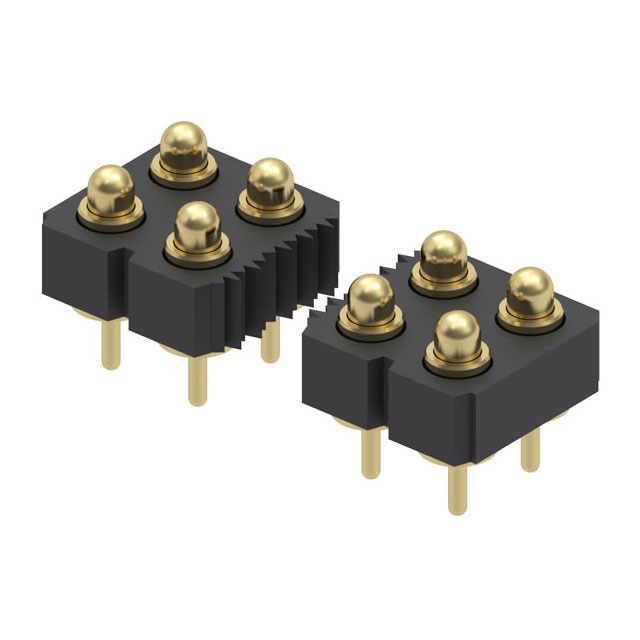

Mill-Max Manufacturing Corp. 823-22-052-10-000101	20 µin	0.51 µm	Through Hole	Copper Alloy		2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold	52

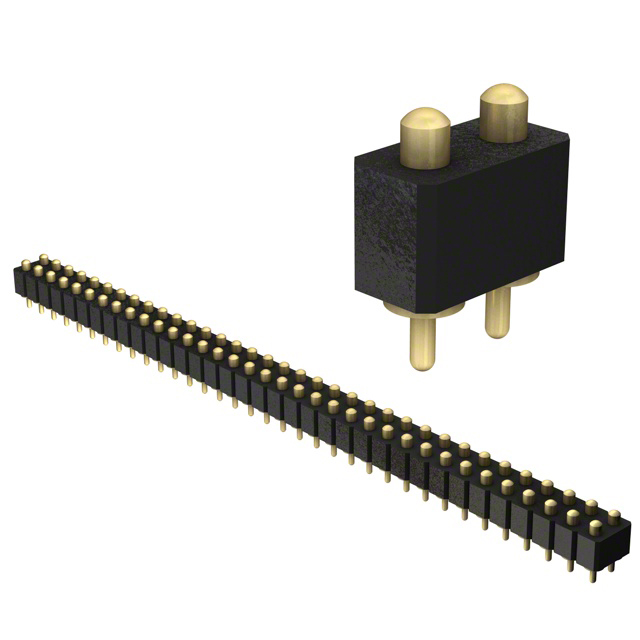

Mill-Max Manufacturing Corp. 823-22-070-10-001101	20 µin	0.51 µm	Through Hole	Copper Alloy	70	2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold
Mill-Max Manufacturing Corp. 823-22-032-10-000101	20 µin	0.51 µm	Through Hole	Copper Alloy		2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold	32

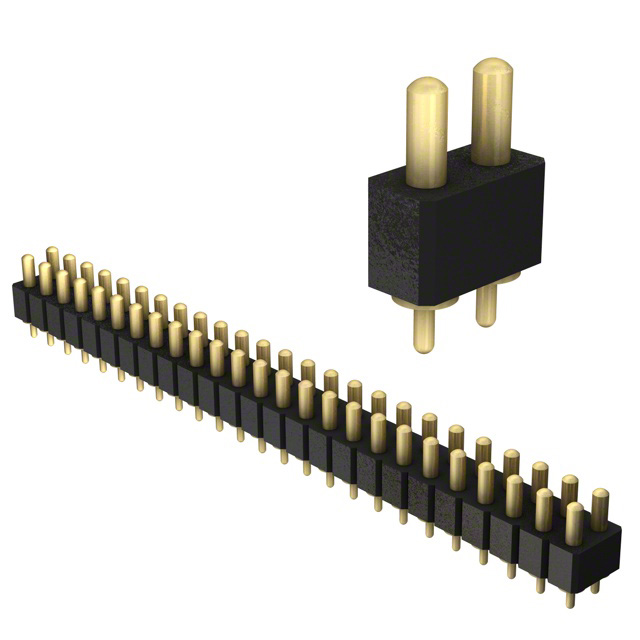

Mill-Max Manufacturing Corp. 823-22-050-10-004101	20 µin	0.51 µm	Through Hole	Copper Alloy	50	2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold

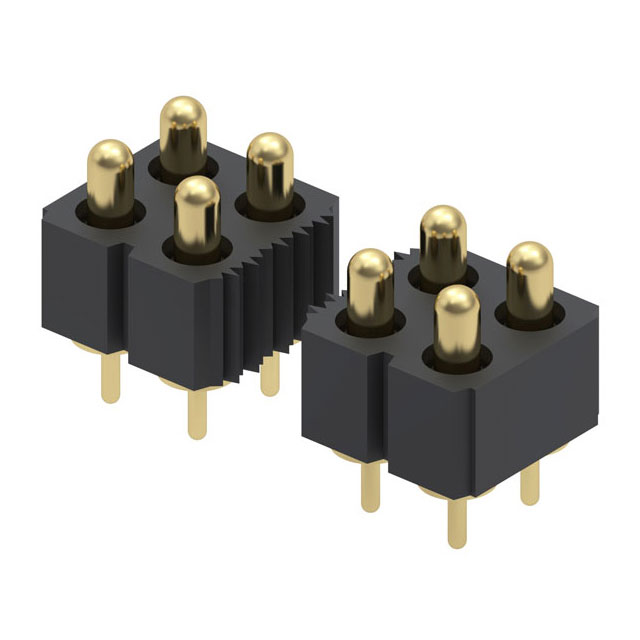

Mill-Max Manufacturing Corp. 823-22-036-10-002101	20 µin	0.51 µm	Through Hole	Copper Alloy	36	2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold

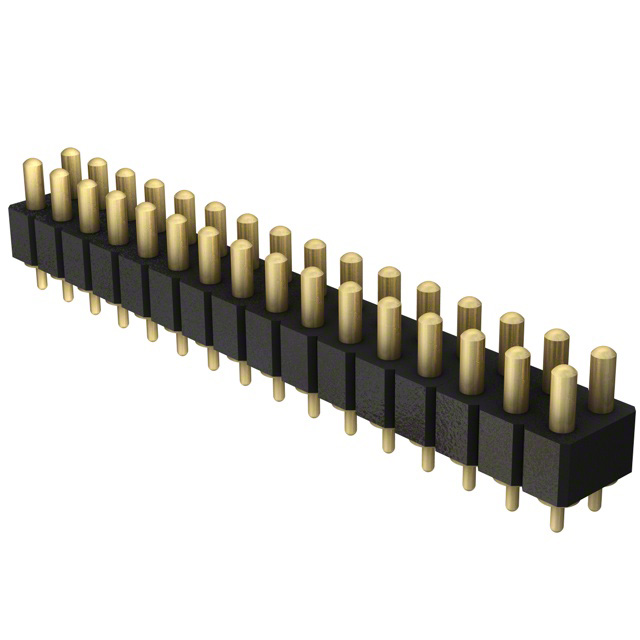

Mill-Max Manufacturing Corp. 823-22-032-10-004101	20 µin	0.51 µm	Through Hole	Copper Alloy		2.54 mm	0.1 "	Piston	2	0.1 "	2.54 mm	Gold	32
