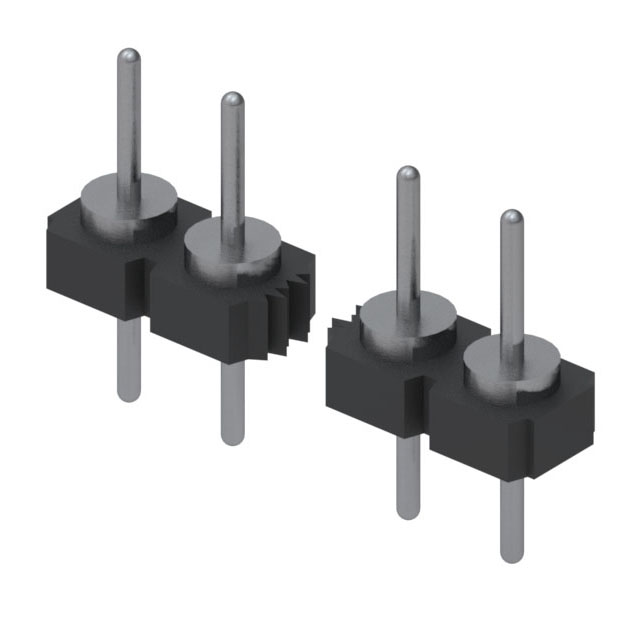

335-40 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN HEADER VERT 23POS 2.54MM

Part	Fastening Type	Contact Shape	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Type	Contact Material	Voltage Rating	Voltage Rating	Connector Type	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Post	Number of Rows	Mounting Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Insulation Color	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions [custom]
Mill-Max Manufacturing Corp. 335-40-123-00-160000	Push-Pull	Circular	23	5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in	0.1 "	2.54 mm	Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 335-40-116-00-160000	Push-Pull	Circular	16	5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in	0.1 "	2.54 mm	Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 335-40-129-00-160000	Push-Pull	Circular	29	5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in	0.1 "	2.54 mm	Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 335-40-131-00-160000	Push-Pull	Circular		5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in	0.1 "	2.54 mm	Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm	31
Mill-Max Manufacturing Corp. 335-40-113-00-160000	Push-Pull	Circular	13	5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in	0.1 "	2.54 mm	Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm

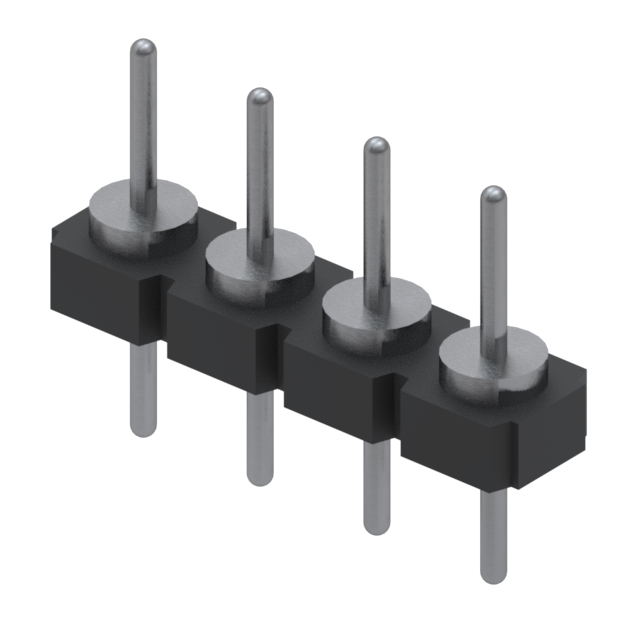

Mill-Max Manufacturing Corp. 335-40-104-00-160000	Push-Pull	Circular	4	5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in	0.1 "	2.54 mm	Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 335-40-128-00-160000	Push-Pull	Circular	28	5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in	0.1 "	2.54 mm	Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm

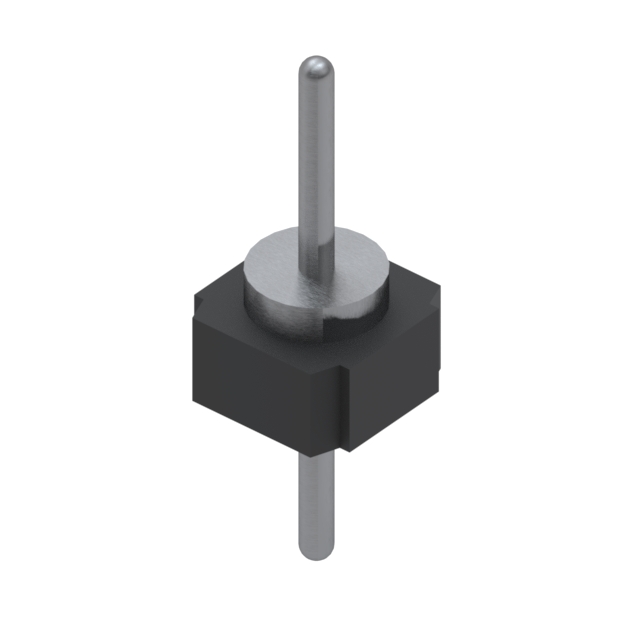

Mill-Max Manufacturing Corp. 335-40-101-00-160000	Push-Pull	Circular	1	5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in			Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 335-40-122-00-160000	Push-Pull	Circular	22	5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in	0.1 "	2.54 mm	Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm
Mill-Max Manufacturing Corp. 335-40-118-00-160000	Push-Pull	Circular	18	5.08 µm	200 µin	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Male Pin	Brass Alloy	100 V	150 VDC	Header	1.27 mm	0.05 in	0.1 "	2.54 mm	Solder	Tin	1	Through Hole	Unshrouded	0.125 in	3.18 mm	0.299 in 7.6 mm	Black	All	0.104 in	2.64 mm	200 µin	5.08 µm
