CA56-11 Series

Catalog

DISP 7SEG 0.56" QUAD RED 36DIP

Part	Power Dissipation (Max) [Max]	Common Pin	Number of Characters	Millicandela Rating	Color	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Current - Test	Display Type	Voltage - Forward (Vf) (Typ)	Package / Case
Kingbright CA56-11SRWA	75 mw	Common Anode	4	40 mcd	Red	15.24 36-DIP Module (0.600	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	0.56 in	14.22 mm	660 nm	20 mA	7-Segment Clock	1.85 V
Kingbright CA56-11SYKWA	75 mw	Common Anode	4	120 mcd	Yellow	36-DIP	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	0.56 in	14.22 mm	590 nm	20 mA	7-Segment Clock	2 V	0.6 in 15.24 mm

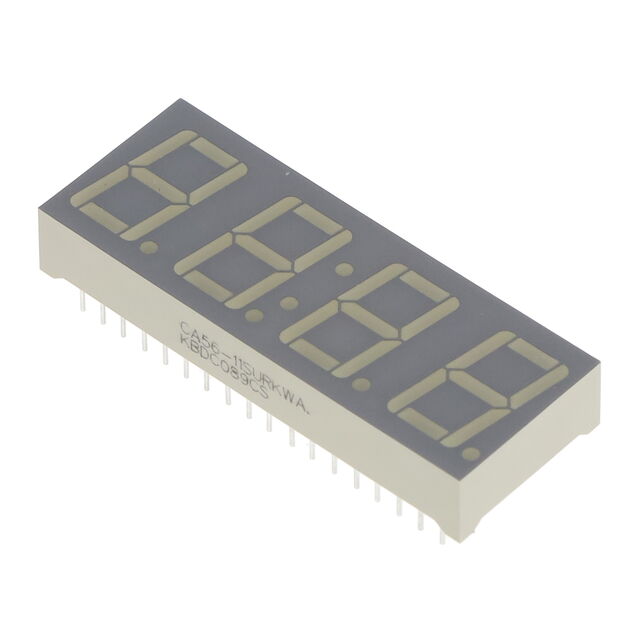

Kingbright CA56-11SURKWA	75 mw	Common Anode	4	72 mcd	Red	36-DIP	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	0.56 in	14.22 mm	645 nm	20 mA	7-Segment Clock	1.95 V	0.6 in 15.24 mm
Kingbright CA56-11EWA	75 mw	Common Anode	4	5.8 mcd	Red	15.24 36-DIP Module (0.600	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	0.56 in	14.22 mm	627 nm	20 mA	7-Segment Clock	2 V
Kingbright CA56-11CGKWA	75 mw	Common Anode	4	35 mcd	Green	36-DIP	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	0.56 in	14.22 mm		20 mA	7-Segment Clock	2.1 V	0.6 in 15.24 mm

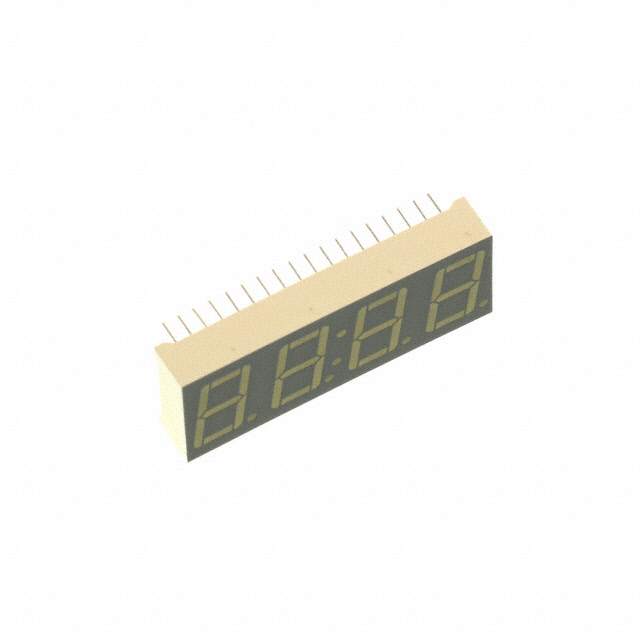

Kingbright CA56-11GWA	62.5 mW	Common Anode	4	11 mcd	Green	15.24 36-DIP Module (0.600	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	0.56 in	14.22 mm	565 nm	20 mA	7-Segment Clock	2.2 V
Kingbright CA56-11YWA	75 mw	Common Anode	4	6.5 mcd	Yellow	15.24 36-DIP Module (0.600	8.1 mm	1.98 "	0.748 in	0.319 "	50.3 mm	19 mm	0.56 in	14.22 mm	590 nm	20 mA	7-Segment Clock	2.1 V
