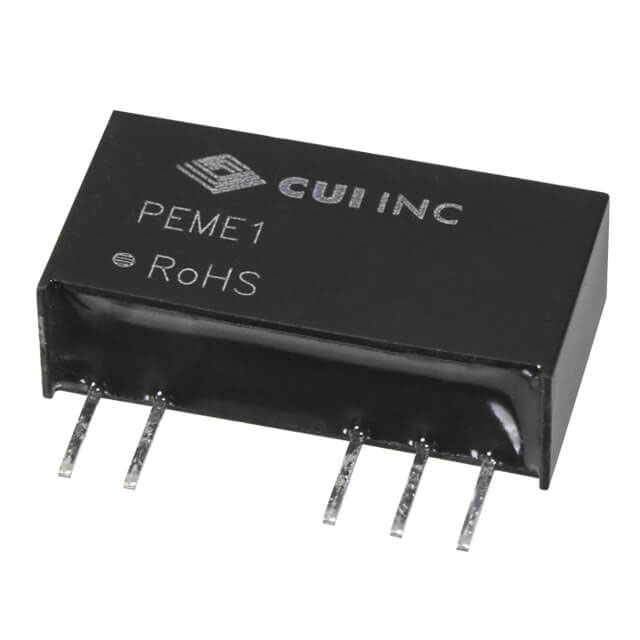

PEME1 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER +/-15V 1W
| Part | Standard Number | Voltage - Input (Max) [Max] | Mounting Type | Voltage - Output 1 | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Applications | Voltage - Output 2 | Features | Package / Case | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Efficiency | Type | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 55024 55032 Class A 62368-1 | 5.5 V | Through Hole | 15 V | 2 | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 4.5 V | ITE (Commercial) | -15 V | SCP | 7-SIP Module 5 Leads | 34 mA | 34 mA | 3000 V | 105 C | -40 °C | CB Scheme EN IEC UL | 83 % | Isolated Module | |
CUI Inc. | 55024 55032 Class A 62368-1 | 5.5 V | Through Hole | 9 V | 2 | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 4.5 V | ITE (Commercial) | -9 V | SCP | 7-SIP Module 5 Leads | 56 mA | 3000 V | 105 C | -40 °C | CB Scheme EN IEC UL | 83 % | Isolated Module | ||
CUI Inc. | 55024 55032 Class A 62368-1 | 5.5 V | Through Hole | 24 V | 2 | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 4.5 V | ITE (Commercial) | -24 V | SCP | 7-SIP Module 5 Leads | 3000 V | 105 C | -40 °C | CB Scheme EN IEC UL | 85 % | Isolated Module | 21 mA | ||
CUI Inc. | 55024 55032 Class A 62368-1 | 5.5 V | Through Hole | 3.3 V | 1 | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 4.5 V | ITE (Commercial) | SCP | 7-SIP Module 4 Leads | 303 mA | 3000 V | 105 C | -40 °C | CB Scheme EN IEC UL | 74 % | Isolated Module | |||
CUI Inc. | 55024 55032 Class A 62368-1 | 5.5 V | Through Hole | 9 V | 1 | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 4.5 V | ITE (Commercial) | SCP | 7-SIP Module 4 Leads | 111 mA | 3000 V | 105 C | -40 °C | CB Scheme EN IEC UL | 83 % | Isolated Module | |||
CUI Inc. | 55024 55032 Class A 62368-1 | 5.5 V | Through Hole | 5 V | 1 | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 4.5 V | ITE (Commercial) | SCP | 7-SIP Module 4 Leads | 200 mA | 3000 V | 105 C | -40 °C | CB Scheme EN IEC UL | Isolated Module | ||||
CUI Inc. | 55024 55032 Class A 62368-1 | 5.5 V | Through Hole | 12 V | 1 | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 4.5 V | ITE (Commercial) | SCP | 7-SIP Module 4 Leads | 84 mA | 3000 V | 105 C | -40 °C | CB Scheme EN IEC UL | 83 % | Isolated Module | |||
CUI Inc. | 55024 55032 Class A 62368-1 | 5.5 V | Through Hole | 24 V | 1 | 0.24 " | 0.4 " | 19.7 mm | 10.2 mm | 0.77 in | 6 mm | 4.5 V | ITE (Commercial) | SCP | 7-SIP Module 4 Leads | 42 mA | 3000 V | 105 C | -40 °C | CB Scheme EN IEC UL | 85 % | Isolated Module |
