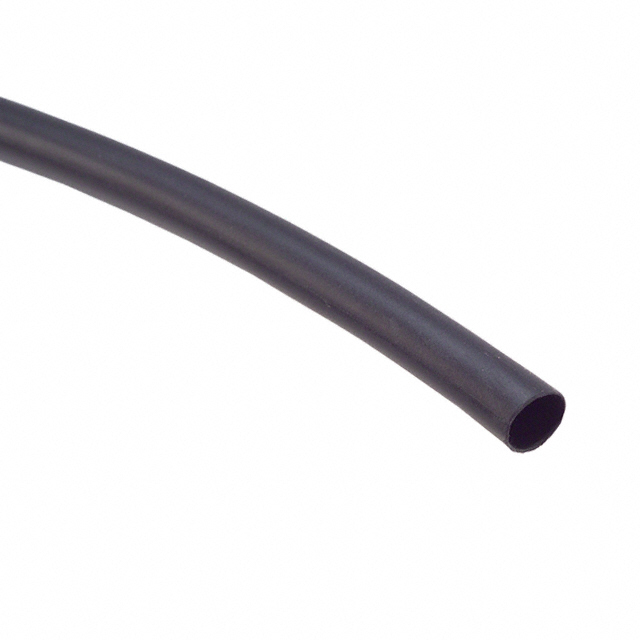

VERSAFIT Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

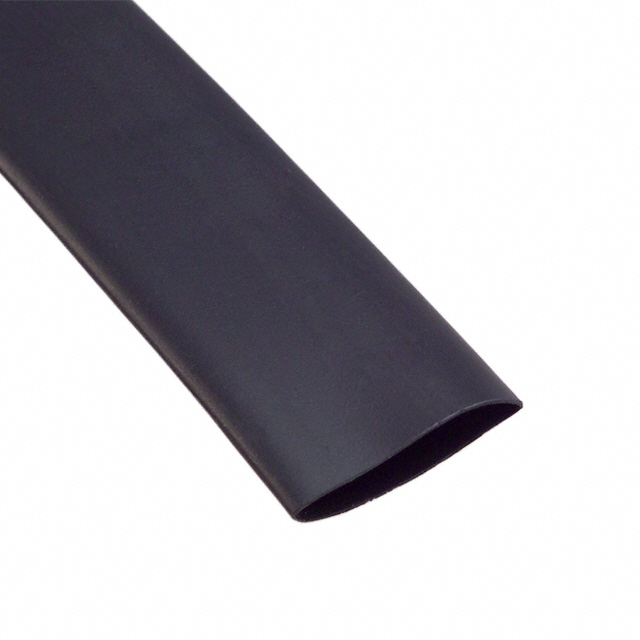

HEATSHRINK 0.4" BLACK

...

Part	Spool Size [x]	Spool Size [x]	Recovered Wall Thickness	Recovered Wall Thickness	Color	Material	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Features	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Type	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shrink Temperature	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Length [x]	Length [x]	Spool Size [custom]	Spool Size [custom]	Inner Diameter - Recovered	Length
TE Connectivity AMP Connectors VERSAFIT-3/8-0-SP-SM	120 m	393.7 ft	0.025 in	0.64 mm	Black	Polyolefin (PO)	144 Months	-55 C	135 °C	60 m	196.8 '	Flame Retardant	0.187 in	4.75 mm	1	2	Enter Number of Meters in Order Quantity	Tubing Flexible	0.4 in	10.16 mm	70 °C	95 °F	35 °C	65 °F	18 °C
TE Connectivity AMP Connectors VERSAFIT-4-0-SP			0.055 in	1.4 mm	Black	Polyolefin (PO)	144 Months	-55 C	135 °C			Flame Retardant	2 in	50.8 mm	1	2		Tubing Flexible	4.098 in	104.09 mm	70 °C	95 °F	35 °C	65 °F	18 °C	100 ft	30.5 m
TE Connectivity AMP Connectors VERSAFIT-3/16-9-SP			0.02 in	0.51 mm	White	Polyolefin (PO)	144 Months	-55 C	135 °C	1.52 m 7.6 m 150 m	25 ft 60 in 492.1 ft	Flame Retardant	0.093 in	2.36 mm	1	2		Tubing Flexible	0.205 in	5.21 mm	70 °C	95 °F	35 °C	65 °F	18 °C	100 ft	30.5 m
TE Connectivity AMP Connectors VERSAFIT-1/8-2-SP			0.02 in	0.51 mm	Red	Polyolefin (PO)	144 Months	-55 C	135 °C			Flame Retardant	0.062 in	1.57 mm	1	2		Tubing Flexible	0.135 in	3.43 mm	70 °C	95 °F	35 °C	65 °F	18 °C
TE Connectivity AMP Connectors VERSAFIT-1/4-0-SP-SM			0.025 in	0.64 mm	Black	Polyolefin (PO)	144 Months	-55 C	135 °C	1524 m	5000 ft	Flame Retardant	0.125 in	3.18 mm	1	2	Enter Number of Meters in Order Quantity	Tubing Flexible	0.28 in	7.11 mm	70 °C	95 °F	35 °C	65 °F	18 °C			150 m	492.1 ft
TE Connectivity AMP Connectors VERSAFIT-1/16-0-SP-SM			0.017 in	0.43 mm	Black	Polyolefin (PO)	144 Months	-55 C	135 °C	900 m	2952.8 ft	Flame Retardant	0.031 in	0.79 mm	1	2		Tubing Flexible	0.073 in	1.85 mm	70 °C	95 °F	35 °C	65 °F	18 °C
TE Connectivity AMP Connectors VERSAFIT-3/64-6-SP			0.015 in	0.38 mm	Blue	Polyolefin (PO)	144 Months	-55 C	135 °C			Flame Retardant	0.023 in	0.58 mm	1	2		Tubing Flexible	0.063 in	1.6 mm	70 °C	95 °F	35 °C	65 °F	18 °C
TE Connectivity AMP Connectors VERSAFIT-2-0-SP			0.045 in	1.14 mm	Black	Polyolefin (PO)	144 Months	-55 C	135 °C	3 m 10 m 25 m 38.1 m 40 m	9.84 ft 32.8 ft 82 ft 125 ft 131.2 '	Flame Retardant	1 in		1	2		Tubing Flexible	2.08 "	52.83 mm	70 °C	95 °F	35 °C	65 °F	18 °C	16.4 ft	5 m			25.4 mm
TE Connectivity AMP Connectors VERSAFIT-5/8-9-SP			0.03 in	0.76 mm	White	Polyolefin (PO)	144 Months	-55 C	135 °C			Flame Retardant	0.315 in	8 mm	1	2		Tubing Flexible	0.665 in	16.89 mm	70 °C	95 °F	35 °C	65 °F	18 °C
TE Connectivity AMP Connectors VERSAFIT-1/4-0-50MM			0.025 in	0.64 mm	Black	Polyolefin (PO)	144 Months	-55 C	135 °C	50 mm	0.164 ft	Flame Retardant	0.125 in	3.18 mm	1	2		Tubing Flexible	0.28 in	7.11 mm	70 °C	95 °F	35 °C	65 °F	18 °C						1.97 in
