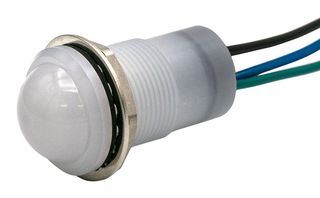

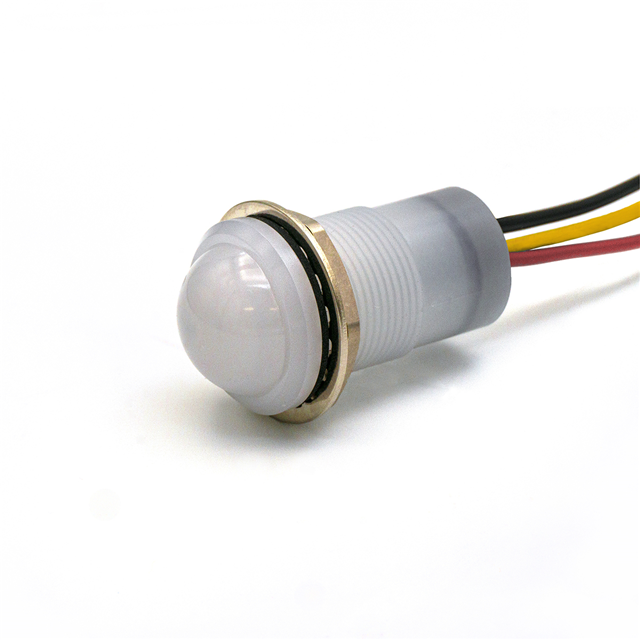

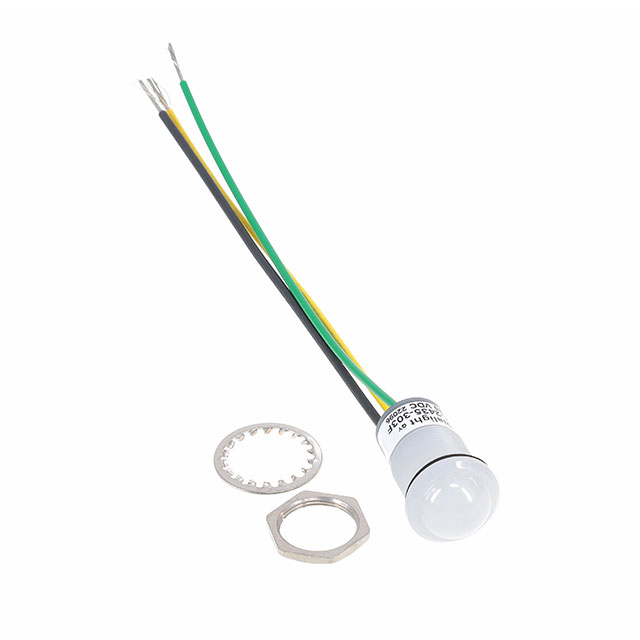

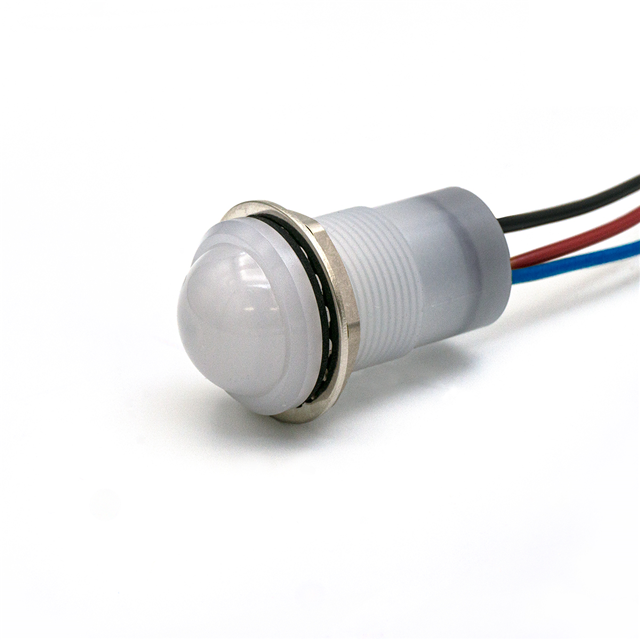

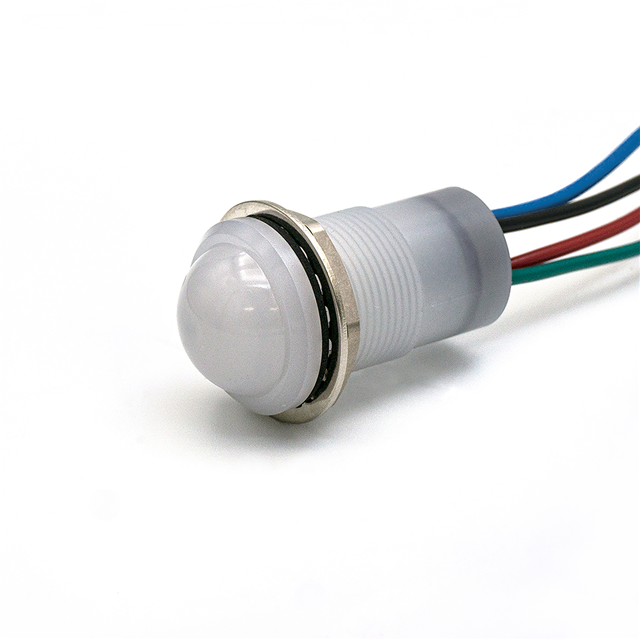

657-24 Series
Manufacturer: DIALIGHT
Beta
⌘K
MULTICOLOUR PANEL INDICATORS, RED, GREEN, 0.687 ", R 20MA, G 20MA, R 30V, G 30V
| Part | Type | Lens Size [diameter] | Ingress Protection | Lens Color | Panel Cutout Shape | Panel Cutout Dimensions | Panel Cutout Dimensions | Lamp Color | Lens Transparency | Ratings | Millicandela Rating [custom] | Millicandela Rating [custom] | Voltage [Max] | Voltage [Min] | Lens Style | Millicandela Rating | Millicandela Rating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | LED | 16.5 mm Dia | IP67 NEMA 4X | White | Round | 17.46 mm | 0.69 in | Green Red | Diffused | DC | 255 mcd | 500 mcd | 30 V | 10 V | Round with Domed Top | ||
 DIALIGHT | LED | 16.5 mm Dia | IP67 NEMA 4X | White | Round | 17.46 mm | 0.69 in | Green Red Yellow | Diffused | DC | 30 V | 10 V | Round with Domed Top | 255 mcd 260 mcd 500 mcd | |||
 DIALIGHT | LED | 16.5 mm Dia | IP67 NEMA 4X | White | Round | 17.46 mm | 0.69 in | Blue Red | Diffused | DC | 255 mcd | 30 V | 10 V | Round with Domed Top | 90 mcd | ||
 DIALIGHT | LED | 16.5 mm Dia | IP67 NEMA 4X | White | Round | 17.46 mm | 0.69 in | Blue Green | Diffused | DC | 30 V | 10 V | Round with Domed Top | 90 mcd 500 mcd | |||
 DIALIGHT | LED | 16.5 mm Dia | IP67 NEMA 4X | White | Round | 17.46 mm | 0.69 in | Green Yellow | Diffused | DC | 30 V | 10 V | Round with Domed Top | 260 mcd 500 mcd | |||
 DIALIGHT | LED | 16.5 mm Dia | IP67 NEMA 4X | White | Round | 17.46 mm | 0.69 in | Red Yellow | Diffused | DC | 255 mcd | 260 mcd | 30 V | 10 V | Round with Domed Top |
