MID Series
Manufacturer: OptiFuse
Beta
⌘K
FUSE AUTO 30A 32VDC AUTO LINK
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Response Time | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Package / Case | Voltage Rating - DC | Current Rating (Amps) | Fuse Type | Breaking Capacity @ Rated Voltage | DC Cold Resistance | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

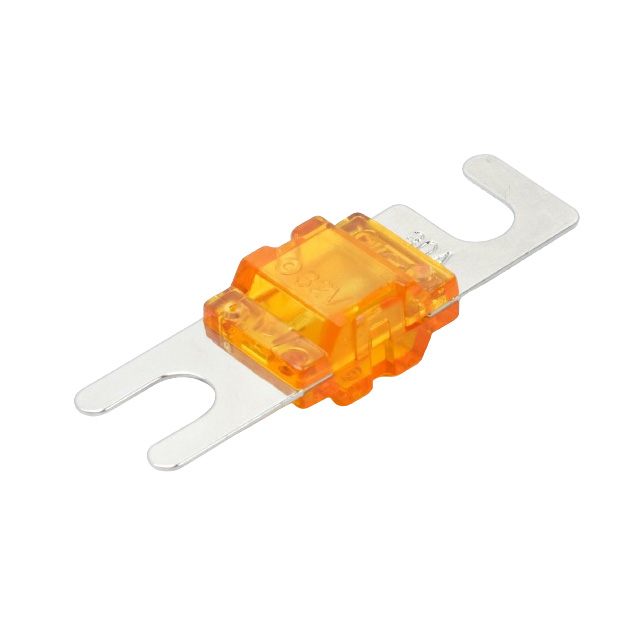

 OptiFuse | 16 mm | 0.472 " | 8.2 mm | 0.323 " | 12 mm | 0.63 in | Fast Blow | 125 °C | -40 C | Bolt Mount | Auto Link | 32 V | 30 A | Automotive | 1 kA | ||

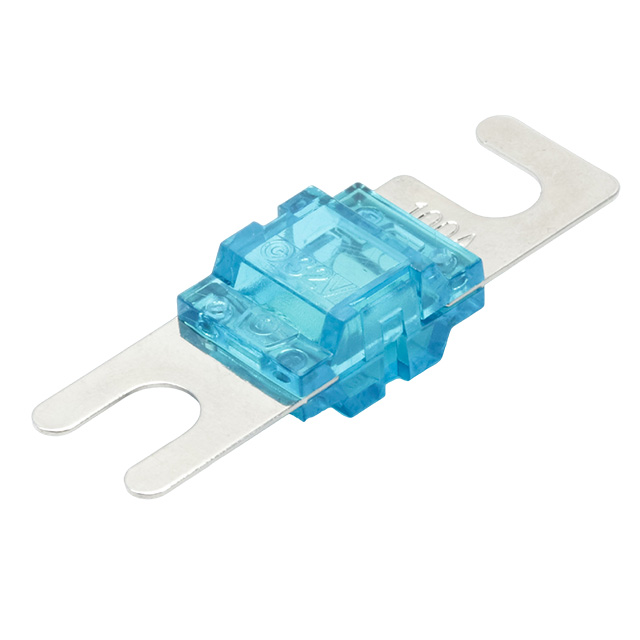

 OptiFuse | 16 mm | 0.472 " | 8.2 mm | 0.323 " | 12 mm | 0.63 in | Fast Blow | 125 °C | -40 C | Bolt Mount | Auto Link | 32 V | 100 A | Automotive | 1 kA | 0.00045 Ohms | Blue |

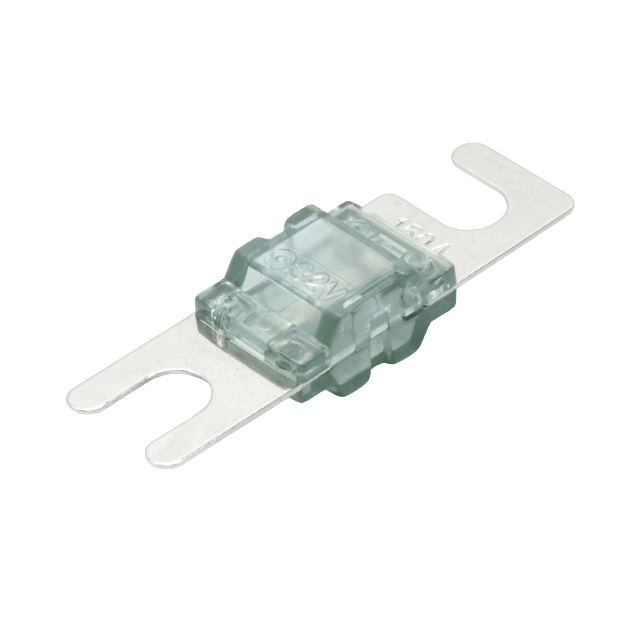

 OptiFuse | 16 mm | 0.472 " | 8.2 mm | 0.323 " | 12 mm | 0.63 in | Fast Blow | 125 °C | -40 C | Bolt Mount | Auto Link | 32 V | 150 A | Automotive | 1 kA | 0.00033 Ohms | Gray |

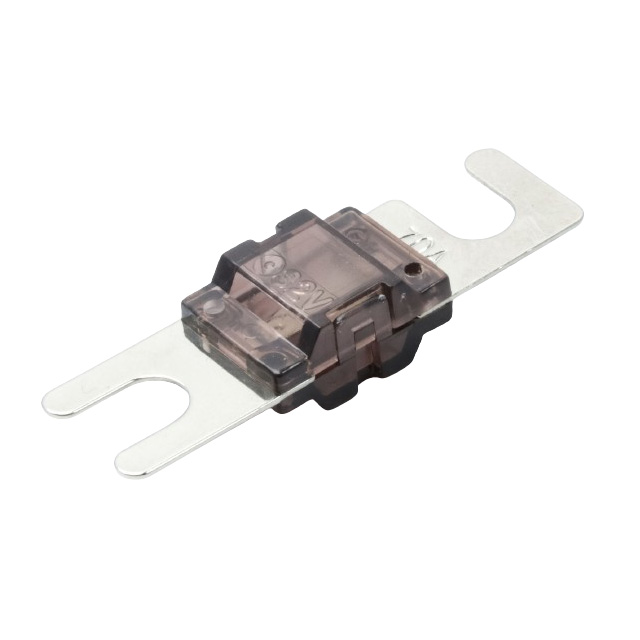

 OptiFuse | 16 mm | 0.472 " | 8.2 mm | 0.323 " | 12 mm | 0.63 in | Fast Blow | 125 °C | -40 C | Bolt Mount | Auto Link | 32 V | 70 A | Automotive | 1 kA | Brown | |

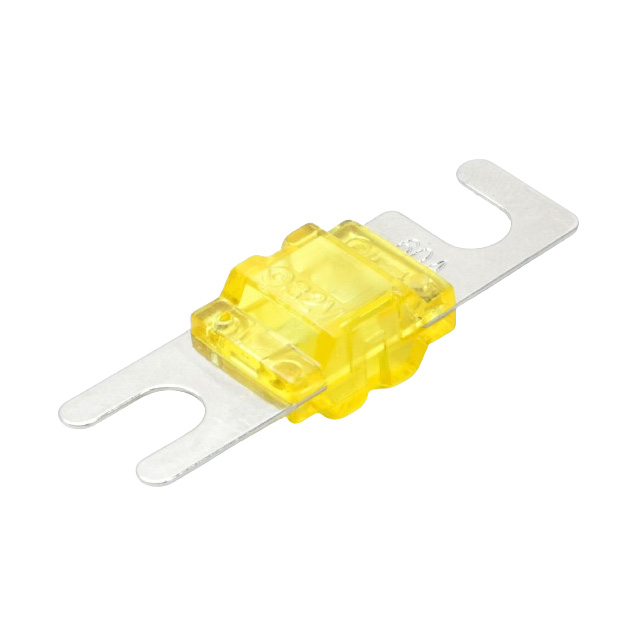

 OptiFuse | 16 mm | 0.472 " | 8.2 mm | 0.323 " | 12 mm | 0.63 in | Fast Blow | 125 °C | -40 C | Bolt Mount | Auto Link | 32 V | 60 A | Automotive | 1 kA | 0.00087 Ohms | Yellow |

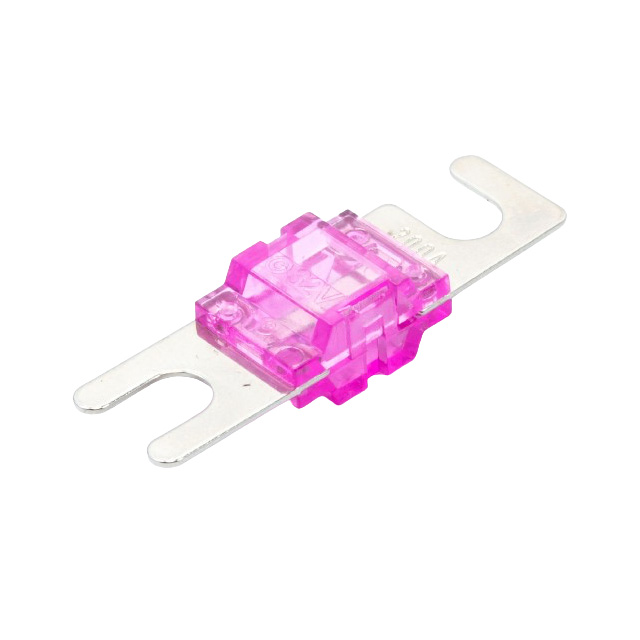

 OptiFuse | 16 mm | 0.472 " | 8.2 mm | 0.323 " | 12 mm | 0.63 in | Fast Blow | 125 °C | -40 C | Bolt Mount | Auto Link | 32 V | 200 A | Automotive | 1 kA | Violet | |
 OptiFuse | 16 mm | 0.472 " | 8.2 mm | 0.323 " | 12 mm | 0.63 in | Fast Blow | 125 °C | -40 C | Bolt Mount | Auto Link | 32 V | 50 A | Automotive | 1 kA | 0.00104 Ohms | Red |
