8885MN Series

Catalog

CABLE 12CON 22AWG BLUE SHLD

Part	Shield Coverage	Shield Material	Features	Wire Gauge	Number of Conductors	Shield Type	Jacket (Insulation) Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Conductor Material	Usage	Length [x]	Length [x]	Length	Length
Belden Inc. 8885MN 006100	100 %	Aluminum	Drain Wire	22 AWG	12	Foil	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	300 VDC	0.244 in	6.2 mm	Multi-Conductor	Polypropylene (PP)	0.406 mm	0.016 in	Blue	34 AWG	19	UL Style 2937	Copper Tinned	Audio Control Instrumentation	100 ft	30.5 m

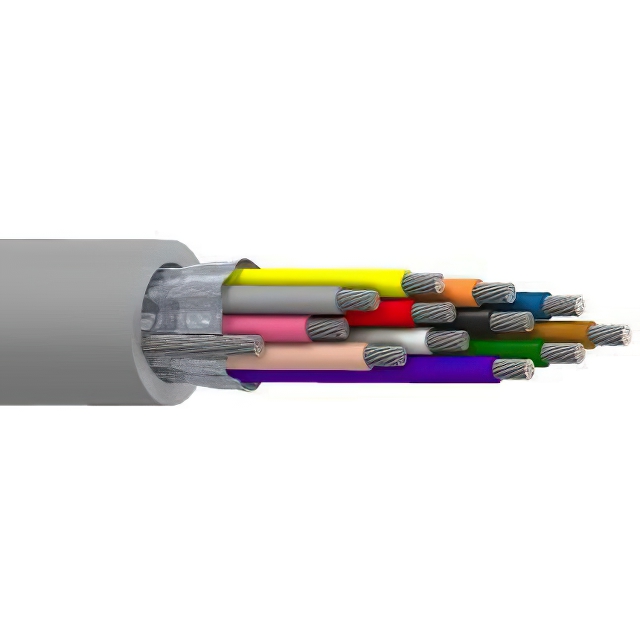

Belden Inc. 8885MN 008100	100 %	Aluminum	Drain Wire	22 AWG	12	Foil	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C		0.244 in	6.2 mm	Multi-Conductor	Polypropylene (PP)	0.406 mm	0.016 in	Gray	34 AWG	19		Copper Tinned	Audio Control Instrumentation	100 ft	30.5 m
Belden Inc. 8885MN 0061000	100 %	Aluminum	Drain Wire	22 AWG	12	Foil	Poly-Vinyl Chloride (PVC)	80 °C	-20 ░C	300 VDC	0.244 in	6.2 mm	Multi-Conductor	Polypropylene (PP)	0.406 mm	0.016 in	Blue	34 AWG	19	UL Style 2937	Copper Tinned	Audio Control Instrumentation			304.8 m	1000 ft
