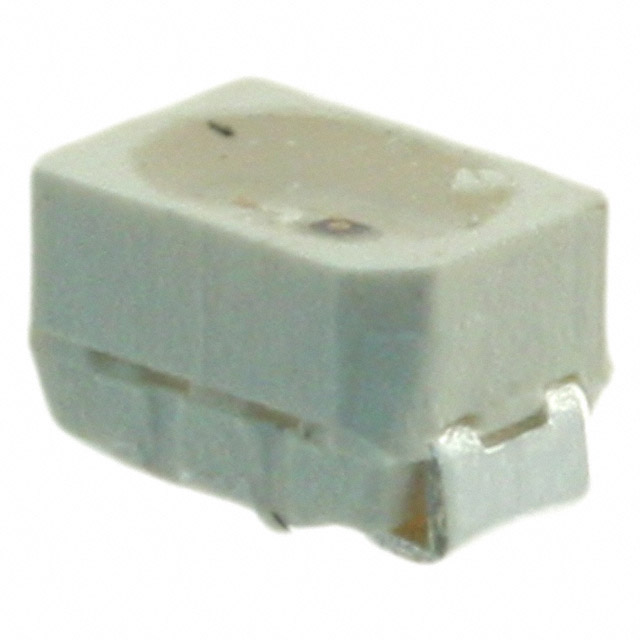

AA2214 Series

Catalog

LED YELLOW CLEAR SMD

Part	Current - Test	Color	Lens Color	Package Name	Configuration	Wavelength - Dominant	Lens Style	Package / Case	Mounting Type	Lens Width	Lens Length	Voltage - Forward (Vf) (Typ)	Viewing Angle	Lens Transparency	Height (Max)	Size / Dimension Width	Size / Dimension Length	Millicandela Rating	Wavelength - Peak

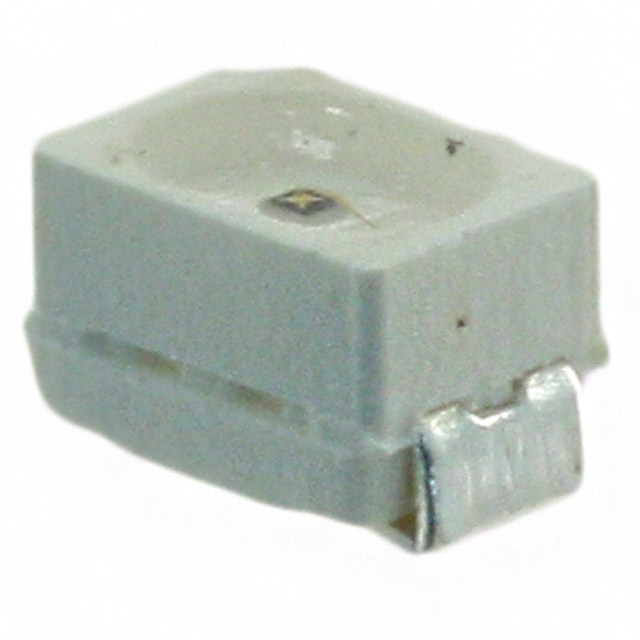

Kingbright AA2214SYSK	20 mA	Yellow	Colorless	SMD	Standard	590 nm	Flat Top Oval	2-SMD J-Lead	Surface Mount	1.15 mm	1.65 mm	2 V	120 °	Clear	1.4 mm	1.4 mm	2 mm	250 mcd	590 nm
Kingbright AA2214SES/J4	20 mA	Orange	Colorless	SMD	Standard	605 nm	Flat Top Oval	2-SMD J-Lead	Surface Mount	1.15 mm	1.65 mm	2.2 V	120 °	Clear	1.4 mm	1.4 mm	2 mm	700 mcd	611 nm
Kingbright AA2214CGSK	20 mA	Green	Colorless	SMD	Independent	570 nm	Flat Top Oval	2-SMD J-Lead	Surface Mount	1.15 mm	1.65 mm	2.1 V	120 °	Clear	1.4 mm	1.4 mm	2 mm	70 mcd	574 nm

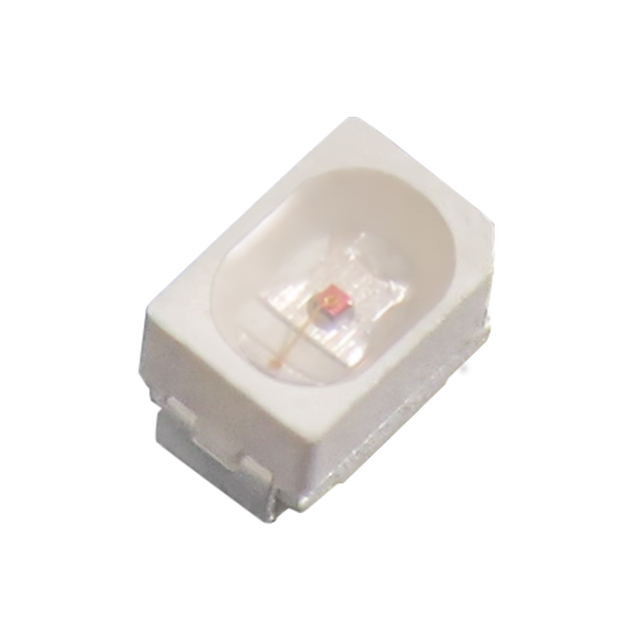

Kingbright AA2214ZGSK	20 mA	Green	Colorless	2-SMD	Independent	525 nm	Flat Top Oval	2-SMD J-Lead	Surface Mount	1.15 mm	1.65 mm	3.3 V	120 °	Clear	1.4 mm	1.4 mm	2 mm	650 mcd	515 nm
Kingbright AA2214QBS/D	20 mA	Blue	Colorless	SMD	Standard	465 nm	Flat Top Oval	2-SMD J-Lead	Surface Mount	1.15 mm	1.65 mm	3.3 V	120 °	Clear	1.4 mm	1.4 mm	2 mm	150 mcd	460 nm
Kingbright AA2214SESK	20 mA	Orange	Colorless	SMD	Standard	601 nm	Flat Top Oval	2-SMD J-Lead	Surface Mount	1.15 mm	1.65 mm	2.1 V	120 °	Clear	1.4 mm	1.4 mm	2 mm	180 mcd	610 nm

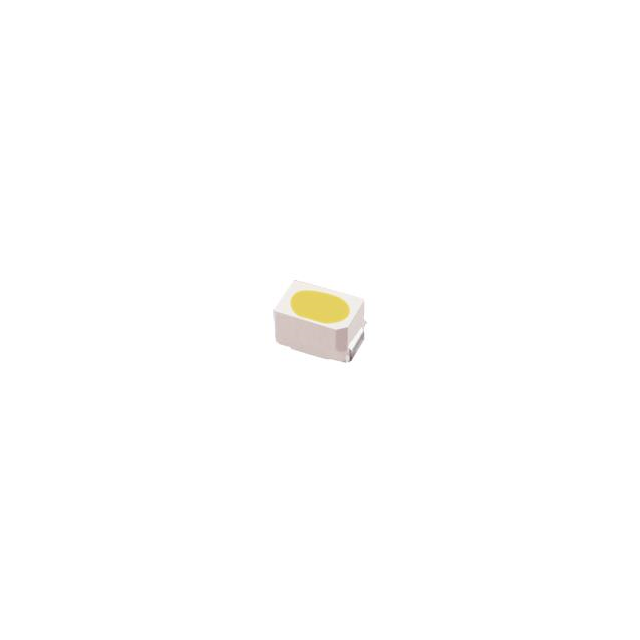

Kingbright AA2214VRBXS/A-TR-AMT	20 mA	Blue	Colorless	SMD	Standard		Flat Top Oval	2-SMD J-Lead	Surface Mount	1.15 mm	1.65 mm	3.3 V	120 °	Clear	1.4 mm	1.4 mm	2 mm	1300 mcd

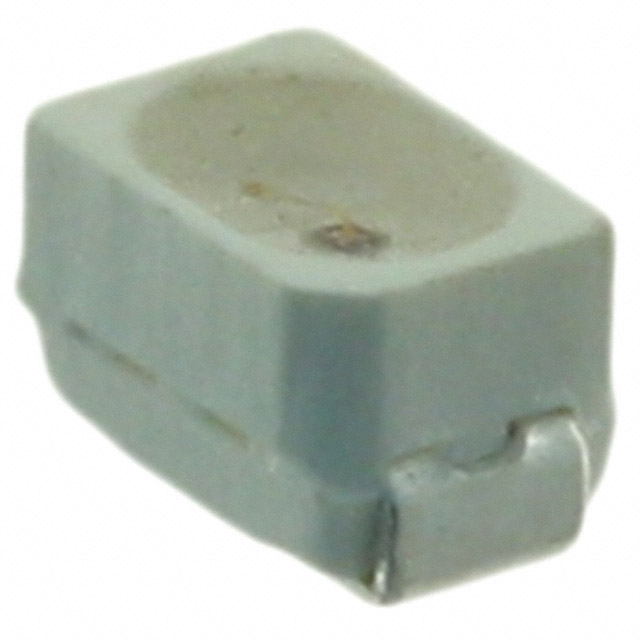

Kingbright AA2214SURSK	20 mA	Red	Colorless	SMD	Standard	630 nm	Flat Top Oval	2-SMD J-Lead	Surface Mount	1.15 mm	1.65 mm	1.95 V	120 °	Clear	1.4 mm	1.4 mm	2 mm	100 mcd	645 nm
Kingbright AA2214ZGS	20 mA	Green	Colorless	SMD	Standard	525 nm	Flat Top Oval	2-SMD J-Lead	Surface Mount	1.15 mm	1.65 mm	3.3 V	120 °	Clear	1.4 mm	1.4 mm	2 mm	700 mcd	515 nm
