3237 Series

Catalog

CONN RING CIRC 10-12AWG #3/8

Part	Terminal Type	Mounting Type	Thickness	Thickness	Length - Overall [x]	Length - Overall	Insulation	Stud/Tab Size	Termination	Features	Contact Material	Width - Outer Edges [y]	Width - Outer Edges [y]	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries	Width - Outer Edges [custom]	Width - Outer Edges [custom]	Stud/Tab Size	Length - Overall [x]	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]

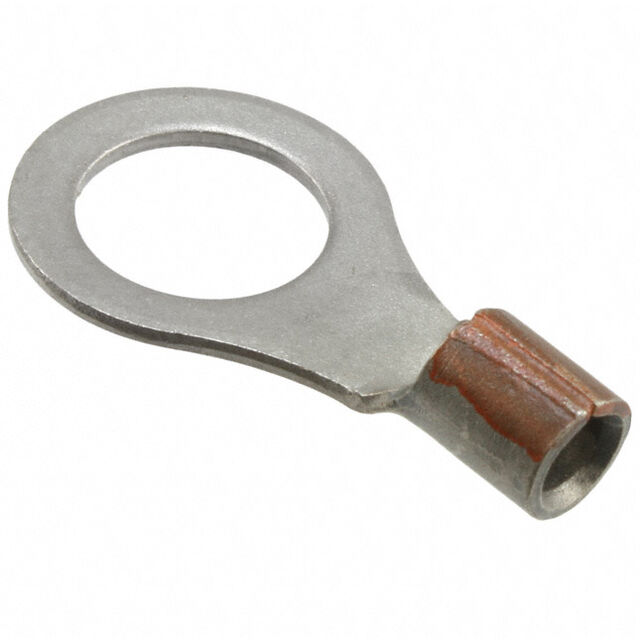

TE Connectivity Raychem Cable Protection 323747	Circular	Free Hanging (In-Line)	0.99 mm	0.039 in	1.098 "	27.89 mm	Non-Insulated	3/8 Stud	Crimp	Brazed Seam High Temperature Serrated Termination	Nickel	0.593 in	15.06 mm	12 AWG	10 AWG

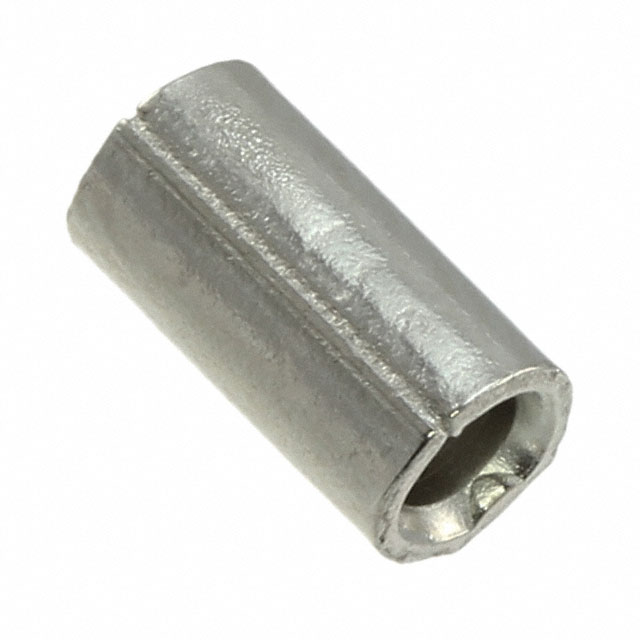

TE Connectivity Raychem Cable Protection 323794	Inline Individual Openings (Parallel)						Non-Insulated		Crimp	Brazed Seam Serrated Mating Area						2

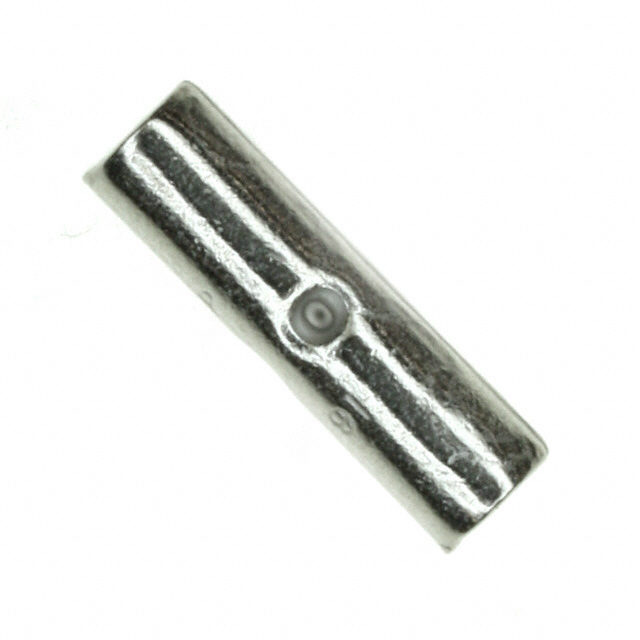

TE Connectivity Raychem Cable Protection 323795	Butt Splice Individual Openings Inline						Non-Insulated		Crimp	Brazed Seam Serrated Mating Area						2
TE Connectivity Raychem Cable Protection 323752	Circular	Free Hanging (In-Line)	1.02 mm	0.04 in	1.273 in		Non-Insulated		Crimp	High Temperature Serrated Termination	Nickel			12 AWG	10 AWG		13.49 mm	0.531 "	0.3125 Stud	32.33 mm	0.15 "	3.81 mm	0.23 in	5.84 mm

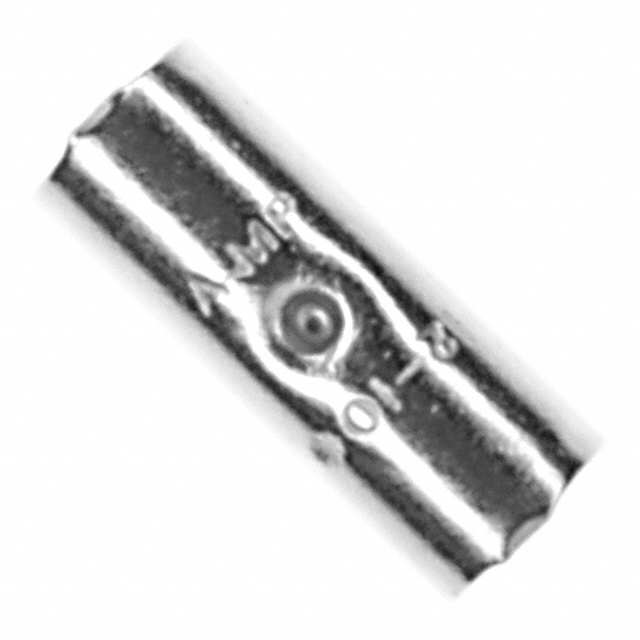

TE Connectivity Raychem Cable Protection 323755	Butt Splice Individual Openings Inline						Non-Insulated		Crimp	Brazed Seam Serrated Mating Area				12 AWG	10 AWG	2
