CONT-JL0 Series

Catalog

CONTACT SOCKET 10-12AWG CRIMP

Part	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Contact Material	Type	Contact Size	Contact Termination	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Type	Contact Finish
JAE Electronics CONT-JL05-08S-C2-A528G-H	3.5 mm˛	5.5 mm˛	Copper Alloy	Signal Machined	8	Crimp	3.5 mm²	5.5 mm²	10 AWG	12 AWG	Socket

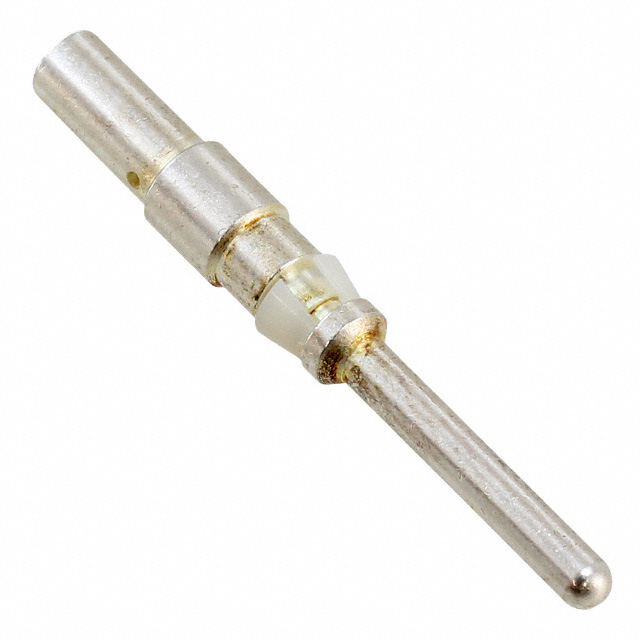

JAE Electronics CONT-JL05-12P-C1-10			Copper Alloy	Signal Machined	12	Crimp	1.25 mm²	3.5 mm²	12 AWG	16 AWG	Pin	Silver

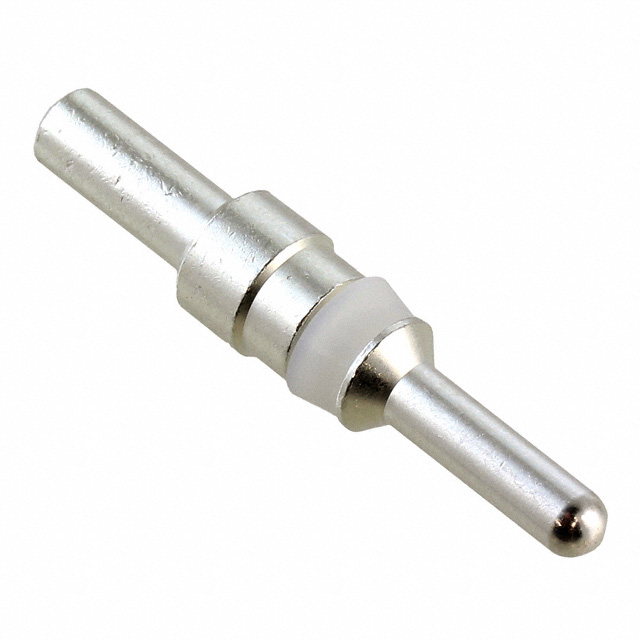

JAE Electronics CONT-JL05-08P-C2-10	3.5 mm˛	5.5 mm˛	Copper Alloy	Signal Machined	8	Crimp	3.5 mm²	5.5 mm²	10 AWG	12 AWG	Pin	Silver
JAE Electronics CONT-JL05-16S-C2-A528G-H			Copper Alloy	Signal Machined	16	Crimp	0.5 mm²	1.25 mm²	16 AWG	20 AWG	Socket
JAE Electronics CONT-JL05-12S-C1-10			Copper Alloy	Signal Machined	12	Crimp	1.25 mm²	3.5 mm²	12 AWG	16 AWG	Socket	Silver

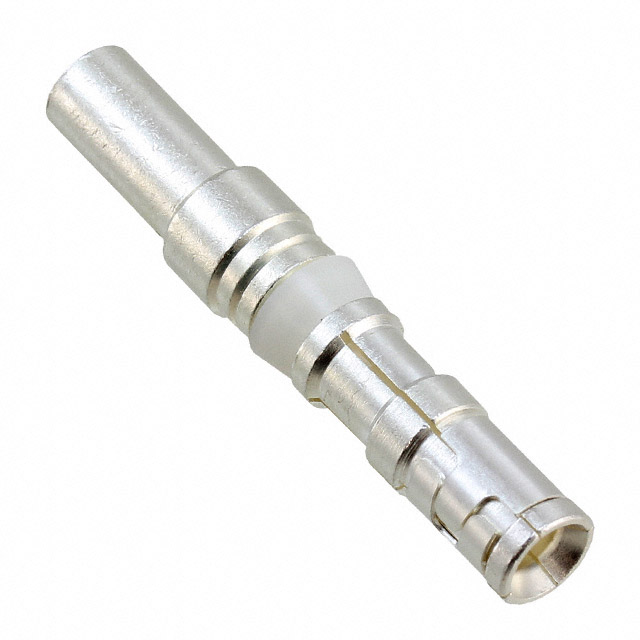

JAE Electronics CONT-JL05-08S-C1-10	5.5 mm˛	8 mm˛	Copper Alloy	Signal Machined	8	Crimp	5.5 mm²	8 mm²	8 AWG	10 AWG	Socket	Silver

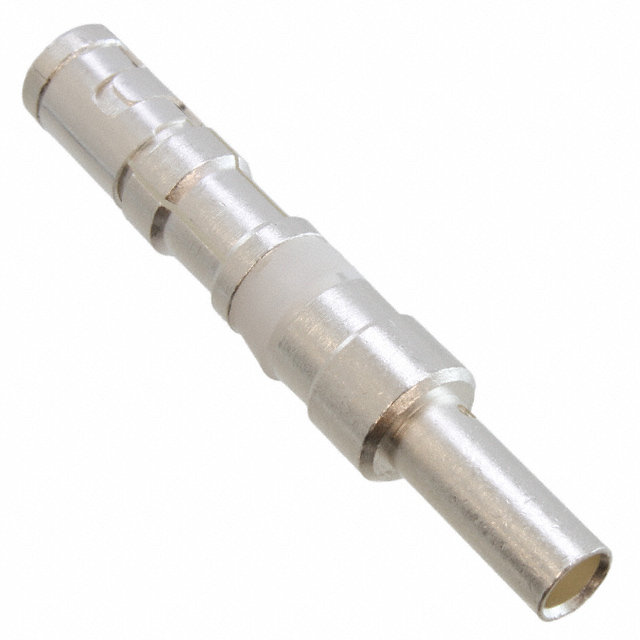

JAE Electronics CONT-JL05-08S-C2-10	3.5 mm˛	5.5 mm˛	Copper Alloy	Signal Machined	8	Crimp	3.5 mm²	5.5 mm²	10 AWG	12 AWG	Socket	Silver

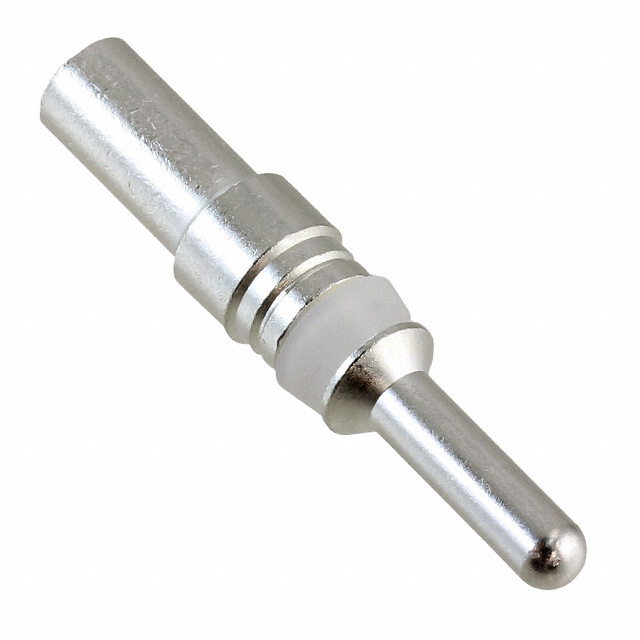

JAE Electronics CONT-JL05-08P-C1-10	5.5 mm˛	8 mm˛	Copper Alloy	Signal Machined	8	Crimp	5.5 mm²	8 mm²	8 AWG	10 AWG	Pin	Silver
