747904 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

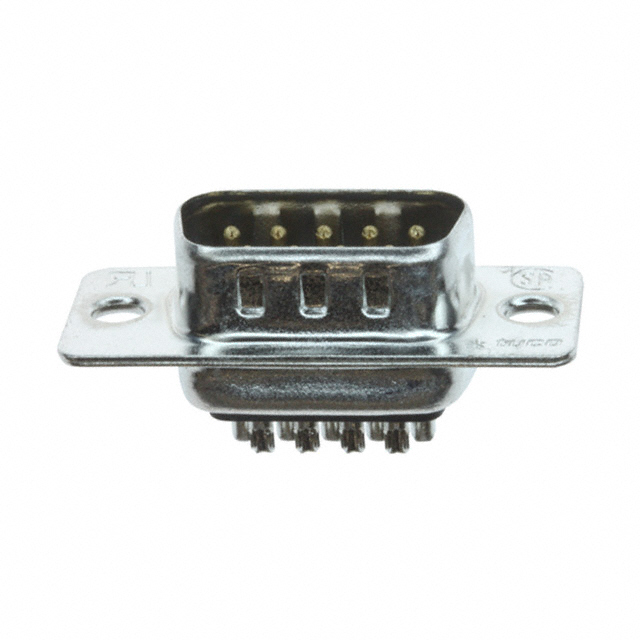

D SUB CONNECTOR, DB9, 9 CONTACTS, PLUG, SOLDER CUP, DE, AMPLIMITE HD-20 SERIES, STEEL BODY
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Color | Dielectric Material | Contact Material | Current Rating (Amps) | Material Flammability Rating | Contact Type | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Number of Rows [custom] | Contact Finish | Features | Connector Style | Mounting Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Positions | Contact Finish Thickness | Shell Material, Finish [custom] | Shell Material, Finish [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 250 V | Black | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 3 A | UL94 V-0 | Signal | Housing/Shell (Unthreaded) | 30 Áin | 0.76 Ám | Plug Male Pins | 2 | Gold | Grounding Indents | D-Sub | Panel Mount | 1 | DE E | 9 | |||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 250 V | Black | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 3 A | UL94 V-0 | Signal | Cable Side (4-40) | 8 µin | 0.203 çm | Plug Male Pins | 2 | Gold | Grounding Indents | D-Sub | Free Hanging (In-Line) | 1 | DE E | 9 | |||
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 250 V | Black | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 3 A | UL94 V-0 | Signal | Housing/Shell (Unthreaded) | 8 µin | 0.203 çm | Plug Male Pins | 2 | Gold | Grounding Indents | D-Sub | Free Hanging (In-Line) | 1 | DE E | 9 | Flash | ||
TE Connectivity AMP Connectors | -55 C | 105 ░C | 250 V | Black | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 3 A | UL94 V-0 | Signal | Housing/Shell (Unthreaded) | 8 µin | 0.203 çm | Plug Male Pins | 2 | Gold | Grounding Indents | D-Sub | Free Hanging (In-Line) | 1 | DE E | 9 | |||
TE Connectivity AMP Connectors | -55 C | 105 ░C | 250 V | Black | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 3 A | UL94 V-0 | Signal | Cable Side (4-40) | 8 µin | 0.203 çm | Plug Male Pins | 2 | Gold | Grounding Indents | D-Sub | Free Hanging (In-Line) | 1 | DE E | 9 | |||
TE Connectivity AMP Connectors | -55 C | 105 ░C | 250 V | Black | Polybutylene Terephthalate (PBT) Glass Filled | Brass | 3 A | UL94 V-0 | Signal | Housing/Shell (Unthreaded) | 8 µin | 0.203 çm | Plug Male Pins | 2 | Gold | D-Sub | Free Hanging (In-Line) | 1 | DE E | 9 | Blue Zinc Plated | Steel |
