C146 10F006 Series

Catalog

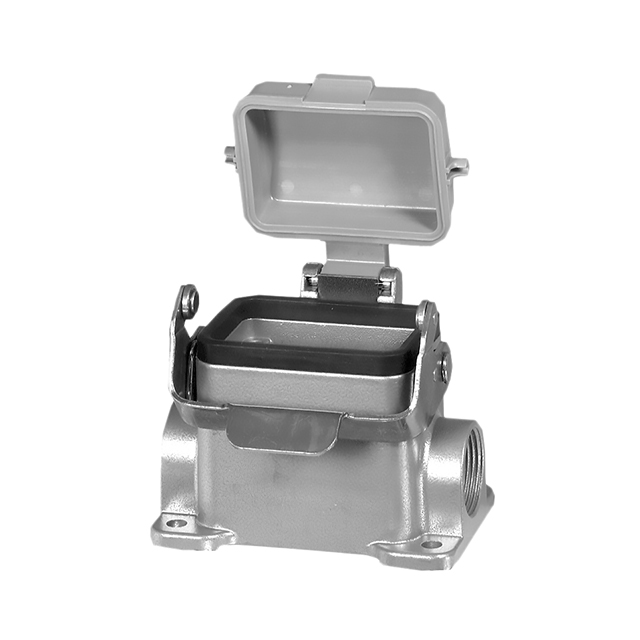

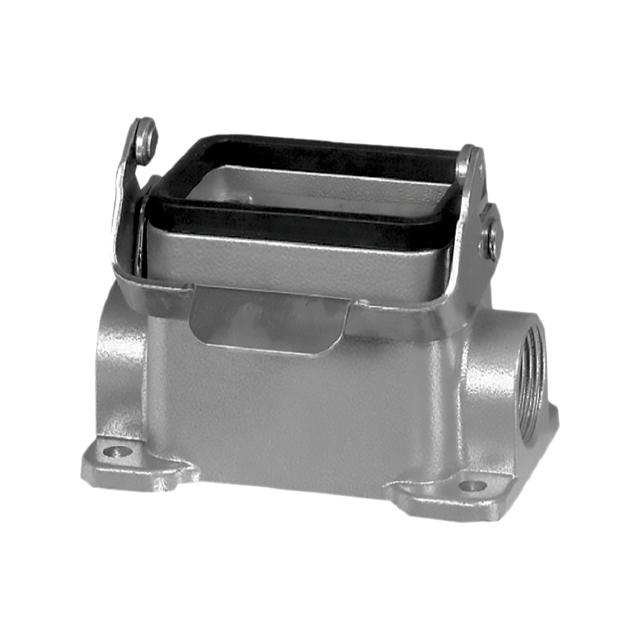

CONN BASE SIDE ENTRY SZE6 PG16

Part	Connector Type	Ingress Protection	Style	Housing Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Thread Size	Operating Temperature [Min]	Operating Temperature [Max]	Lock Location
Amphenol Tuchel Industrial C146 10F006 500 1	Base - Box Mount	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Alloy Die Cast	54 mm	84 mm	2.126 in	2.126 in	3.307 "	54 mm	PG16	-40 C	100 °C	Locking Clip (1) on Base Bottom
Amphenol Tuchel Industrial C146 10F006 606 1	Base - Box Mount	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Alloy Die Cast	54 mm	84 mm	2.126 in	2.126 in	3.307 "	54 mm	PG16	-40 C	100 °C	Locking Clip (1) on Base Bottom
