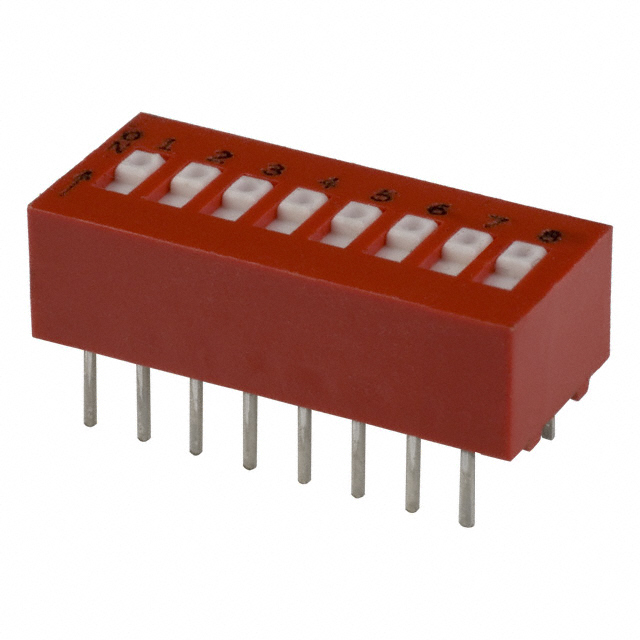

78RB08 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH SLIDE DIP SPST 0.15A 30V
| Part | Body Material | Mechanical Life | Electrical Life | Length | Length | Number of Positions | Washable | Contact Material | Termination Style | Actuator Type | Circuit | Pitch | Pitch | Voltage Rating | Contact Finish | Actuator Level | Mounting Type | Height Above Board | Height Above Board | Operating Temperature [Max] | Operating Temperature [Min] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | Thermoplastic | 2000 Cycles | 2000 Steps | 0.88 in | 22.35 mm | 8 | Copper Alloy | PC Pin | Slide (Standard) | SPST | 2.54 mm | 0.1 " | 30 VDC | Gold | Flush Recessed | Through Hole | 6.73 mm | 0.265 in | 85 °C | -40 C | Tape Seal | |
Grayhill Inc. | Thermoplastic | 2000 Cycles | 2000 Steps | 0.88 in | 22.35 mm | 8 | Copper Alloy | PC Pin | Slide (Standard) | SPST | 2.54 mm | 0.1 " | 30 VDC | Gold | Flush Recessed | Through Hole | 6.73 mm | 0.265 in | 85 °C | -40 C |
