R18015 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

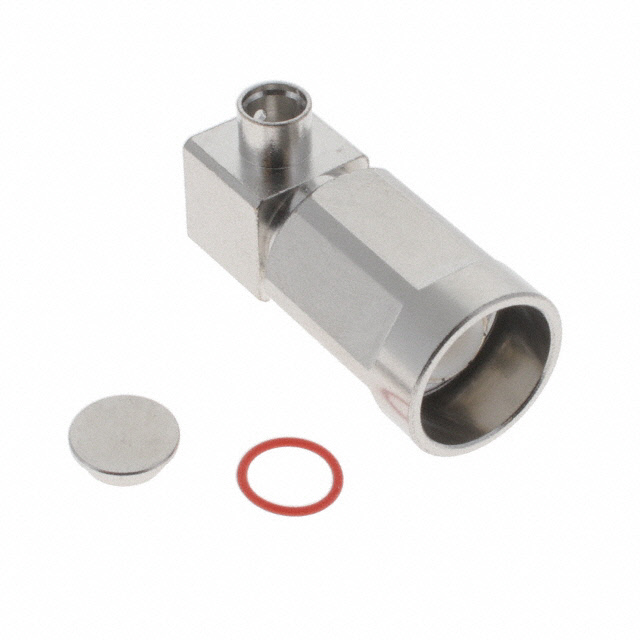

NEX10 M RA THD SD.141
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Body Finish | Voltage Rating | Center Contact Plating | Ingress Protection | Contact Termination | Housing Color | Impedance | Connector Type | Fastening Type | Center Contact Material | Connector Style | Number of Ports | Mounting Type | Frequency - Max [Max] | Shield Termination | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -55 C | 125 °C | Polytetrafluoroethylene (PTFE) | Brass | White Bronze | 335 V | Silver | IP68 - Dust Tight Waterproof | Solder | Silver | 50 Ohms | Plug Male Pin | Threaded | Brass | NEX10 | 1 | Free Hanging (In-Line) Right Angle | 20 GHz | Solder | |
 Radiall USA, Inc. | -55 C | 125 °C | Polytetrafluoroethylene (PTFE) | Brass | 335 V | Silver | Solder | 50 Ohms | Plug Male Pin | Snap-On | Brass | NEX10 | 1 | Free Hanging (In-Line) Right Angle | 20 GHz | Solder | 1 Connector 1 End Cap |
