6352 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

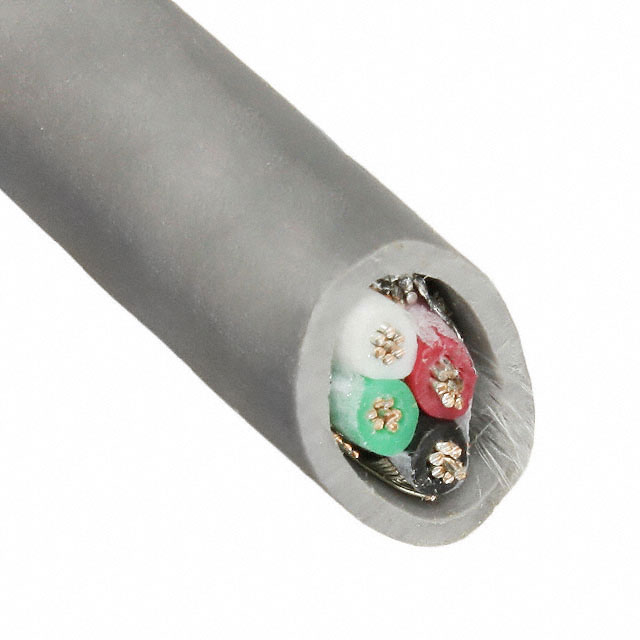

CABLE 4COND 24AWG SHLD
| Part | Shield Coverage | Shield Material | Jacket Color | Shield Type | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Wire Gauge | Features | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Number of Conductors | Ratings | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Slate | Braid Foil | Copper Tinned | 0.035 in | 0.889 mm | Multi-Conductor | 24 AWG | Drain Wire | 5.87 mm | 0.231 in | Poly-Vinyl Chloride (PVC) | 4 | UL Style 2919 | Foam Polyethylene (FPE) | 80 °C | -20 ░C | 304.8 m | 1000 ft | 7 | 32 AWG | 300 VDC |
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Slate | Braid Foil | Copper Tinned | 0.035 in | 0.889 mm | Multi-Conductor | 24 AWG | Drain Wire | 5.87 mm | 0.231 in | Poly-Vinyl Chloride (PVC) | 4 | UL Style 2919 | Foam Polyethylene (FPE) | 80 °C | -20 ░C | 152.4 m | 500 ft | 7 | 32 AWG | 300 VDC |
