20.21.8 Series
Manufacturer: Finder Relays, Inc.
Beta
⌘K

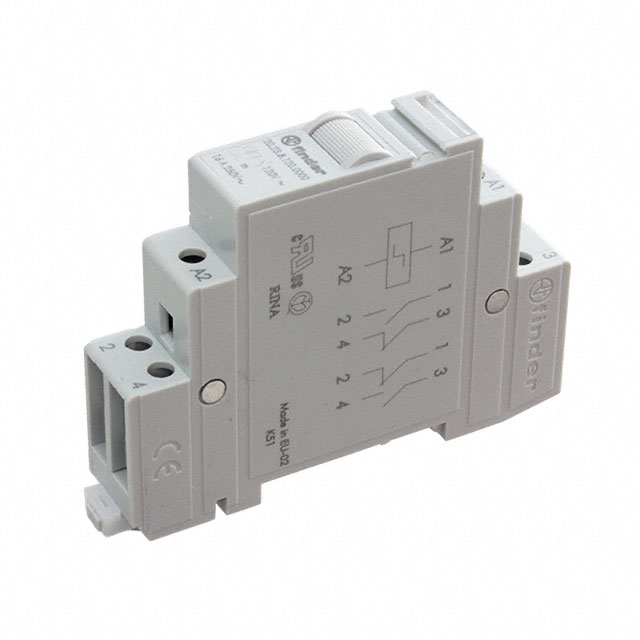

RELAY IMPULSE SPST 16A 120V
| Part | Coil Resistance | Contact Material | Must Operate Voltage | Approval Agency | Relay Type | Contact Form | Switching Voltage [Max] | Coil Current | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Contact Rating (Current) | Features | Load - Max Switching | Coil Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Finder Relays, Inc. | 680 Ohms | Silver Nickel (AgNi) | 102 VAC | CE cULus EAC RINA UKCA | Impulse | SPST-NO (1 Form A) | 400 VAC | 54 mA | Screw Terminal | 40 °C | -40 C | 120 VAC | 16 A | Mechanical Indicator Test Button | 6400 VA | Latching Single Coil | DIN Rail |
 Finder Relays, Inc. | 27 Ohms | Silver Nickel (AgNi) | CE cULus EAC RINA UKCA | Impulse | SPST-NO (1 Form A) | 400 VAC | 275 mA | Screw Terminal | 40 °C | -40 C | 24 VAC | 16 A | Mechanical Indicator Test Button | 6400 VA | Latching Single Coil | DIN Rail | |
 Finder Relays, Inc. | 2500 Ohms | Silver Nickel (AgNi) | 192 VAC | CE cULus EAC RINA UKCA | Impulse | SPST-NO (1 Form A) | 400 VAC | 28 mA | Screw Terminal | 40 °C | -40 C | 230 VAC | 16 A | Mechanical Indicator Test Button | 6400 VA | Latching Single Coil | DIN Rail |
Finder Relays, Inc. | 2.7 kOhms | Silver Nickel (AgNi) | 204 VAC | CE cULus EAC RINA UKCA | Impulse | SPST-NO (1 Form A) | 400 VAC | 27.5 mA | Screw Terminal | 40 °C | -40 C | 240 VAC/DC | 16 A | Mechanical Indicator Test Button | 6400 VA | Latching Single Coil | DIN Rail |
