DRA5113 Series
Manufacturer: Panasonic Industrial Automation Sales
Beta
⌘K

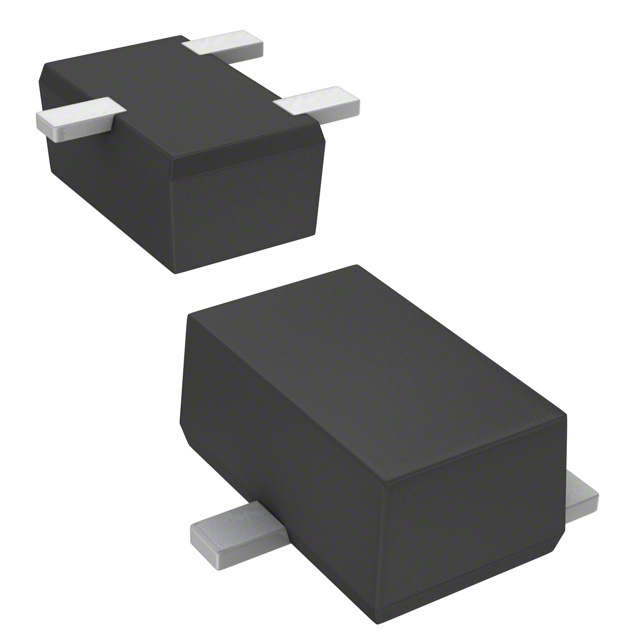

TRANS PREBIAS PNP 50V SMINI3
| Part | DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | Vce Saturation (Max) @ Ib, Ic | Resistor - Emitter Base (R2) | Resistors Included | Current - Collector Cutoff (Max) [Max] | Supplier Device Package | Voltage - Collector Emitter Breakdown (Max) [Max] | Package / Case | Mounting Type | Resistor - Base (R1) | Current - Collector (Ic) (Max) [Max] | Transistor Type | Power - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panasonic Industrial Automation Sales | 30 | 250 mV | 10 kOhms | R1 and R2 | 500 nA | SMini3-F2-B | 50 V | SC-85 | Surface Mount | 1 kOhms | 100 mA | PNP - Pre-Biased | 150 mW |
