110-99 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN IC DIP SOCKET 8POS TIN-LEAD
| Part | Current Rating (Amps) | Termination Post Length | Termination Post Length | Type | Type | Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post | Mounting Type | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [x] | Number of Positions or Pins (Grid) [y] | Contact Material - Mating | Contact Finish - Post | Housing Material | Pitch - Mating | Pitch - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Features | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Post | Pitch - Post | Contact Resistance | Material Flammability Rating | Type [custom] | Type [custom] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | 7.62 mm | 0.3 in | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | 8 | 2 | 4 | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Open Frame | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | ||||||
 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | 10 mOhm | UL94 V-0 | 15.24 mm | 0.6 in | ||||||||
Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | 2 | 25 | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | 10 mOhm | UL94 V-0 | 15.24 mm | 0.6 in | 50 | |||||

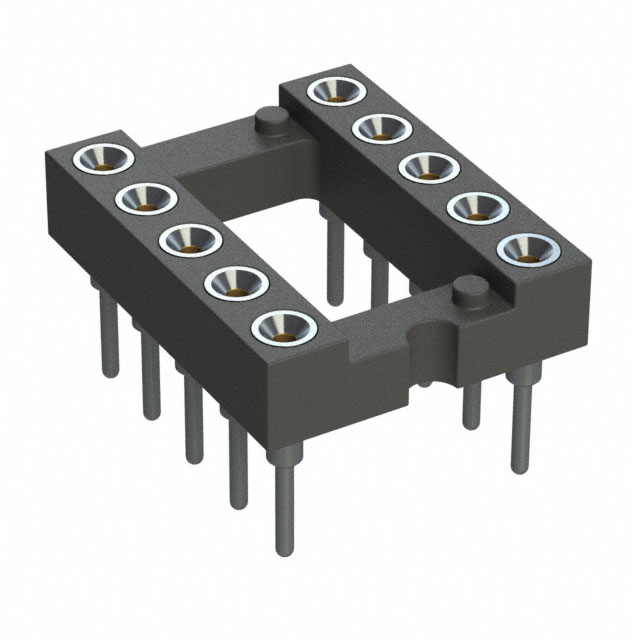

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | 7.62 mm | 0.3 in | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | 10 | 2 | 5 | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Open Frame | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | ||||||
Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | 7.62 mm | 0.3 in | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | 22 | 2 | 11 | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | 10 mOhm | UL94 V-0 | |||||

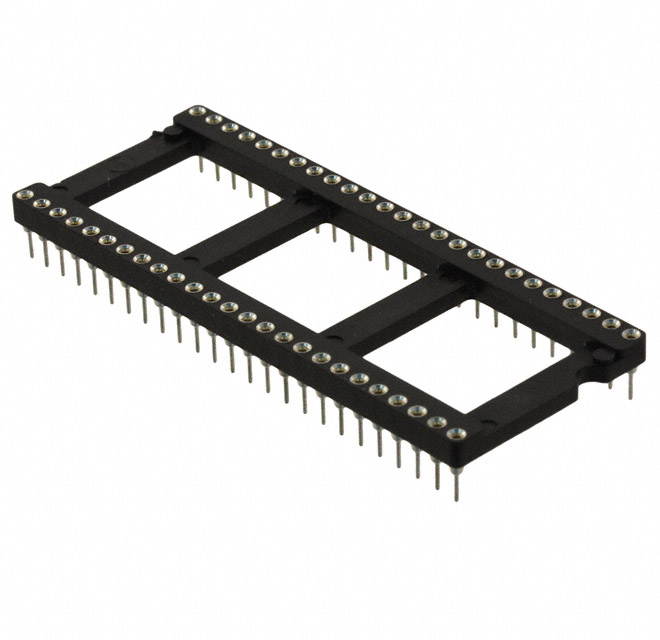

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | 22.86 mm | 0.9 in | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | 2 | 25 | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Open Frame | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | 50 | ||||||

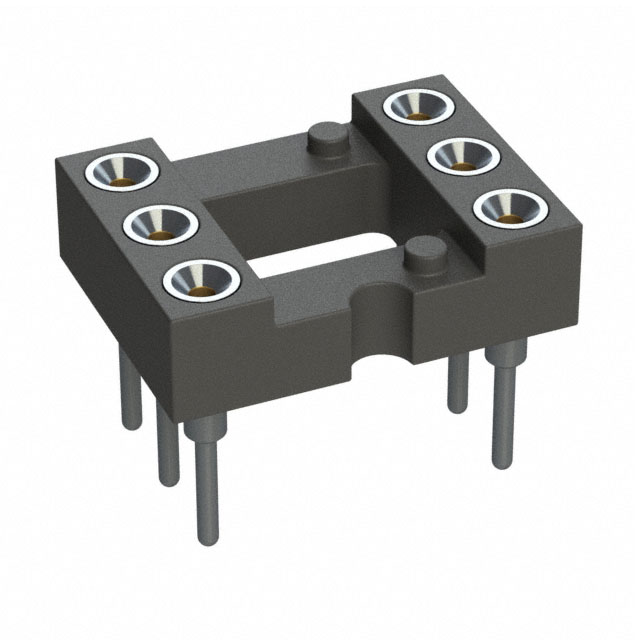

 Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | 7.62 mm | 0.3 in | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | 6 | 2 | 3 positions or pins | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Open Frame | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | ||||||
Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | 24 | 2 | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | 10 mOhm | UL94 V-0 | 15.24 mm | 0.6 in | 48 | |||||
Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | 42 | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | 10 mOhm | UL94 V-0 | 15.24 mm | 0.6 in | |||||||
Mill-Max Manufacturing Corp. | 3 A | 0.125 in | 3.18 mm | 22.86 mm | 0.9 in | DIP | 200 µin | 5.08 µm | Brass Alloy | Through Hole | 2 | 25 | Beryllium Copper | Tin-Lead | Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 0.1 " | 2.54 mm | -55 C | 125 °C | Solder | Tin-Lead | 5.08 µm | 200 µin | 0.1 in | 2.54 mm | 10 mOhm | UL94 V-0 | 50 |
