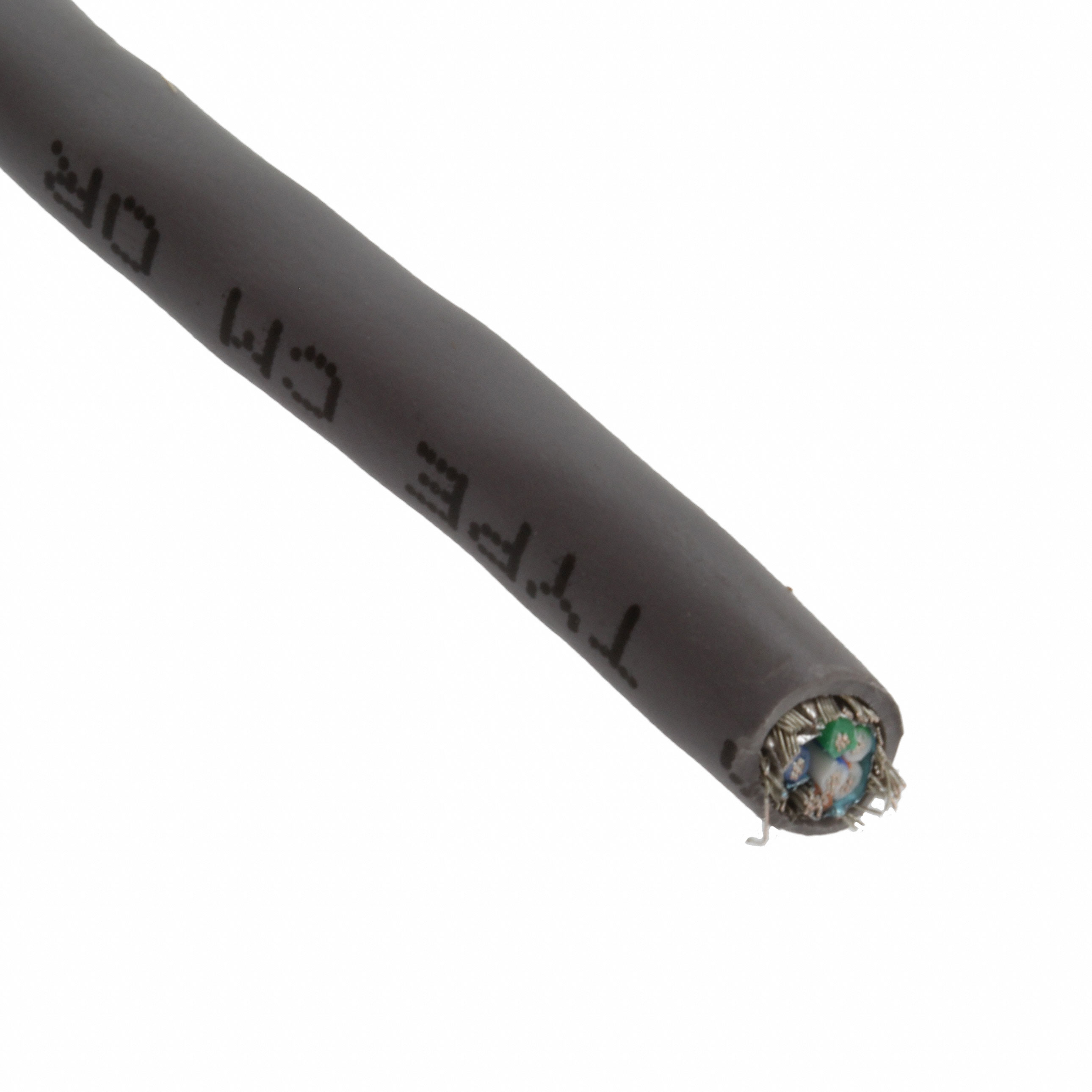

6363 Series

Catalog

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 3 PAIR, 24 AWG, 0.23 MM², 500 FT, 152.4 M

Part	Shield Coverage	Shield Material	Number of Conductors	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Conductor Material	Length	Length	Conductor Insulation	Shield Type	Ratings	Cable Type	Voltage	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Features	Length [x]	Length [x]
ALPHA WIRE 6363 SL002	65 % 100 %	Aluminum Copper Tinned	6	24 AWG	0.813 mm	0.032 in	80 °C	-20 ░C	Slate	Copper Tinned	152.4 m	500 ft	Poly-Vinyl Chloride (PVC)	Braid Foil	UL Style 2464	Multi-Pair	300 VDC	Poly-Vinyl Chloride (PVC)	7	32 AWG	6.25 mm	0.246 in	Drain Wire
ALPHA WIRE 6363 SL005			6	24 AWG	0.813 mm	0.032 in	80 °C	-20 ░C	Slate	Copper Tinned			Poly-Vinyl Chloride (PVC)	Braid Foil	UL Style 2464	Multi-Pair	300 VDC	Poly-Vinyl Chloride (PVC)	7	32 AWG	6.25 mm	0.246 in	Drain Wire	100 ft	30.5 m
ALPHA WIRE 6363 SL001	65 % 100 %	Aluminum Copper Tinned	6	24 AWG	0.813 mm	0.032 in	80 °C	-20 ░C	Slate	Copper Tinned	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	Braid Foil	UL Style 2464	Multi-Pair	300 VDC	Poly-Vinyl Chloride (PVC)	7	32 AWG	6.25 mm	0.246 in	Drain Wire
