NHD-240128 Series

Catalog

LCD MOD GRAPH 240X128 WH TRANSFL

Part	Dot Size [z]	Dot Size [y]	Dot Pitch [y]	Dot Pitch [x]	Graphics Color	Graphics Color	Interface	Background Color	Display Mode	Dot Pixels [y]	Dot Pixels [x]	Viewing Area [x]	Viewing Area [y]	Display Type	Controller Type	Backlight	Dot Size [x]	Dot Size [custom]	Dot Size [custom]	Background Color	Viewing Area [z]
Newhaven Display Intl NHD-240128WG-BTGH-VZ#	0.43 mm	0.43 mm	0.45 mm	0.45 mm	Blue	Gray - Inverted	8-Bit Parallel	Gray (Blue - Inverted)	Transflective	128	240	114 mm	64 mm	STN - Super-Twisted Nematic	RA6963	LED - White

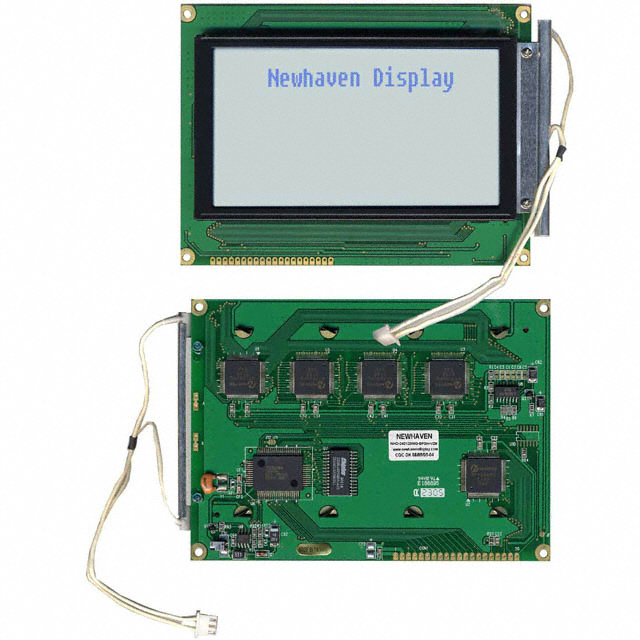

Newhaven Display Intl NHD-240128WG-BFGH-VZ#-C	0.43 mm	0.43 mm	0.45 mm	0.45 mm			8-Bit Parallel		Transflective	128	240	114 mm	64 mm	STN - Super-Twisted Nematic	RA6963	CCFL

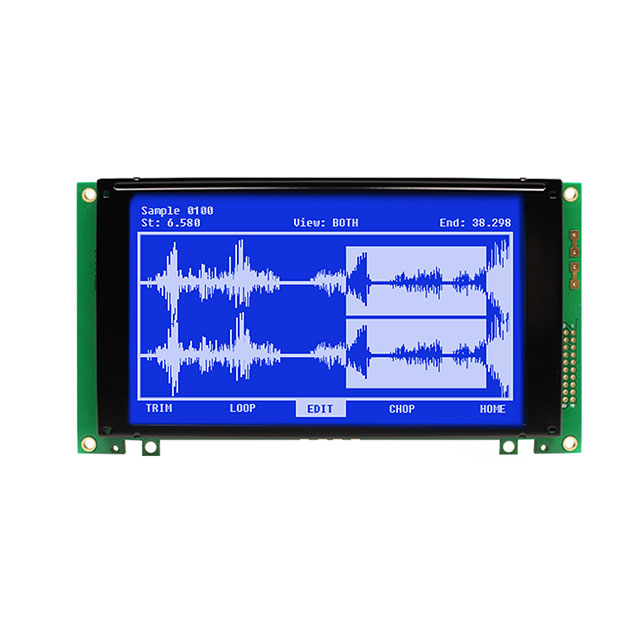

Newhaven Display Intl NHD-240128WG-ATMI-VZ#		0.47 mm	0.5 mm	0.5 mm	White	Blue	8-Bit Parallel	Blue	Transmissive	128	240	128 mm	74 mm	STN - Super-Twisted Nematic	RA6963	LED - White	0.47 mm

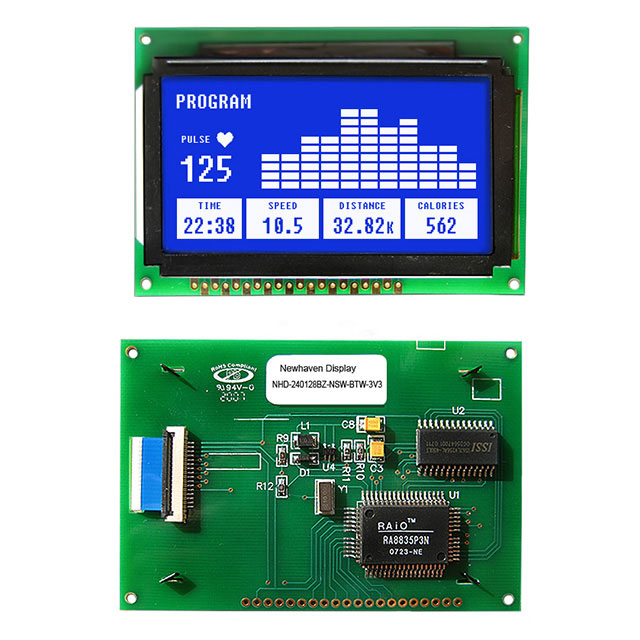

Newhaven Display Intl NHD-240128BZ-NSW-BTW-3V3			0.27 mm	0.27 mm	White		8-Bit Parallel	Blue	Transmissive	128	240	72 mm	40 mm	STN - Super-Twisted Nematic		LED - White		0.25 mm	0.25 mm

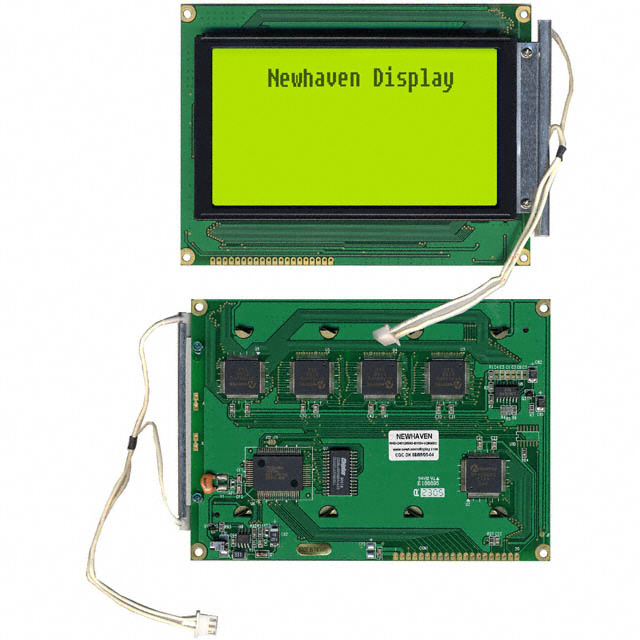

Newhaven Display Intl NHD-240128WG-BYGH-VZ#000C	0.43 mm	0.43 mm	0.45 mm	0.45 mm	Black (Green - Inverted)		8-Bit Parallel	Green (Black - Inverted)	Transflective	128	240	114 mm	64 mm	STN - Super-Twisted Nematic	RA6963

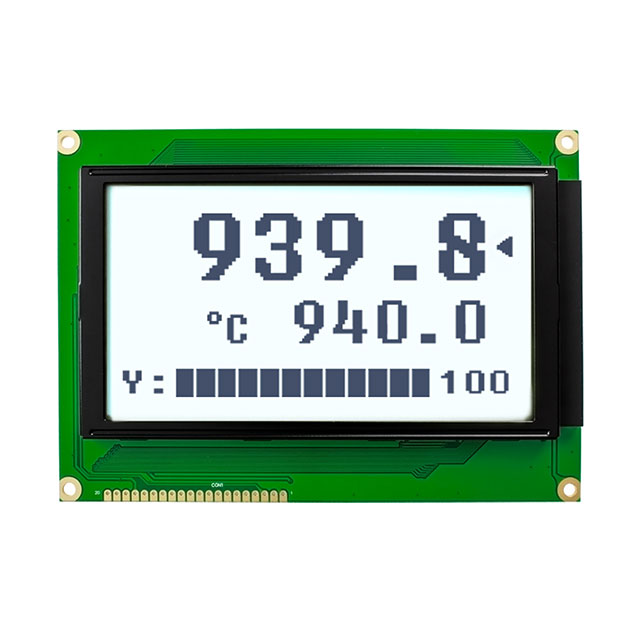

Newhaven Display Intl NHD-240128WG-BTFH-VZ#	0.43 mm	0.43 mm	0.45 mm	0.45 mm	Black White - Inverted		8-Bit Parallel	White	Transflective	128	240	114 mm	64 mm	FSTN - Film Super-Twisted Nematic	RA6963	LED - White				Black

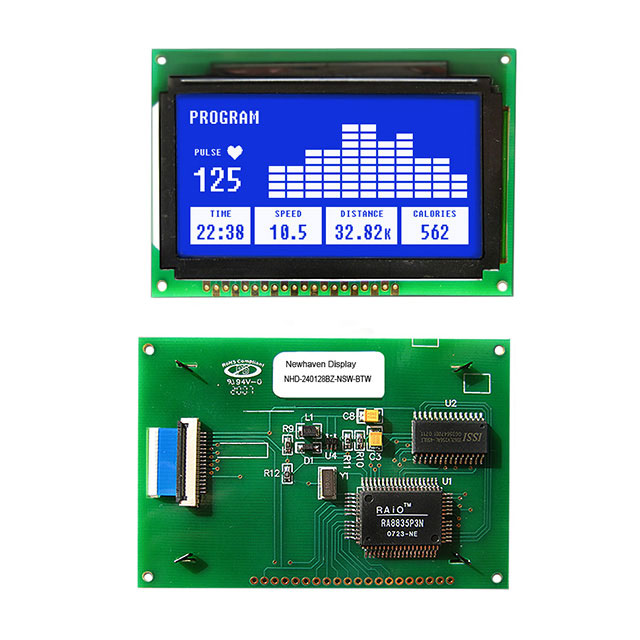

Newhaven Display Intl NHD-240128BZ-NSW-BTW			0.27 mm	0.27 mm	White		8-Bit Parallel	Blue	Transmissive	128	240	72 mm	40 mm	STN - Super-Twisted Nematic		LED - White		0.25 mm	0.25 mm

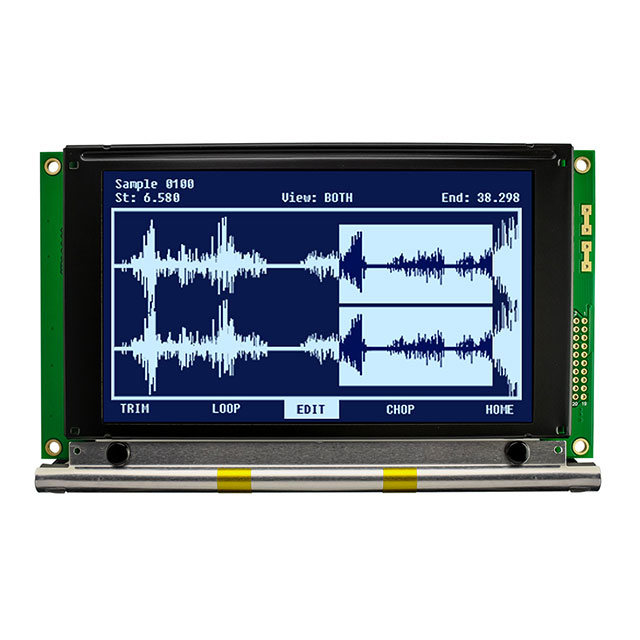

Newhaven Display Intl NHD-240128WG-AFTI-VZ#C5		0.47 mm	0.5 mm	0.5 mm			8-Bit Parallel		Transmissive	128	240		129 mm	FSTN - Film Super-Twisted Nematic	RA6963	CCFL	0.47 mm				75 mm

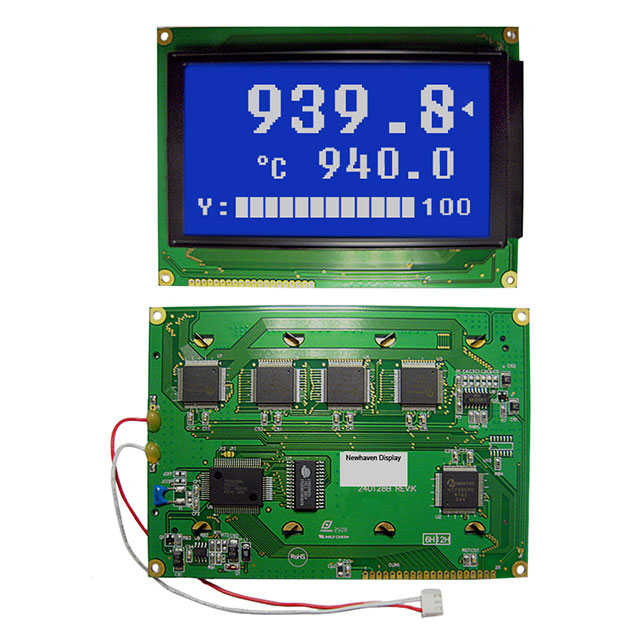

Newhaven Display Intl NHD-240128WG-BTML-VZ#	0.43 mm	0.43 mm	0.45 mm	0.45 mm	White	Blue	8-Bit Parallel	Blue	Transmissive	128	240	114 mm	64 mm	STN - Super-Twisted Nematic	RA6963	LED - White

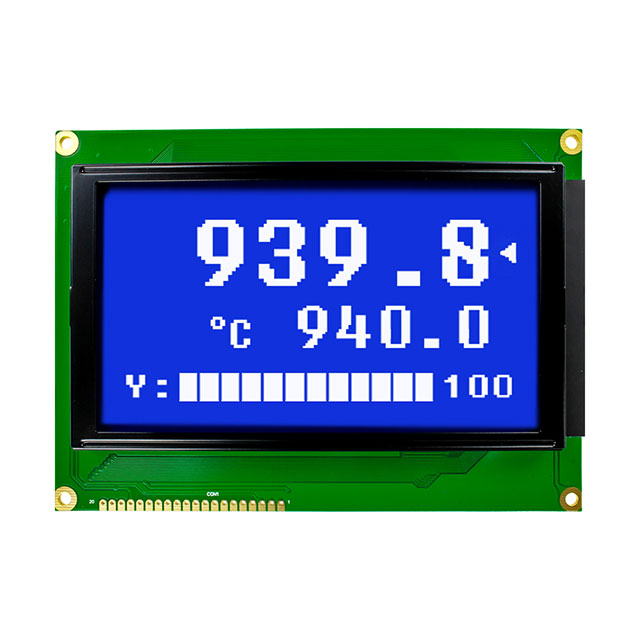

Newhaven Display Intl NHD-240128WG-BTMI-VZ#	0.43 mm	0.43 mm	0.45 mm	0.45 mm	White	Blue	8-Bit Parallel	Blue	Transmissive	128	240	114 mm	64 mm	STN - Super-Twisted Nematic	RA6963	LED - White
