19370241 Series
Manufacturer: HARTING
Beta
⌘K

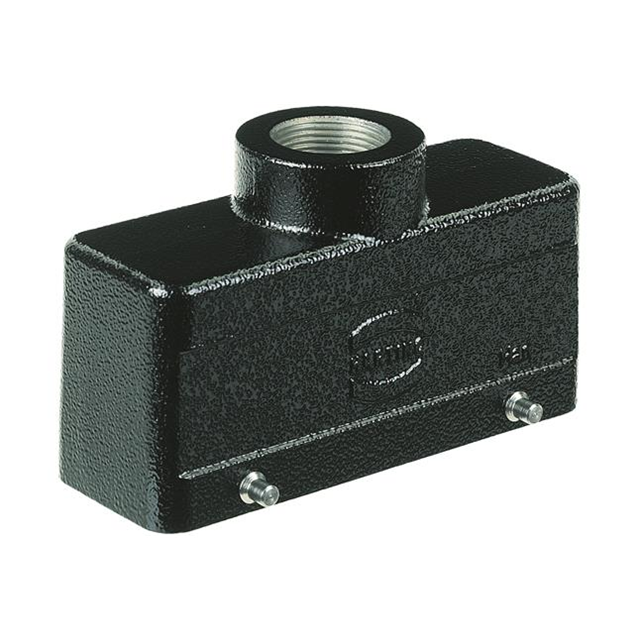

ENCLOSURE FOR CONNECTORS: HDC; SIZE 24B; FOR CABLE; HAN® M; M25
| Part | Connector Type | Housing Finish | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Style | Size | Lock Location | Thread Size | Ingress Protection | Housing Color | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 HARTING | Hood | Powder Coated | Aluminum Die Cast | 125 °C | -40 C | Top Entry | 24 B | Locking Clip (2) on Base Bottom | M25 | IP65 - Dust Tight Water Resistant | Black | 2.165 " | 55 mm | 43 mm | 1.693 " | 4.724 in | 120 mm |
