51K607 Series
Manufacturer: Rosenberger
Beta
⌘K

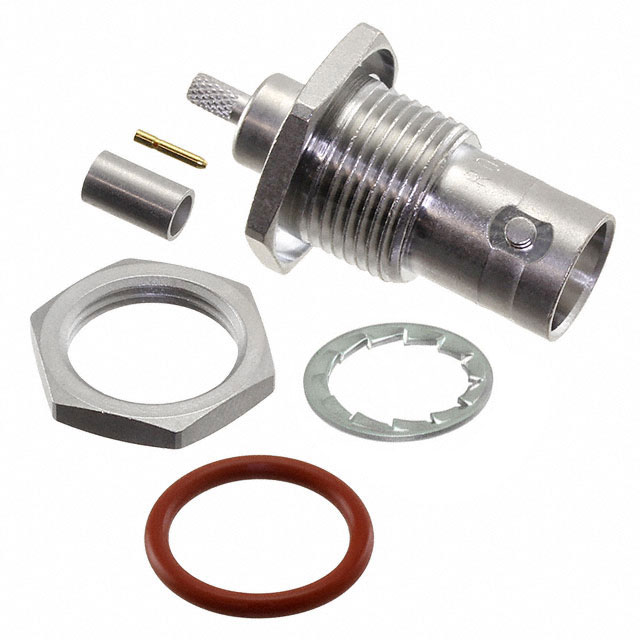

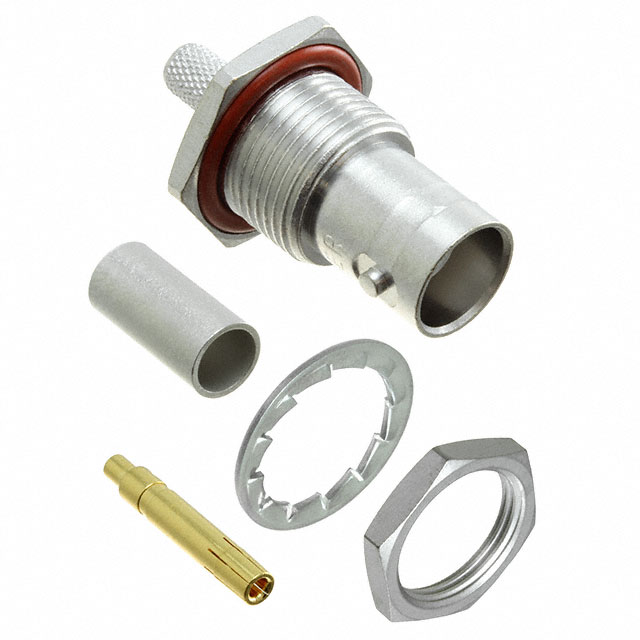

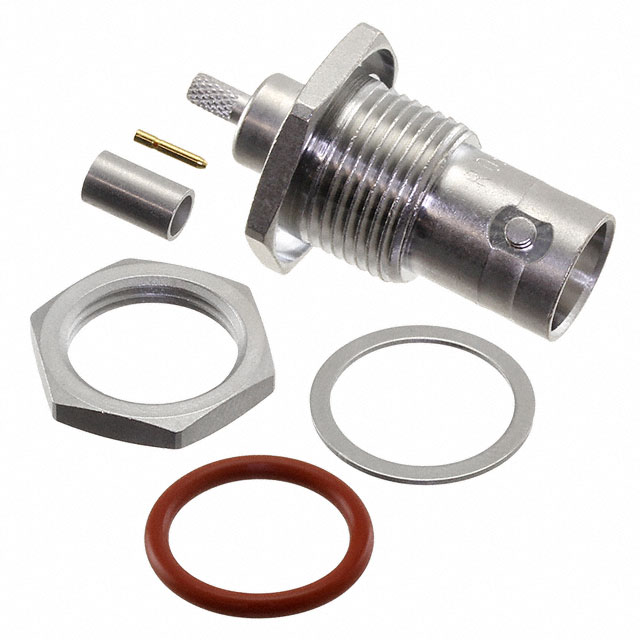

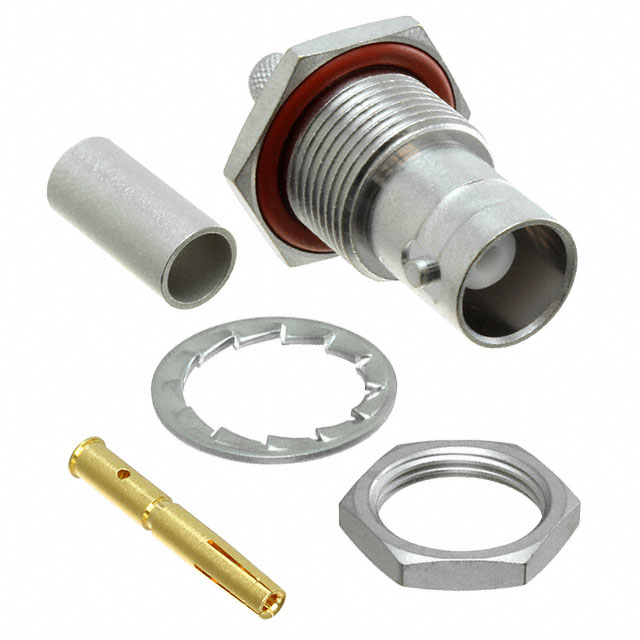

CONN BNC JACK STR 50OHM CRIMP
| Part | Mating Cycles | Operating Temperature [Max] | Operating Temperature [Min] | Includes | Body Finish | Voltage Rating | Dielectric Material | Body Material | Center Contact Plating | Center Contact Material | Mounting Type | Shield Termination | Impedance | Cable Group | Cable Group | Contact Termination | Connector Type | Frequency - Max [Max] | Connector Style | Number of Ports | Mounting Feature | Housing Color | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 500 | 155 C | -55 C | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | White Bronze | 400 V | Polytetrafluoroethylene (PTFE) | Brass | Gold | Beryllium Copper | Panel Mount | Crimp | 50 Ohms | 223 400 | RG-142B | Crimp | Female Socket Jack | 10 GHz | BNC | 1 | Bulkhead - Front Side Nut | Silver | Bayonet Lock |
 Rosenberger | 500 | 155 C | -55 C | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | White Bronze | 400 V | Polytetrafluoroethylene (PTFE) | Brass | Gold | Beryllium Copper | Panel Mount | Crimp | 50 Ohms | 188A 316 RG-174A | Crimp | Female Socket Jack | 10 GHz | BNC | 1 | Bulkhead - Front Side Nut | Silver | Bayonet Lock | |
 Rosenberger | 500 | 155 C | -55 C | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | White Bronze | 400 V | Polytetrafluoroethylene (PTFE) | Brass | Gold | Beryllium Copper | Panel Mount | Crimp | 50 Ohms | 196A RG-178B | Crimp | Female Socket Jack | 10 GHz | BNC | 1 | Bulkhead - Front Side Nut | Silver | Bayonet Lock | |
 Rosenberger | 500 | 155 C | -55 C | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | White Bronze | 400 V | Polytetrafluoroethylene (PTFE) | Brass | Gold | Beryllium Copper | Panel Mount | Crimp | 50 Ohms | 141 RG-58C | Crimp | Female Socket Jack | 10 GHz | BNC | 1 | Bulkhead - Front Side Nut | Silver | Bayonet Lock | |
 Rosenberger | 500 | 155 C | -55 C | White Bronze | 400 V | Polytetrafluoroethylene (PTFE) | Brass | Gold | Beryllium Copper | Panel Mount | Crimp | 50 Ohms | RG-316 | Crimp | Female Socket Jack | 10 GHz | BNC | 1 | Bulkhead - Rear Side Nut | Silver | Bayonet Lock |
