796636 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
TERM BLOCK HDR 20POS VERT 5.08MM
| Part | Insulation Height | Insulation Height | Contact Material | Material Flammability Rating | Contact Tail Length | Contact Tail Length | Header Orientation | Positions Per Level | Voltage - UL | Pitch | Pitch | Number of Levels | Contact Mating Finish | Color | Type | Mounting Type | Number of Positions | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 20 | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 20 | Solder | -40 C | 110 °C | |
 TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 15 | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 15 | Solder | -40 C | 110 °C | |

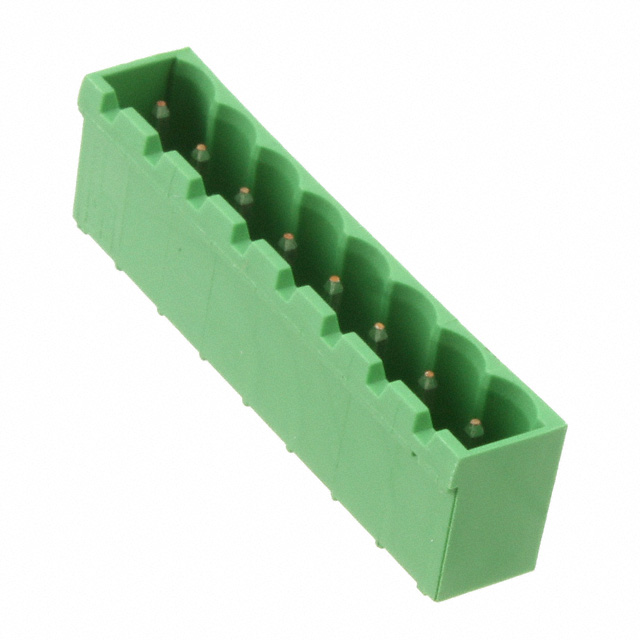

 TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 8 | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 8 | Solder | -40 C | 110 °C | |

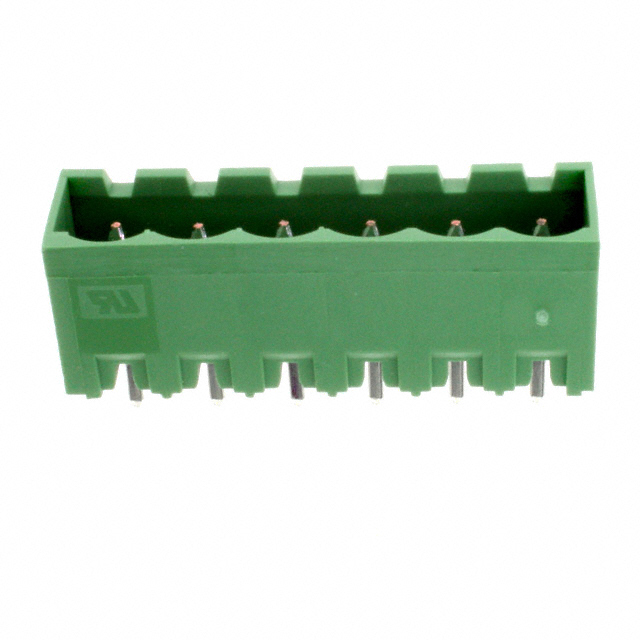

 TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 6 | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 6 | Solder | -40 C | 110 °C | |
TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 19 | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 19 | Solder | -40 C | 110 °C | |

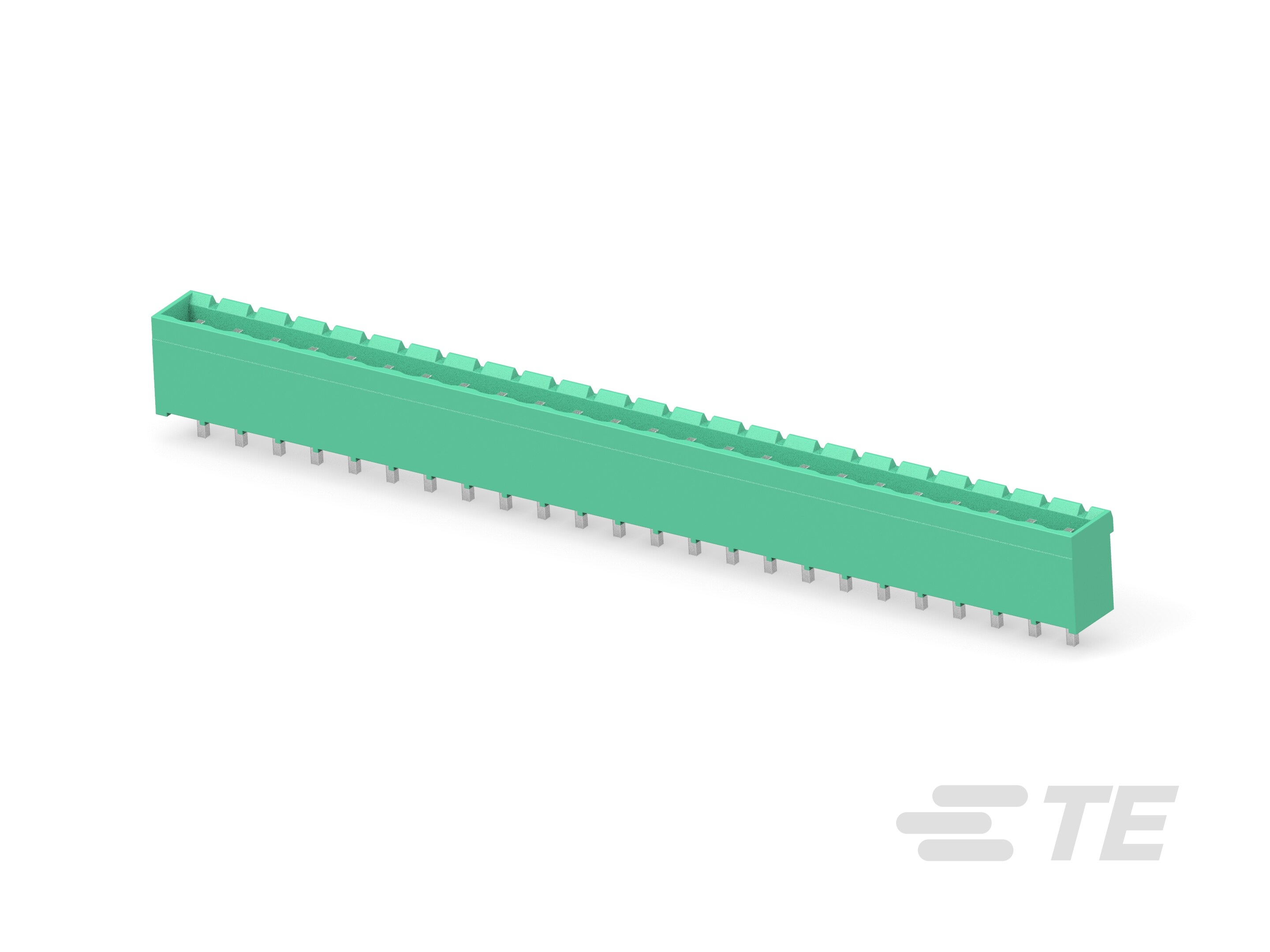

 TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 24 | Solder | -40 C | 110 °C | 24 | |

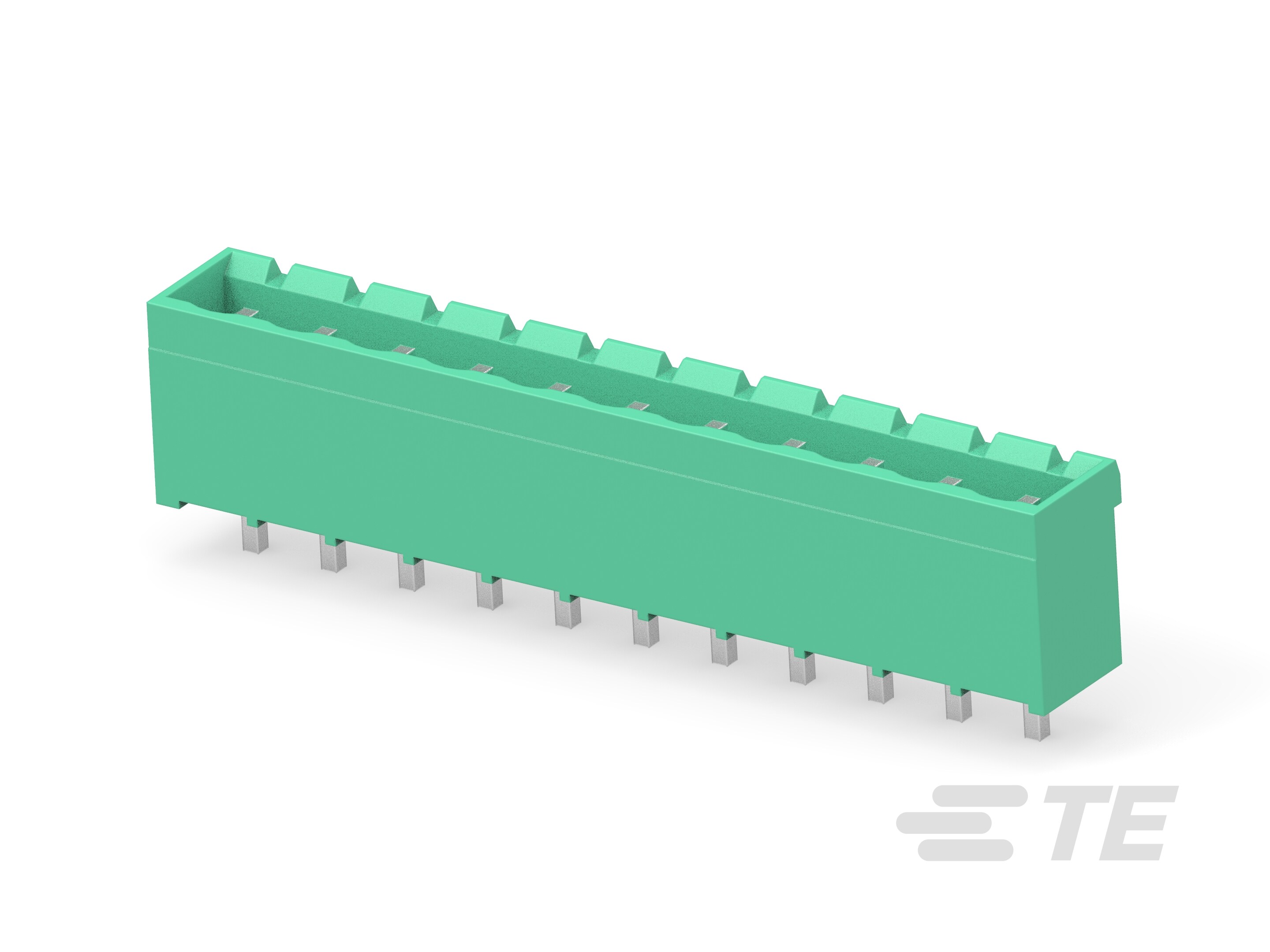

 TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 11 | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 11 | Solder | -40 C | 110 °C | |

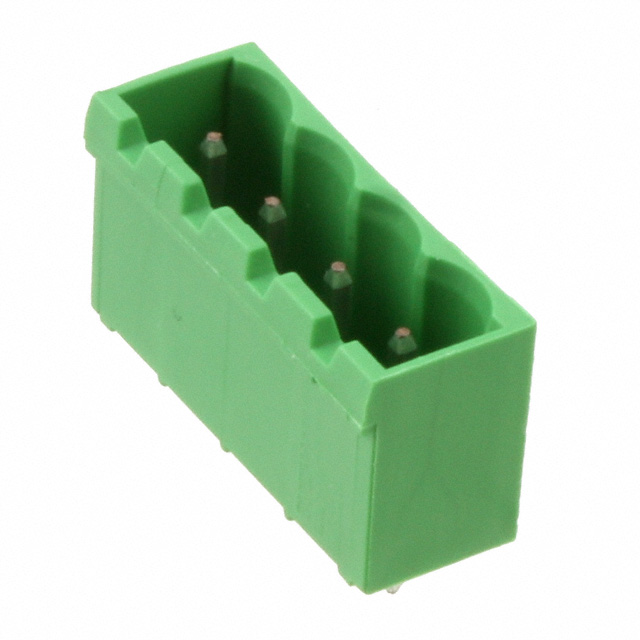

 TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 4 | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 4 | Solder | -40 C | 110 °C | |

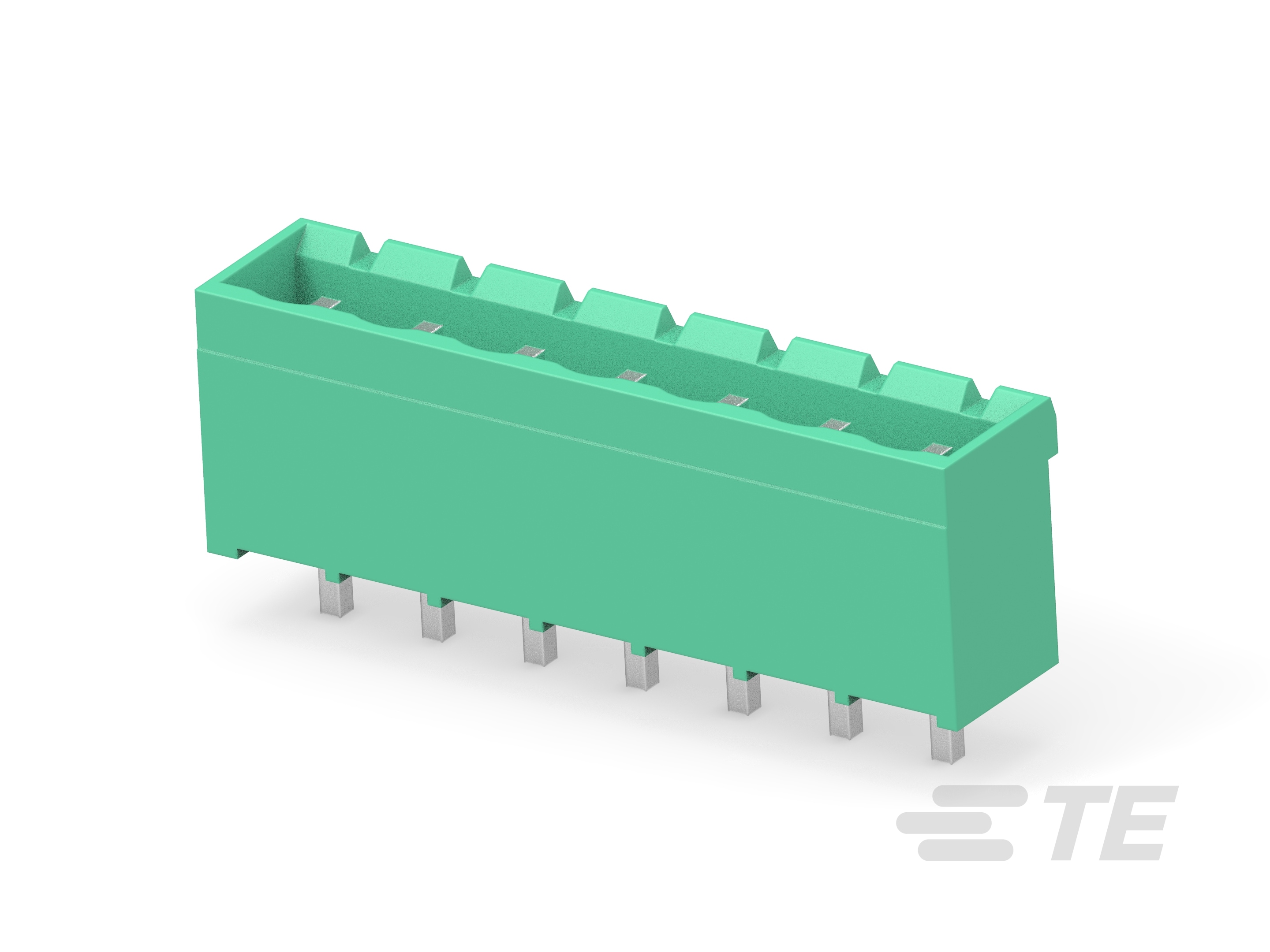

 TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 7 | Solder | -40 C | 110 °C | 7 | |
TE Connectivity AMP Connectors | 0.472 " | 12 mm | Copper Alloy | UL94 V-0 | 0.138 in | 3.5 mm | Vertical | 13 | 300 V | 5.08 mm | 0.2 in | 1 | Tin | Green | Header Male Pins Shrouded (4 Side) | Through Hole | 13 | Solder | -40 C | 110 °C |
