1896/10C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

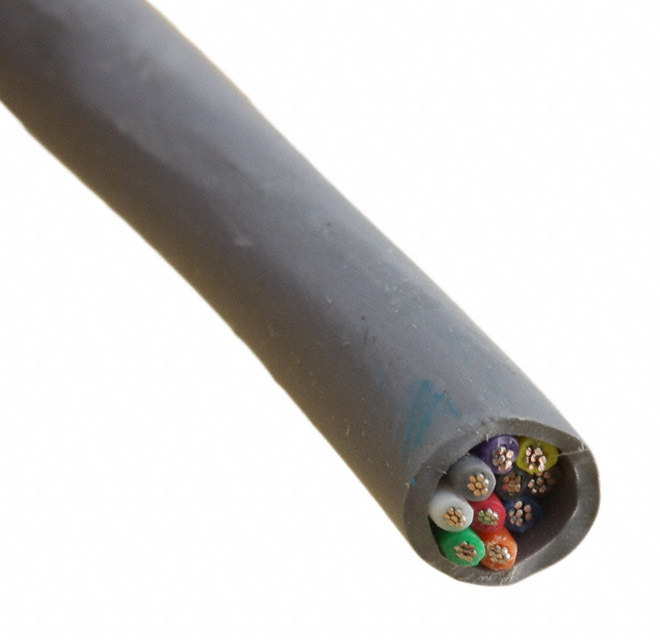

CABLE 10COND 20AWG SLATE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Conductor Insulation | Number of Conductors [custom] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Voltage | Cable Type | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 80 °C | -20 ░C | Slate | Poly-Vinyl Chloride (PVC) | 10 | 28 AWG | 7 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Communication Control | 0.32 in | 8.13 mm | 20 AWG | 300 VDC | Multi-Conductor | 152.4 m | 500 ft | ||
ALPHA WIRE | 80 °C | -20 ░C | Slate | Poly-Vinyl Chloride (PVC) | 10 | 28 AWG | 7 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Communication Control | 0.32 in | 8.13 mm | 20 AWG | 300 VDC | Multi-Conductor | 100 ft | 30.5 m | ||
 ALPHA WIRE | 80 °C | -20 ░C | Slate | Poly-Vinyl Chloride (PVC) | 10 | 28 AWG | 7 | Copper Tinned | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Communication Control | 0.32 in | 8.13 mm | 20 AWG | 300 VDC | Multi-Conductor | 304.8 m | 1000 ft |
