896-007 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 7POS 0.125
| Part | Material - Insulation | Termination Rows | Mounting Type | Number of Rows | Flange Feature | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Gender | Contact Finish | Card Type | Contact Finish Thickness | Contact Finish Thickness | Termination | Pitch | Pitch | Read Out | Contact Type | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

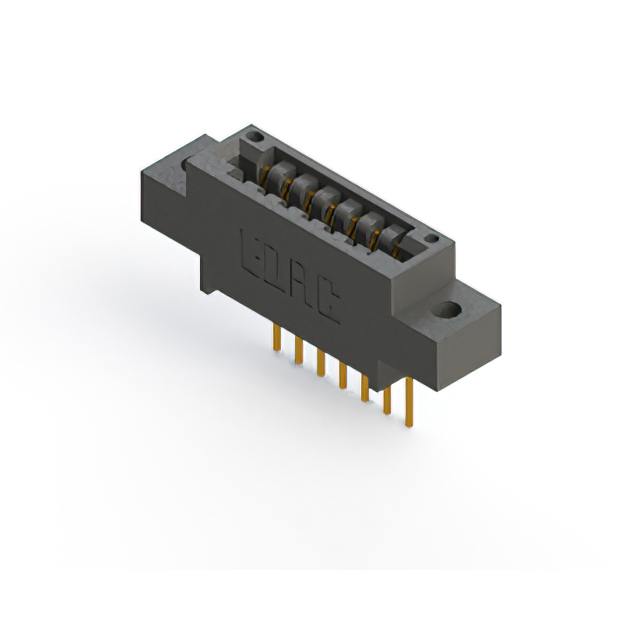

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | 1 | 4-40 Threaded Insert Top Mount Opening | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Wire Wrap | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | 1 | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Wire Wrap | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | 1 | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Solder | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy | 3.25 mm | 0.128 " | |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | 1 | Flush Mount Top Opening Unthreaded | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Solder | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy | 3.25 mm | 0.128 " |

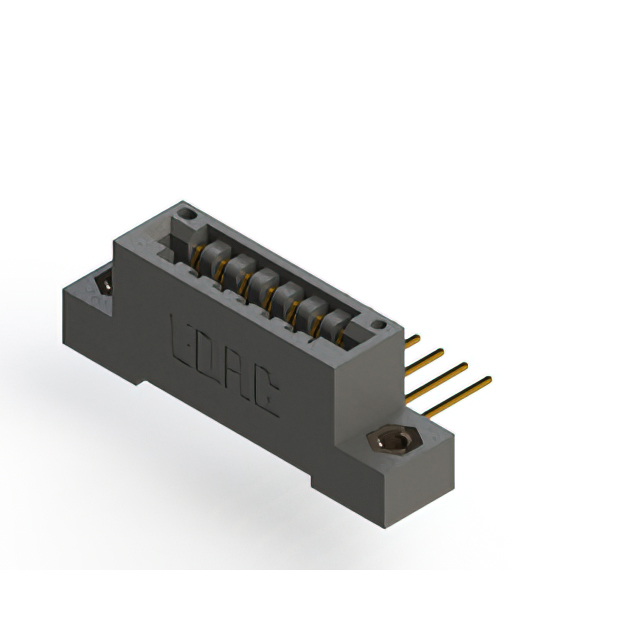

 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Right Angle Through Hole | 1 | Flush Mount M3 Threaded Insert Top Opening | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Solder | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy | ||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | 1 | Floating Bobbin Top Mount Opening | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Solder | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy | 2.95 mm | 0.116 " |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | 1 | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | 1 | Flush Mount Top Opening Unthreaded | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Solder | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy | 3.25 mm | 0.128 " |
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | 1 | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Solder | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy | |||
 EDAC Inc. | Polyphenylene Sulfide (PPS) | 1 | Through Hole | 1 | 4-40 Threaded Insert Top Mount Opening | 7 | 125 °C | -40 C | Black | 7 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Female | Gold | Non Specified - Single Edge | 0.25 Ám | 10 Áin | Solder | 3.18 mm | 0.125 in | Single | Cantilever | Copper Alloy |
