430165 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

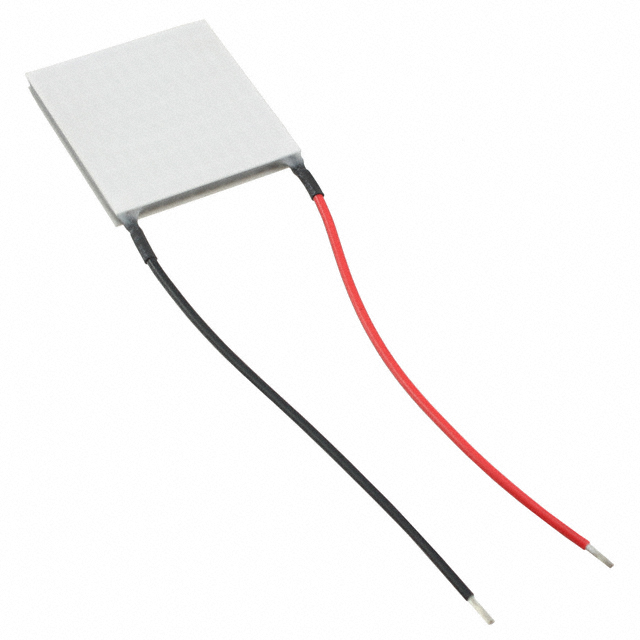

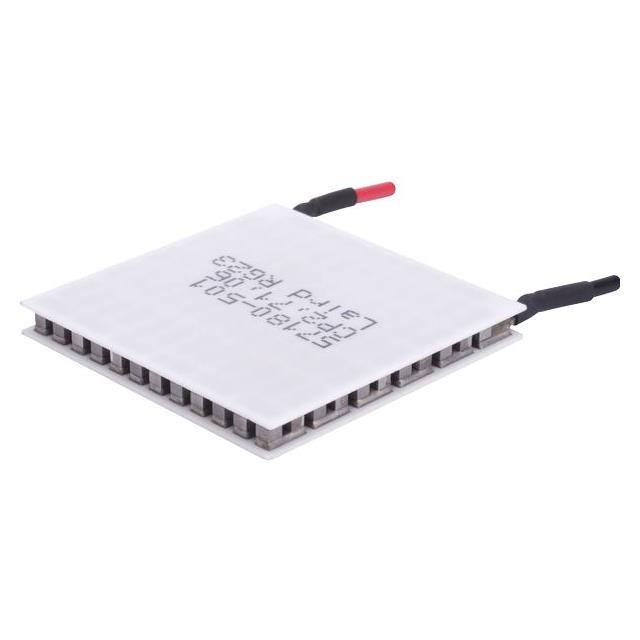

PELTIER CP2,71,06,L1,RT,W4.5
| Part | Delta Tmax @ Th | Current - Max [Max] | Voltage - Max [Max] | Number of Stages | Features | Resistance | Size / Dimension [x] | Size / Dimension [y] | Qmax @ Th | Height [z] | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 67 °C | 14.3 A | 8.1 V | 1 | Lead Wires Sealed - Silicone RTV | 530 mOhms | 43.94 mm | 43.94 mm | 68.4 W | 4.57 mm | 80 °C | |
Laird Thermal Systems, Inc. | 67 °C | 14.3 A | 8.1 V | 1 | Lead Wires Sealed - Epoxy | 530 mOhms | 43.9 mm | 43.9 mm | 68.4 W | 4.57 mm | 80 °C | Square |
