OSTVN10 Series

Catalog

TERM BLK 10P SIDE ENT 2.54MM PCB

Part	Positions Per Level	Mating Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Screw Thread	Number of Levels	Pitch [x]	Pitch [x]	Wire Termination	Clamp Material - Plating	Current	Screw Material - Plating	Torque - Screw	Torque - Screw	Voltage	Mounting Type	Contact Material - Plating [custom]	Housing Material	Color

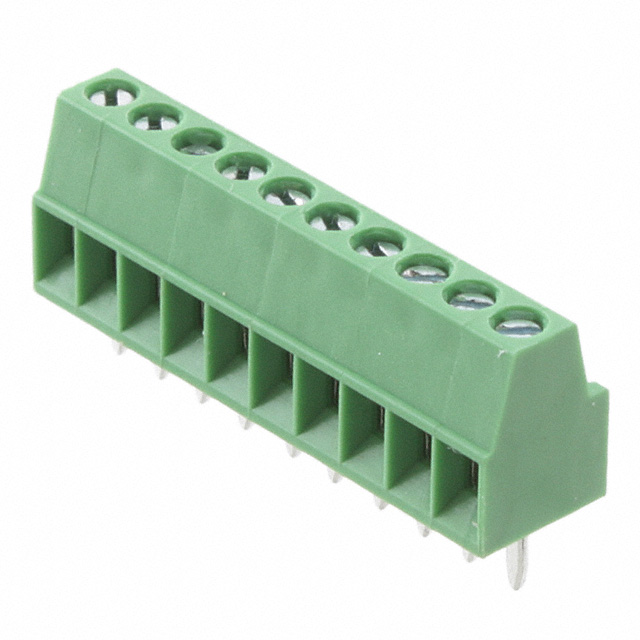

On Shore Technology Inc. OSTVN10A150	10	Horizontal with Board	-30 ░C	105 ░C	M1.6	1	2.54 mm	0.1 in	Screw - Rising Cage Clamp	Brass	6 A	Steel Zinc Plated	0.15 Nm	1.3 Lb-In	150 V	Through Hole	Brass	Thermoplastic	Green
