110-B Series

Catalog

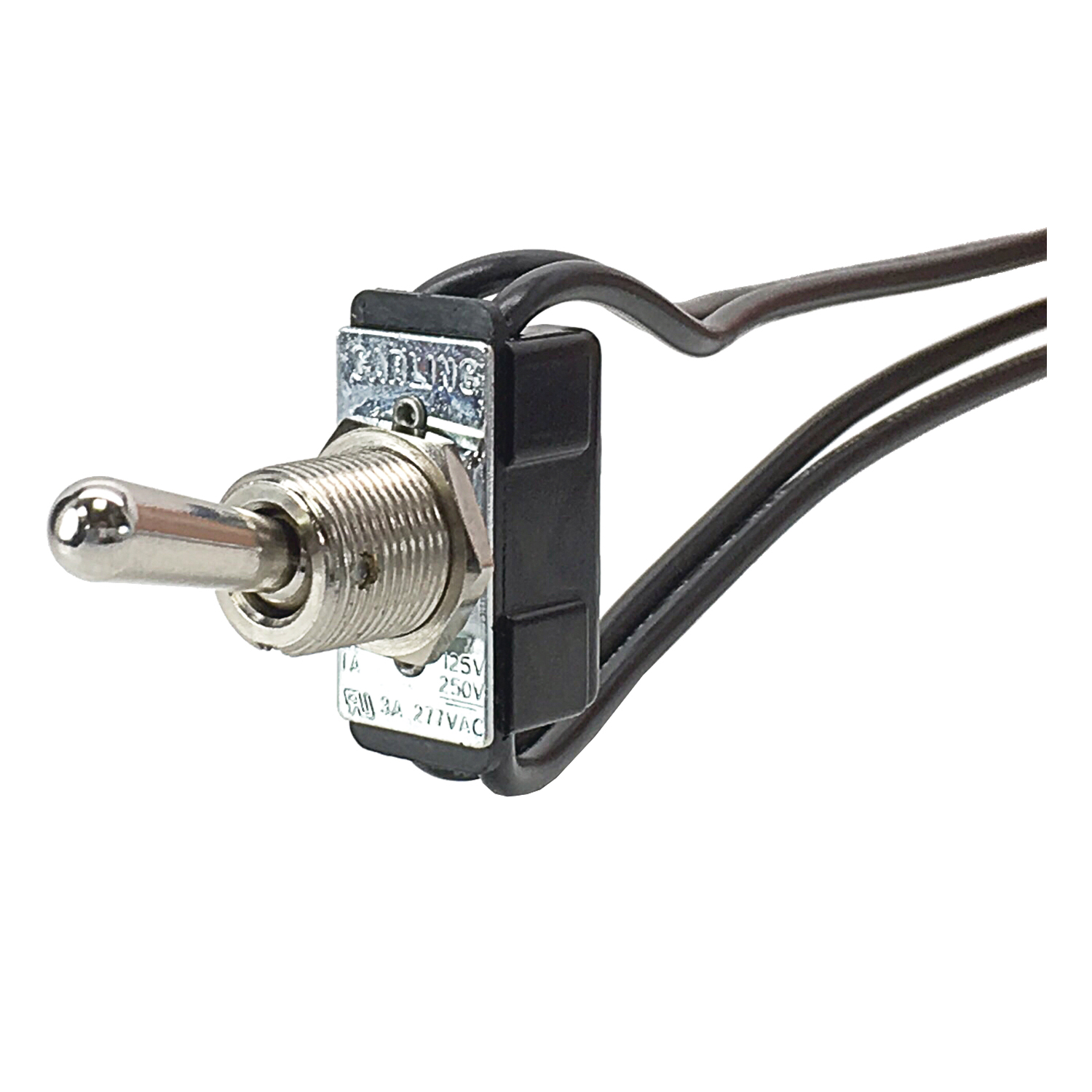

SWITCH TOGGLE SPST 6A 125V

Part	Electrical Life	Illumination	Switch Function	Mounting Type	Actuator Type	Termination Style	Voltage Rating - AC	Circuit	Panel Cutout Dimensions [diameter]	Bushing Thread	Current Rating (Amps)	Actuator Length [x]	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]
Carling Technologies 110-B-63	25000 Steps	Non-Illuminated	On-Off	Panel Mount	Standard Round	Solder Lug	125 V	SPST	12.7 mm	15/32-32	6 A	0.5 in	125 VDC	-17.8 °C	65.6 °C
Carling Technologies 110-B-52	25000 Steps	Non-Illuminated	On-Off	Panel Mount	Standard Round	Solder Lug	125 V	SPST	12.7 mm	15/32-32	6 A	9.53 mm	125 VDC	-17.8 °C	65.6 °C
Carling Technologies 110-B-25	25000 Steps	Non-Illuminated	On-Off	Panel Mount	Standard Round	Solder Lug	125 V	SPST	12.7 mm	15/32-32	6 A	9.53 mm	125 VDC	-17.8 °C	65.6 °C
Carling Technologies 110-B-68	25000 Steps	Non-Illuminated	On-Off	Panel Mount	Standard Round	Solder Lug	125 V	SPST	12.7 mm	15/32-32	6 A	0.5 in	125 VDC	-17.8 °C	65.6 °C
Carling Technologies 110-B-22	25000 Steps	Non-Illuminated	On-Off	Panel Mount	Standard Round	Solder Lug	125 V	SPST	12.7 mm	15/32-32	6 A	9.53 mm	125 VDC	-17.8 °C	65.6 °C
Carling Technologies 110-B-78	25000 Steps	Non-Illuminated	On-Off	Panel Mount	Standard Round	Solder Lug	125 V	SPST	12.7 mm	15/32-32	6 A	17.45 mm	125 VDC	-17.8 °C	65.6 °C
Carling Technologies 110-B-73	25000 Steps	Non-Illuminated	On-Off	Panel Mount	Standard Round	Solder Lug	125 V	SPST	12.7 mm	15/32-32	6 A	17.45 mm	125 VDC	-17.8 °C	65.6 °C
Carling Technologies 110-B-67	25000 Steps	Non-Illuminated	On-Off	Panel Mount	Standard Round	Solder Lug	125 V	SPST	12.7 mm	15/32-32	6 A	0.5 in	125 VDC	-17.8 °C	65.6 °C
Carling Technologies 110-B-21	25000 Steps	Non-Illuminated	On-Off	Panel Mount	Standard Round	Solder Lug	125 V	SPST	12.7 mm	15/32-32	6 A	9.53 mm	125 VDC	-17.8 °C	65.6 °C
