MPX1D1040 Series

Manufacturer: KEMET

Catalog

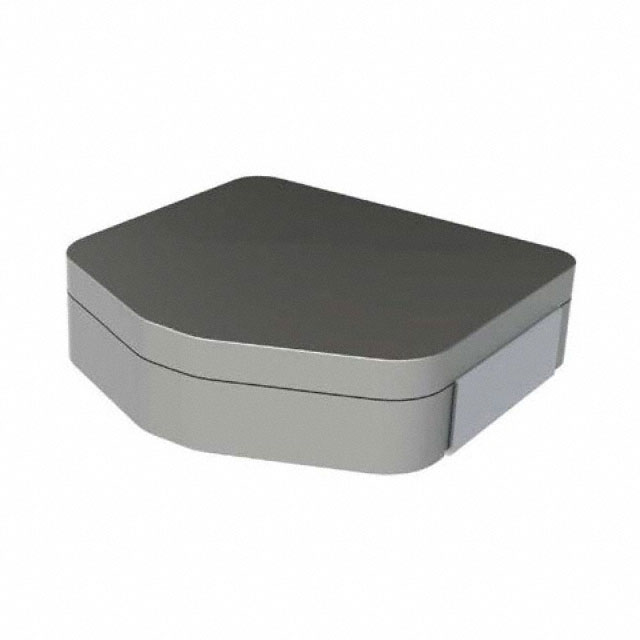

POWER INDUCTOR (SMD), 680 NH, 23.1 A, SHIELDED, 23 A, MPX SERIES

Part	Current Rating (Amps)	Tolerance	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Material - Core	Inductance	Package / Case	Height - Seated (Max)	Height - Seated (Max) [Max]	Shielding	Current - Saturation (Isat)	Frequency - Self Resonant	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Type	DC Resistance (DCR)
KEMET MPX1D1040LR68	23.1 A	20 %	Surface Mount	155 C	-55 C	100 kHz	3.2 mOhm	Metal Composite	0.68 µH	Nonstandard	4 mm	0.157 in	Shielded	34.5 A	47 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound
KEMET MPX1D1040L3R3	11.4 A	20 %	Surface Mount	155 C	-55 C	100 kHz		Metal Composite	3.3 µH	Nonstandard	4 mm	0.157 in	Shielded	15 A	18 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound	12.8 mOhm
KEMET MPX1D1040L470	3 A	20 %	Surface Mount	155 C	-55 C	100 kHz	182.6 mOhm	Metal Composite	47 µH	Nonstandard	4 mm	0.157 in	Shielded	4 A	4.5 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound
KEMET MPX1D1040L100	7 A	20 %	Surface Mount	155 C	-55 C	100 kHz		Metal Composite	10 µH	Nonstandard	4 mm	0.157 in	Shielded	10.5 A	11 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound	34.1 mOhm
KEMET MPX1D1040L150	5.7 A	20 %	Surface Mount	155 C	-55 C	100 kHz		Metal Composite	15 µH	Nonstandard	4 mm	0.157 in	Shielded	8.5 A	8 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound
KEMET MPX1D1040LR33	29.7 A	20 %	Surface Mount	155 C	-55 C	100 kHz	1.9 mOhm	Metal Composite	330 nH	Nonstandard	4 mm	0.157 in	Shielded	47 A	75 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound
KEMET MPX1D1040L1R5	17.7 A	20 %	Surface Mount	155 C	-55 C	100 kHz	5.4 mOhm	Metal Composite	1.5 µH	Nonstandard	4 mm	0.157 in	Shielded	26 A	30 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound
KEMET MPX1D1040L220	4.7 A	20 %	Surface Mount	155 C	-55 C	100 kHz	76.1 mOhm	Metal Composite	22 µH	Nonstandard	4 mm	0.157 in	Shielded	7 A	7 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound
KEMET MPX1D1040L2R2	14.6 A	20 %	Surface Mount	155 C	-55 C	100 kHz	7.9 mOhm	Metal Composite	2.2 µH	Nonstandard	4 mm	0.157 in	Shielded	18.5 A	23 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound
KEMET MPX1D1040LR47	26.4 A	20 %	Surface Mount	155 C	-55 C	100 kHz	2.4 mOhm	Metal Composite	470 nH	Nonstandard	4 mm	0.157 in	Shielded	42 A	65 MHz	0.425 in	10.8 mm	10 mm	0.394 in	Drum Core Wirewound
